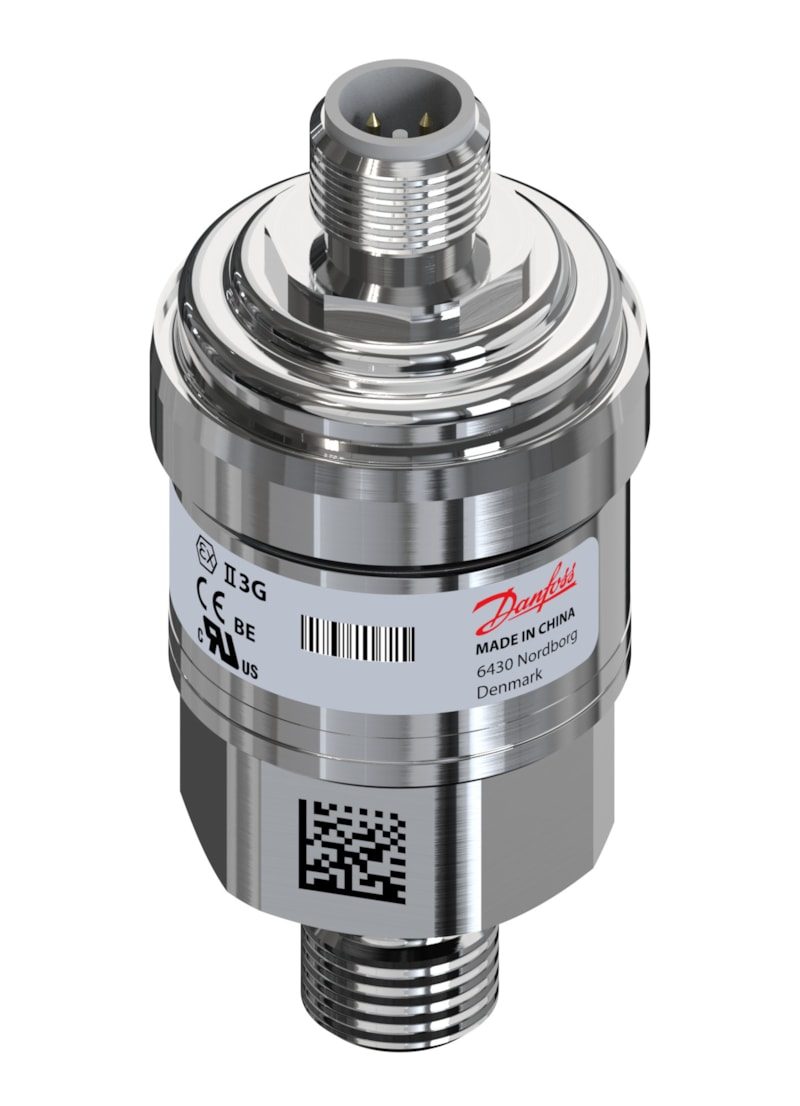

Danfoss MBS 3050 Pressure Transmitter 0-400 bar 0-10 V M12 (060G6635)
Danfoss · Sensors & Instrumentation · Pressure Transmitters
Danfoss MBS 3050 pressure transmitter, genuine OEM code 060G6635. Measuring range 0 to 400 bar (0 to 5800 psi), 0-10 V output, AISI 316L stainless steel wetted parts. G 1/4 male (DIN 3852-E, ISO 1179-2 Form E) pressure connection; M12 x 1 male (4-pin, IEC 61076-2-101). Reference sealed gauge, enclosure IP67. CE; UL Recognized; C UL US. P/N 060G6635; EAN 5702428998307.
Specifications
- Part number
- 060G6635
- HS code
- 9026.20
- Material
- AISI 316L stainless steel wetted parts
- Pressure rating
- 0 to 400 bar (0 to 5800 psi)
- Temperature range
- -40 to +85 C (medium)
- IP rating
- IP67
- Thread standard
- G 1/4 male (DIN 3852-E, ISO 1179-2 Form E)
Compatibility
MBS 3050 transmitter, 0-400 bar sealed gauge, 0-10 V voltage output, G1/4 Form E port with M12 4-pin.
Standards
- IEC 61326
- IEC 61298-2
- IEC 60770
- EN 61326-1
