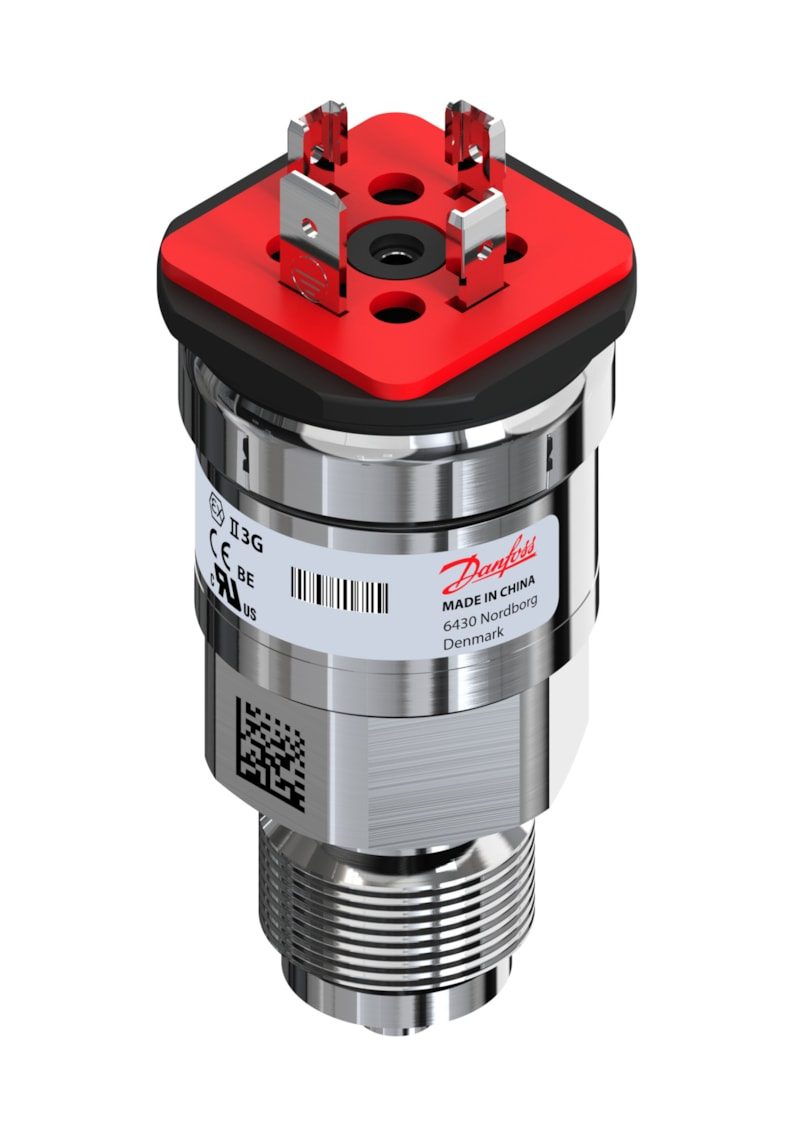

Danfoss MBS 3000 Pressure Transmitter 0-1.6 bar Absolute G1/2 (060G6628)
Danfoss · Sensors & Instrumentation · Pressure Transmitters
Danfoss MBS 3000 pressure transmitter, genuine OEM code 060G6628. Measuring range 0 to 1.6 bar (0 to 23.2 psi), 4-20 mA (2-wire) output, AISI 316L stainless steel wetted parts. G 1/2 male (EN 837), 27 mm hex pressure connection; Angular connector (EN 175301-803-A). Reference absolute, enclosure IP65. CE; UL Recognized; C UL US. P/N 060G6628; EAN 5702428997928.
Specifications
- Part number
- 060G6628
- HS code
- 9026.20
- Material
- AISI 316L stainless steel wetted parts
- Pressure rating
- 0 to 1.6 bar (0 to 23.2 psi)
- Temperature range
- -40 to +85 C (medium)
- IP rating
- IP65
- Thread standard
- G 1/2 male (EN 837), 27 mm hex
Compatibility
MBS 3000 transmitter, 0-1.6 bar absolute low range, G1/2 EN837 port with angular connector.
Standards
- IEC 61326
- IEC 61298-2
- IEC 60770
- EN 61326-1
