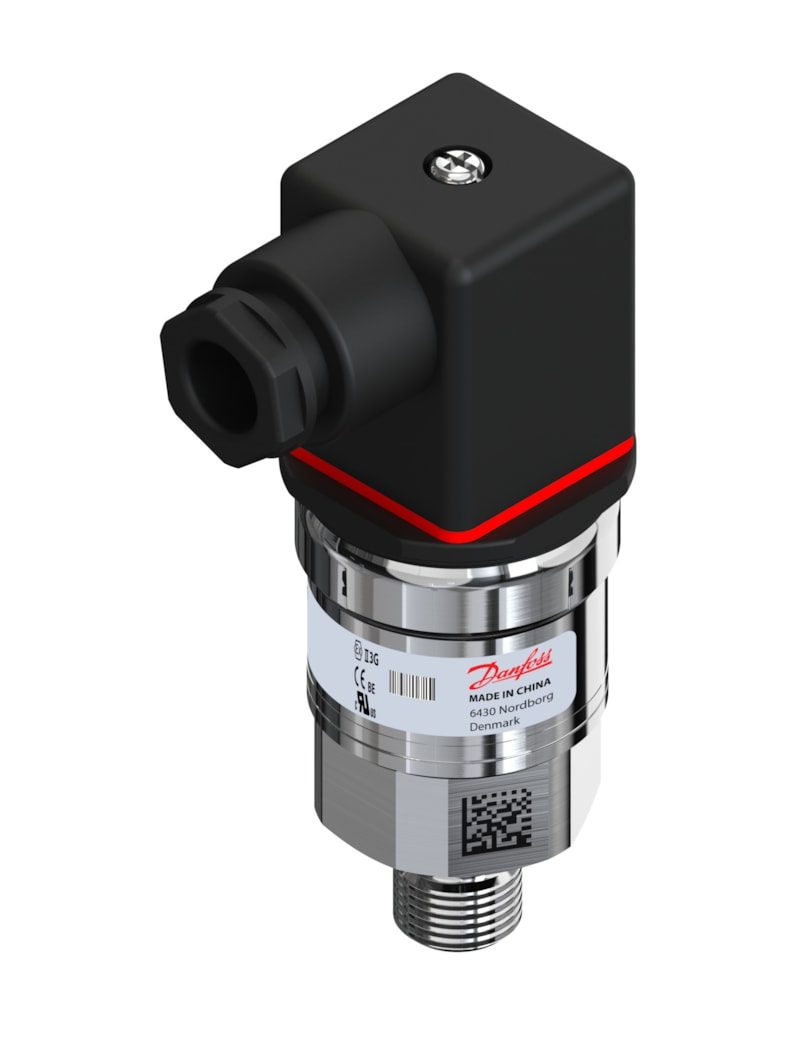

Danfoss MBS 3250 Pressure Transmitter 0-100 bar 0-10 V G1/4 (060G6622)
Danfoss · Sensors & Instrumentation · Pressure Transmitters
Danfoss MBS 3250 pressure transmitter, genuine OEM code 060G6622. Measuring range 0 to 100 bar (0 to 1450 psi), 0-10 V output, AISI 316L stainless steel wetted parts. G 1/4 male (DIN 3852-E, ISO 1179-2 Form E), 27 mm hex pressure connection; Angular connector (EN 175301-803-A, Pg 9). Reference sealed gauge, enclosure IP65. ATEX Ex ec IIA T4 Gc; CE; UL Recognized; C UL US. P/N 060G6622; EAN 5702428996464.
Specifications
- Part number
- 060G6622
- HS code
- 9026.20
- Material
- AISI 316L stainless steel wetted parts
- Pressure rating
- 0 to 100 bar (0 to 1450 psi)
- Temperature range
- -40 to +125 C (medium)
- IP rating
- IP65
- Thread standard
- G 1/4 male (DIN 3852-E, ISO 1179-2 Form E), 27 mm hex
Compatibility
MBS 3250 industrial transmitter, 0-100 bar sealed gauge, 0-10 V voltage output, G1/4 Form E port.
Standards
- IEC 61326
- IEC 61298-2
- IEC 60770
- EN 61326-1
