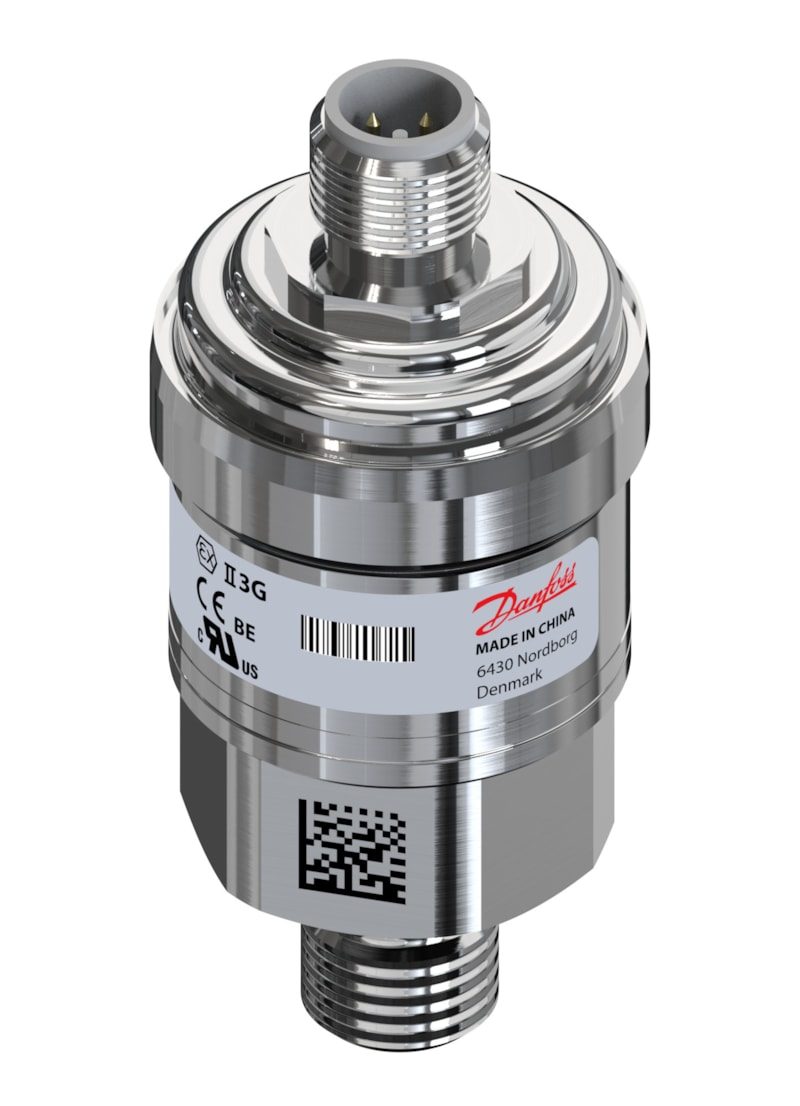

Danfoss MBS 3000 Pressure Transmitter -1 to 5 bar G1/4 M12 (060G6479)
Danfoss · Sensors & Instrumentation · Pressure Transmitters
Danfoss MBS 3000 pressure transmitter, genuine OEM code 060G6479. Measuring range -1 to 5 bar (-14.5 to 72.5 psi), 4-20 mA (2-wire) output, AISI 316L stainless steel wetted parts. G 1/4 male (ISO 1179-2, Form E) pressure connection; M12 x 1 male (4-pin, IEC 61076-2-101). Reference gauge, enclosure IP67. CE / UL / C UL US / EAC (GOST) / RoHS; EAN 5702428936910. P/N 060G6479.
Specifications
- Part number
- 060G6479
- HS code
- 9026.20
- Material
- AISI 316L stainless steel wetted parts
- Pressure rating
- -1 to 5 bar (-14.5 to 72.5 psi)
- Temperature range
- -40 to +125 C (medium)
- IP rating
- IP67
- Thread standard
- G 1/4 male (ISO 1179-2, Form E)
Compatibility
MBS 3000 compound transmitter, -1 to 5 bar, G1/4 Form E port with M12 4-pin connection.
Standards
- IEC 61326
- IEC 61298-2
- IEC 60770
- EN 61326-1
