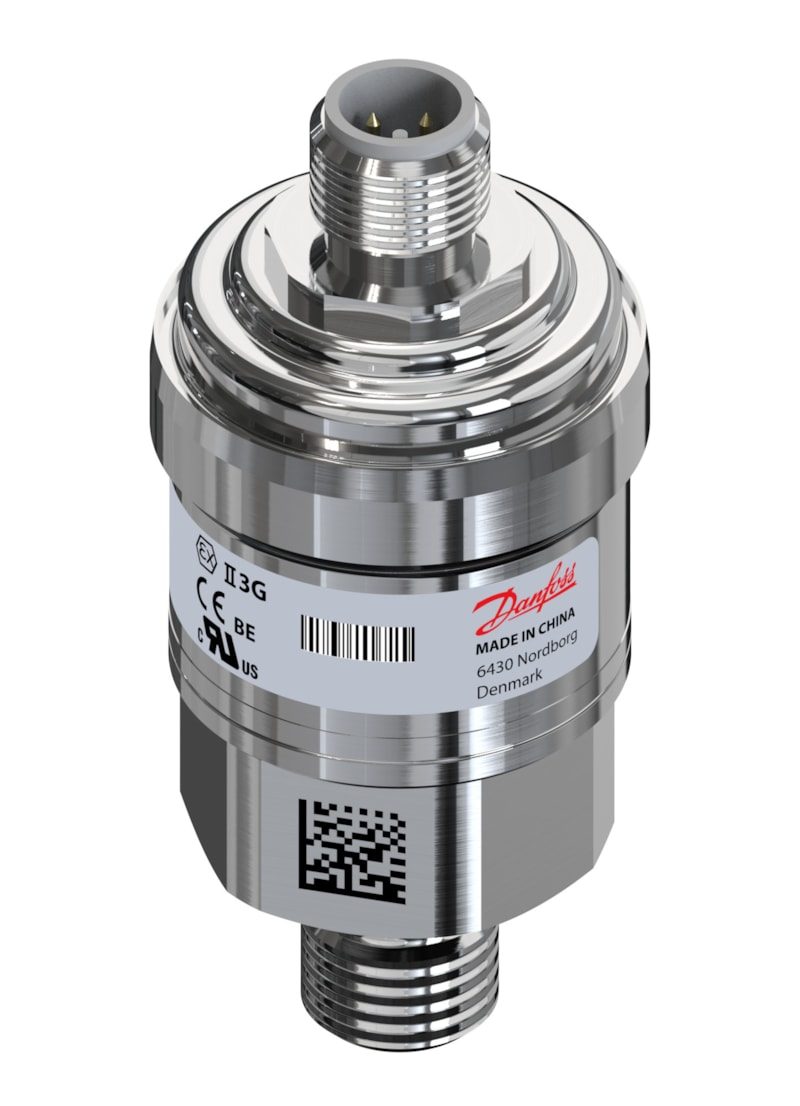

Danfoss MBS 3000 Pressure Transmitter -1 to 9 bar G1/4 M12 0-10V

Danfoss MBS 3000 pressure transmitter, genuine OEM code 060G6478. Measuring range -1 to 9 bar (-14.5 to 130.5 psi), 0-10 V DC (3-wire) output, AISI 316L stainless steel wetted parts. G 1/4 male (ISO 1179-2, Form E) pressure connection; M12 x 1 male (4-pin, IEC 61076-2-101). Reference gauge, enclosure IP67. CE / UL / C UL US / EAC (GOST) / RoHS; EAN 5702428934367.

Type

MBS 3000

Range

-1 to 9 bar (-14.5 to 130.5 psi)

Reference

gauge

Output

0-10 V DC (3-wire)

Supply

15-32 V DC

Wetted parts

AISI 316L stainless steel

Pressure connection

G 1/4 male (ISO 1179-2, Form E)

Electrical connection

M12 x 1 male (4-pin, IEC 61076-2-101)

Enclosure

IP67

Ambient temp

-40 to +85 C

Medium temp

-40 to +125 C

Response time

4 ms max

Approvals

C UL US; CE; UL; EAC; RoHS

EAN

5702428934367

Part number

060G6478

Net weight

0.136 Kilogram

Product group

Sensors

+ output

Pin 3

+ supply

Pin 1

- common

Pin 4

Accuracy, max. [±FS%]

1 %

Accuracy, typical [±FS%]

0.5 %

Adj. zero point and span

No

Ambient temperature range [°C] [max]

85 °C

Ambient temperature range [°C] [min]

-25 °C

Ambient temperature range [°F] [max]

185 °F

Ambient temperature range [°F] [min]

-13 °F

Approval

C UL US UL Recognized

CE mark

Yes

China RoHS compliance

Out of scope

Compensated temp. range [°C] [max]

80 °C

Compensated temp. range [°C] [min]

0 °C

Compensated temp. range [°F] [max]

176 °F

Compensated temp. range [°F] [min]

32 °F

EEE category

5 small equipment (any external dimension < 50 cm)

Electrical conn. Male/Female

Male

Electrical connection size

4 pin

Electrical connection standard

IEC 61076-2-101

Enclosure rating IP

IP67

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Flush diaphragm

No

High Clipping Level

11.5

In scope of WEEE

Yes

International Article Number

5702428934367

Intrinsically safe

No

Low Clipping level

0

Medium temperature range [°C] [max]

85 °C

Medium temperature range [°C] [min]

-40 °C

Medium temperature range [°F] [max]

185 °F

Medium temperature range [°F] [min]

-40 °F

Non-linearity BFSL [±FS%]

0.2 %

Output signal

Voltage

Output signal [V] [max]

10 V

Output signal [V] [min]

0 V

Overload pressure max. [bar]

60 bar

Overload pressure max. [psi]

870 psi

Pressure connection HEX [mm]

27 mm

Pressure connection size

1/4

Pressure connection standard

DIN 3852-E

Pressure connection type

G

Pressure Male/Female

Male

Pressure range [bar] [max]

9 bar

Pressure range [bar] [min]

-1 bar

Pressure range [psi] [max]

130.5 psi

Pressure range [psi] [min]

-14.5 psi

Pressure reference

Sealed gauge

Pulse-snubber

No

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Response time max. [ms]

4 ms

Specification key

MBS 3000-D635-E3GB04-2

Supply voltage [V] DC [max]

32 V

Supply voltage [V] DC [min]

15 V

UL mark

Yes

Material

AISI 316L stainless steel wetted parts

Thread Standard

G 1/4 male (ISO 1179-2, Form E)

Pressure Rating

-1 to 9 bar (-14.5 to 130.5 psi)

Temperature Range

-40 to +125 C (medium)

IP Rating

IP67

Classification / Approval

C UL US; CE; UL; EAC; RoHS

HS Code

9026.20
