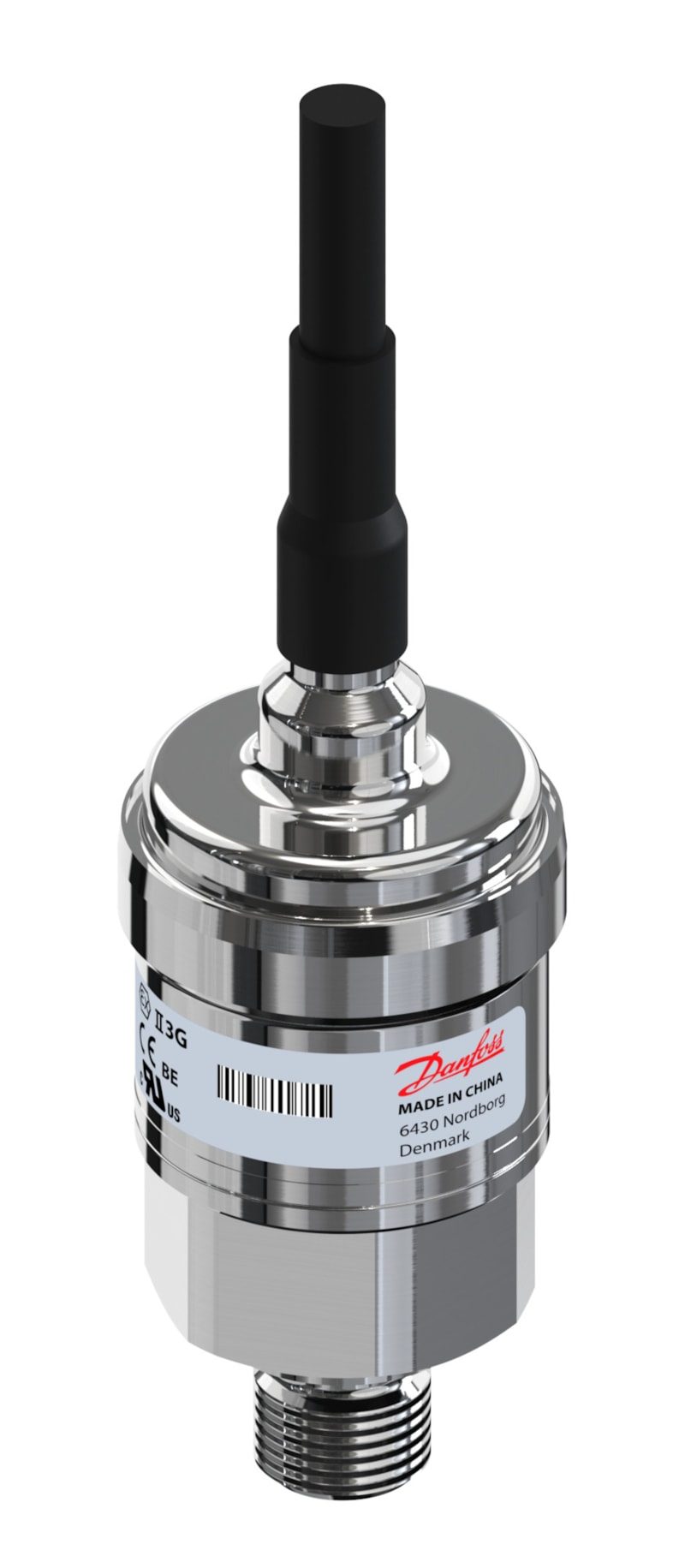

Danfoss MBS 3200 Pressure Transmitter 0-10 bar G1/4 cable 2m (060G6473)
Danfoss · Sensors & Instrumentation · Pressure Transmitters
Danfoss MBS 3200 pressure transmitter, genuine OEM code 060G6473. Measuring range 0 to 10 bar (0 to 145 psi), 4-20 mA (2-wire) output, AISI 316L stainless steel wetted parts. G 1/4 male (ISO 1179-2, Form E) pressure connection; Cable outlet 2 m, screened. Reference gauge, enclosure IP67. CE / UL / C UL US / EAC (GOST) / RoHS; EAN 5702428933612. P/N 060G6473.
Specifications
- Part number
- 060G6473
- HS code
- 9026.20
- Material
- AISI 316L stainless steel wetted parts
- Pressure rating
- 0 to 10 bar (0 to 145 psi)
- Temperature range
- -40 to +125 C (medium)
- IP rating
- IP67
- Thread standard
- G 1/4 male (ISO 1179-2, Form E)
Compatibility
MBS 3200 pulsation-damped transmitter, 0 to 10 bar gauge, G1/4 Form E port with 2 m screened cable.
Standards
- IEC 61326
- IEC 61298-2
- IEC 60770
- EN 61326-1
