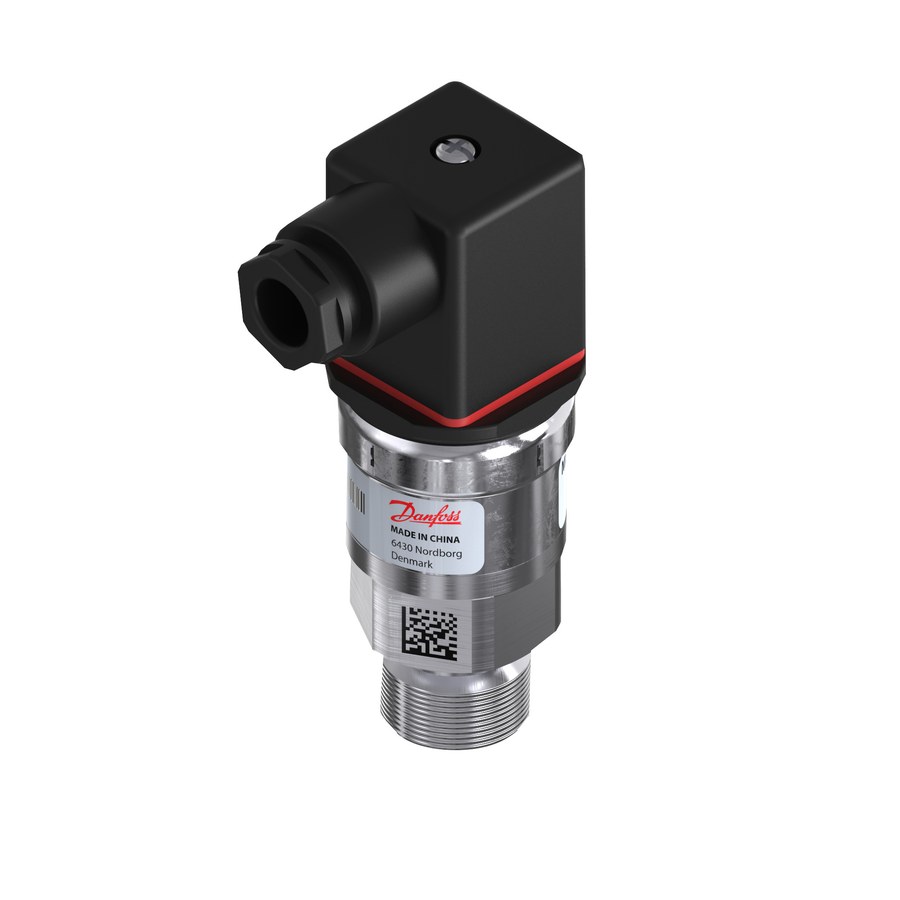

Danfoss MBS 3300 Pressure Transmitter 0-6 bar G1/2 Pg11 (060G6250)
Danfoss · Sensors & Instrumentation · Pressure Transmitters
Danfoss MBS 3300 pressure transmitter, genuine OEM code 060G6250. Measuring range 0 to 6 bar (0 to 87 psi), 4-20 mA (2-wire) output, AISI 316L stainless steel wetted parts. G 1/2 male (ISO 1179-2, Form E) pressure connection; Angular connector Pg 11 male (EN 175301-803-A). Reference gauge, enclosure IP65. CE / UL / C UL US / EAC (GOST) / RoHS; EAN 5702428835916. P/N 060G6250.
Specifications
- Part number
- 060G6250
- HS code
- 9026.20
- Material
- AISI 316L stainless steel wetted parts
- Pressure rating
- 0 to 6 bar (0 to 87 psi)
- Temperature range
- -40 to +125 C (medium)
- IP rating
- IP65
- Thread standard
- G 1/2 male (ISO 1179-2, Form E)
Compatibility
MBS 3300 transmitter, 0 to 6 bar gauge, G1/2 Form E port with angular Pg11 EN 175301-803-A plug.
Standards
- IEC 61326
- IEC 61298-2
- IEC 60770
- EN 61326-1
