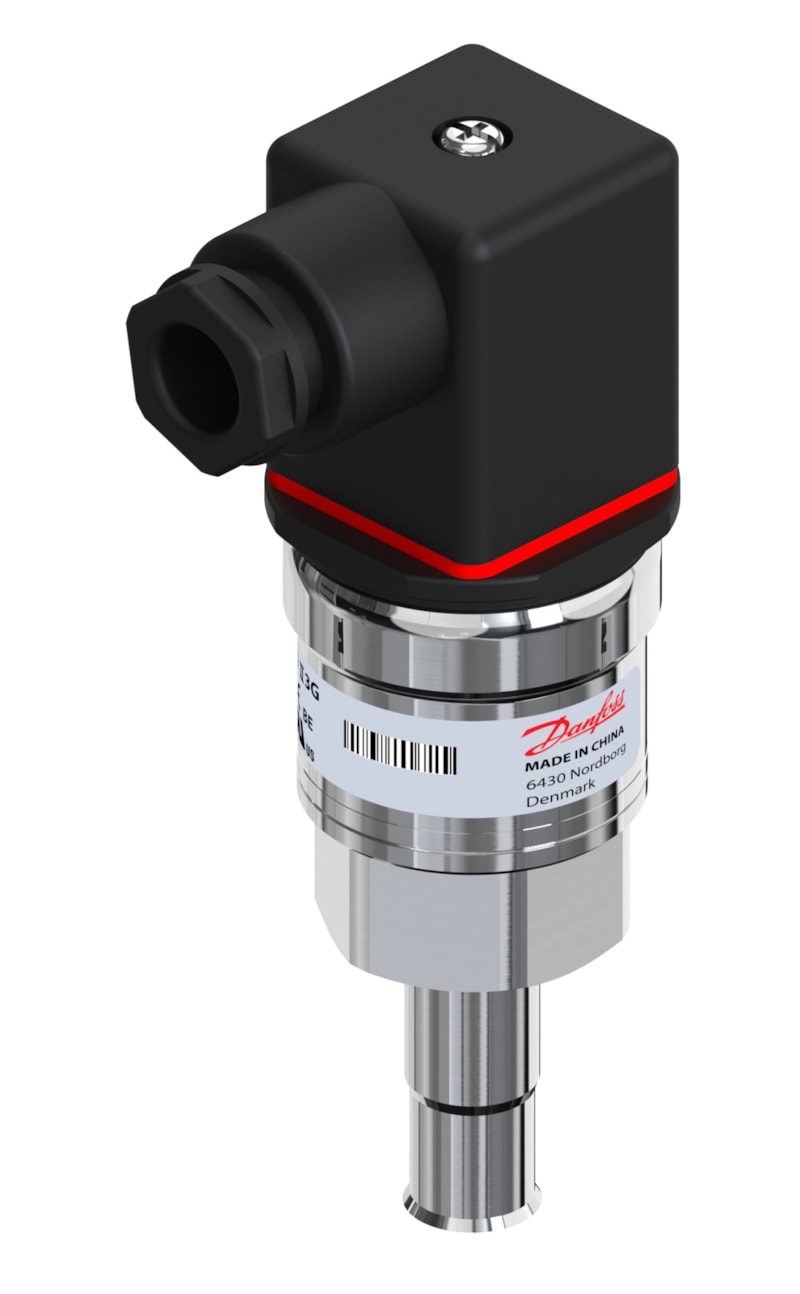

Danfoss AKS 32R Pressure Transmitter 0–16 bar ratiometric absolute
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss AKS 32R pressure transmitter, genuine OEM code 060G6156. Output 0.5–4.5 V ratiometric (3-wire) over a measuring range of 0–16 bar (0–232 psi), supply voltage 5 V DC (4.5–5.5 V). Pressure connection 3/8 in solder (ODF); electrical connection Angular connector Pg 9 (EN 175301-803-A). Pressure reference absolute. Accuracy ≤ ±0.3 % FS typical, ≤ ±1.0 % FS maximum. Wetted parts AISI 316L stainless steel; enclosure IP65. Approvals: ATEX Ex ec IIA T4 Gc, CE, UL Recognized (C UL US). EAN 5702423303236.
Technical Specifications
- Brand
- Danfoss
- Part number
- 060G6156
- Type
- AKS 32R pressure transmitter
- Category
- Sensors & Instrumentation — Pressure Transmitters
- Measuring range
- 0–16 bar (0–232 psi)
- Reference
- absolute
- Output signal
- 0.5–4.5 V ratiometric (3-wire)
- Supply voltage
- 5 V DC (4.5–5.5 V)
- Accuracy
- ≤ ±0.3 % FS typical, ≤ ±1.0 % FS maximum
- Pressure connection
- 3/8 in solder (ODF)
- Electrical connection
- Angular connector Pg 9 (EN 175301-803-A)
- Wetted parts
- AISI 316L stainless steel
- Ambient temperature
- -40 to +85 °C
- Enclosure rating
- IP65
- EAN
- 5702423303236
- Approvals
- ATEX Ex ec IIA T4 Gc, CE, UL Recognized (C UL US)
- HS code
- 9026.20
- Net weight
- 0.148 Kilogram
- Product group
- Sensors
- + output
- Pin 3
- + supply
- Pin 1
- - common
- Pin 2
- Accuracy, max. [±FS%]
- 0.8 %
- Accuracy, typical [±FS%]
- 0.3 %
- Adj. zero point and span
- No
- Ambient temperature range [°C] [max]
- 85 °C
- Ambient temperature range [°C] [min]
- -40 °C
- Ambient temperature range [°F] [max]
- 185 °F
- Ambient temperature range [°F] [min]
- -40 °F
- Approval
- ATEX
- Approval comments
- ATEX Ex ec IIA T4 Gc
- Approval standard
- 6967179
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- Compensated temp. range [°C] [max]
- 40 °C
- Compensated temp. range [°C] [min]
- -30 °C
- Compensated temp. range [°F] [max]
- 104 °F
- Compensated temp. range [°F] [min]
- -22 °F
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical conn. comments
- A3-3,1-Au
- Electrical conn. Male/Female
- Male and Female
- Electrical connection size
- Pg 9
- Electrical connection standard
- EN 175301-803-A
- Enclosure rating IP
- IP65
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(c)
- Flush diaphragm
- No
- High Clipping Level
- 98
- In scope of WEEE
- Yes
- International Article Number
- 5702423303236
- Intrinsically safe
- No
- Low Clipping level
- 4
- Medium temperature range [°C] [max]
- 85 °C
- Medium temperature range [°C] [min]
- -40 °C
- Medium temperature range [°F] [max]
- 185 °F
- Medium temperature range [°F] [min]
- -40 °F
- Non-linearity BFSL [±FS%]
- 0.2 %
- Overload pressure max. [bar]
- 33 bar
- Overload pressure max. [psi]
- 479 psi
- Pressure connection size
- 3/8
- Pressure connection standard
- NONE
- Pressure connection type
- Solder, ODF
- Pressure Male/Female
- Male/Female
- Pressure range [bar] [max]
- 16 bar
- Pressure range [bar] [min]
- 0 bar
- Pressure range [psi] [max]
- 232 psi
- Pressure range [psi] [min]
- 0 psi
- Pressure reference
- Absolute
- Pulse-snubber
- No
- Ratiometric of Vsupply [%] [max]
- 90 %
- Ratiometric of Vsupply [%] [min]
- 10 %
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Response time max. [ms]
- 4 ms
- Specification key
- AKS 32R-2226-A1EB08-0
- Supply voltage [V] DC [max]
- 5.5 V
- Supply voltage [V] DC [min]
- 4.5 V
- UL mark
- Yes
Standards & Compliance
- Size / Series
- 3/8 in solder (ODF)
- Material
- AISI 316L stainless steel wetted parts
- Thread Standard
- 3/8 in solder (ODF)
- Pressure Rating
- 0–16 bar (0–232 psi)
- Temperature Range
- -40 to +85 °C ambient
- IP Rating
- IP65
- HS Code
- 9026.20
Compatibility & Fitment
Select the measuring range and pressure/electrical connection to suit the application. Observe supply voltage and load limits.
