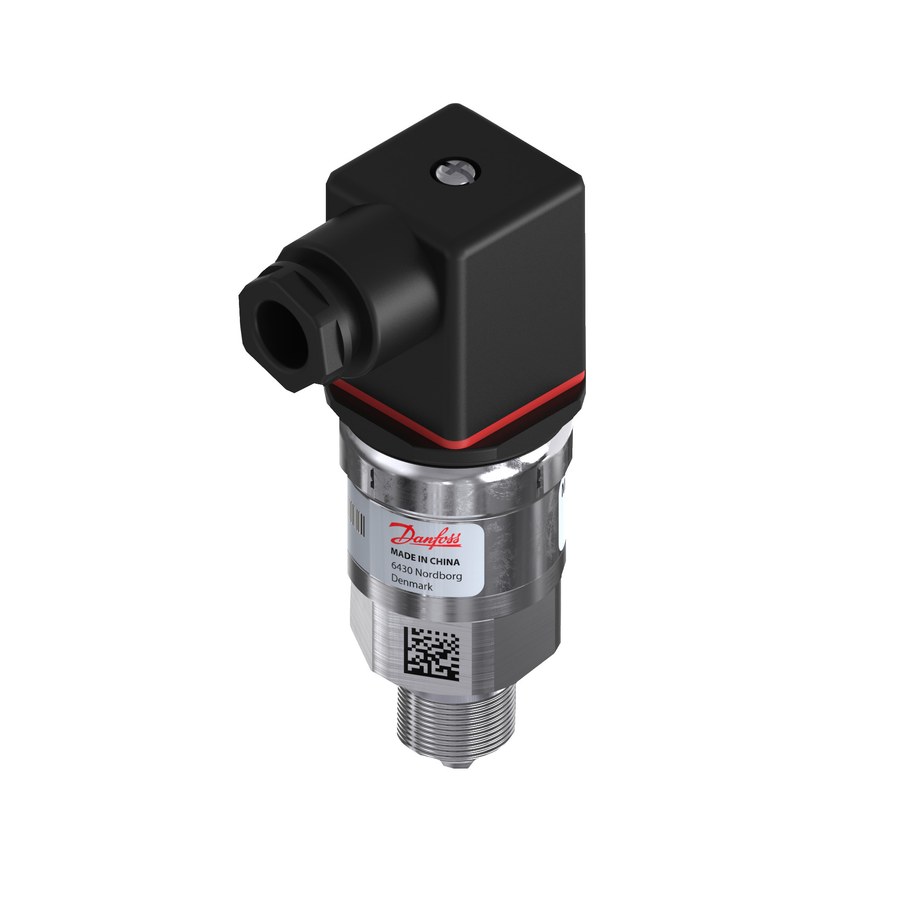

Danfoss AKS 32 Pressure Transmitter -1 to 6 bar (060G2004)
Danfoss · Sensors & Instrumentation · Pressure Transmitters
Danfoss AKS 32 pressure transmitter for refrigeration and air-conditioning. Measuring range -1 to 6 bar (-14.5 to 87 psi), ratiometric voltage output 1-5 V DC, digitally compensated ceramic/silicon sensor with 316L stainless steel wetted parts. Pressure connection G 3/8 (EN 837); electrical connection angular connector Pg 9. EAN 5702422067764. P/N 060G2004.
Specifications
- Part number
- 060G2004
- HS code
- 9026.20
- Material
- AISI 316L stainless steel wetted parts
- Pressure rating
- -1 to 6 bar
- Temperature range
- -40°C to +85°C (medium/ambient)
- IP rating
- IP65
- Thread standard
- EN 837
Compatibility
Voltage-output (1-5 V) variant; verify G 3/8 process connection and Pg 9 angular plug.
Standards
- IEC 61326
- IEC 61298-2
- IEC 60770
- EN 61326-1
