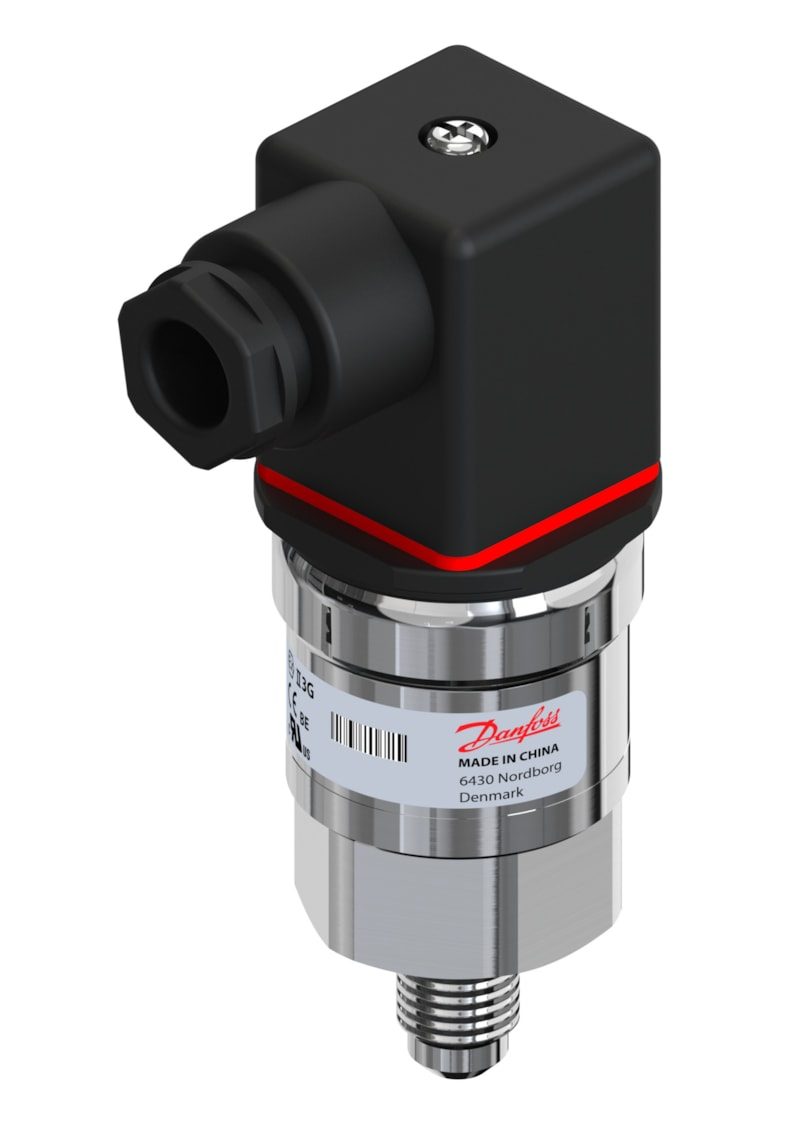

Danfoss AKS 33 Pressure Transmitter -1 to 20 bar

Danfoss AKS 33 pressure transmitter for refrigeration. Measuring range -1 to 20 bar (-14.5 to 290 psi), 4-20 mA current output (two-wire), 316L stainless steel wetted parts. Flare 7/16-20 UNF (1/4 in) pressure connection; angular Pg 9 electrical connector. EAN 5702422069492.

Type

AKS 33

Range

-1 to 20 bar (-14.5 to 290 psi)

Output

4-20 mA (2-wire)

Supply

10-30 V DC

Wetted parts

AISI 316L stainless steel

Pressure connection

7/16-20 UNF flare 1/4 in

Electrical connection

Angular connector Pg 9, EN 175301-803-A

Enclosure

IP65

Media temp

-40 to 85°C

EAN

5702422069492

Part number

060G2050

Code number

060G2050

Product group

Sensors

Ambient temperature range

-40 °C to 85 °C

Approval

ATEX; C UL US UL Recognized; CE; GOST POCC

Approval standard

6967179; E227388; E31024

UL mark

Yes

CE mark

Yes

REACH candidate-list substances

Lead (CAS no. 7439-92-1)

Net weight

0.152 kg

Accuracy, max.

0.80 %

Accuracy, typical

0.3 %

Adj. zero point and span

No

Compensated temp. range

0 °C to 80 °C

EEE category

5 small equipment (any external dimension < 50 cm)

Electrical conn. Male/Female

Male and Female

Electrical connection size

Pg 9

Electrical connection standard

EN 175301-803-A

Enclosure rating IP

IP65

Flush diaphragm

No

High Clipping Level

22.40

In scope of WEEE

Yes

Intrinsically safe

No

Low Clipping level

3.60

Negative / common

Pin 2

Non-linearity BFSL

0.20 %

Output signal

Current, 4 mA to 20 mA

Overload pressure max.

40.0 bar

Pressure connection notes

Flare 1/4 in

Pressure connection size

7/16-20

Material

AISI 316L stainless steel wetted parts

Thread Standard

SAE J513 flare

Pressure Rating

-1 to 20 bar

Temperature Range

-40°C to +85°C (medium/ambient)

IP Rating

IP65

Classification / Approval

EAC; RoHS

HS Code

9026.20
