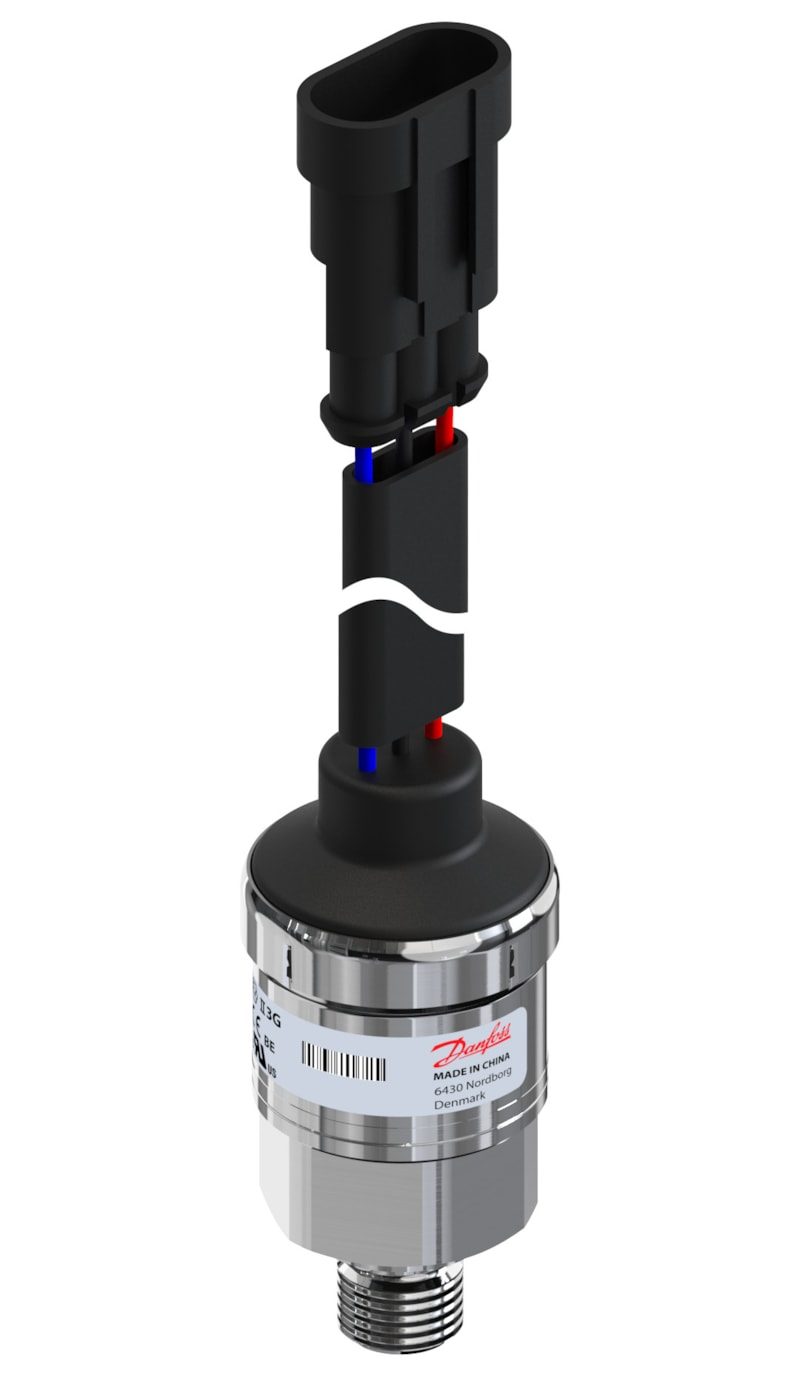

Danfoss MBS 3200 Pressure Transmitter 0 to 16 bar
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss MBS 3200 heavy-duty pressure transmitter for mobile and off-highway use with high vibration and shock. Range 0 to 16 bar (0 to 232 psi), 4-20 mA output, 316L stainless steel wetted parts. G 1/4 EN 837 connection; AMP SuperSeal 3-pin plug (IP67). EAN 5702428876889.
Technical Specifications
- Type
- MBS 3200 (heavy-duty / mobile)
- Range
- 0 to 16 bar (0 to 232 psi)
- Output
- 4-20 mA (2-wire)
- Supply
- 9-32 V DC
- Wetted parts
- AISI 316L stainless steel
- Pressure connection
- G 1/4 (male, EN 837)
- Electrical connection
- AMP SuperSeal 1.5, 3-pin
- Enclosure
- IP67
- Media temp
- -40 to 85°C
- EAN
- 5702428876889
- Part number
- 060G6310
- Code number
- 060G6310
- Product group
- Sensors
- Ambient temperature range
- -40 °C to 100 °C
- Approval
- C UL US UL Recognized; CE
- UL mark
- Yes
- CE mark
- Yes
- REACH candidate-list substances
- Lead (CAS no. 7439-92-1)
- Net weight
- 0.132 kg
- Accuracy, max.
- 1.00 %
- Accuracy, typical
- 0.5 %
- Adj. zero point and span
- No
- Compensated temp. range
- 0 °C to 100 °C
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical conn. comments
- Flying leads
- Electrical conn. Male/Female
- Male
- Electrical connection size
- 3 pin
- Enclosure rating IP
- IP67
- Flush diaphragm
- No
- High Clipping Level
- 22.40
- In scope of WEEE
- Yes
- Intrinsically safe
- No
- Low Clipping level
- 3.60
- Negative / common
- Pin 2
- Non-linearity BFSL
- 0.20 %
- Output signal
- Current, 4 mA to 20 mA
- Overload pressure max.
- 96.0 bar
- Pressure connection HEX
- 27.0 mm
- Pressure connection size
- 1/4
- Pressure connection standard
- EN 837
Standards & Compliance
- Material
- AISI 316L stainless steel wetted parts
- Thread Standard
- EN 837
- Pressure Rating
- 0 to 16 bar
- Temperature Range
- -40°C to +85°C (medium/ambient)
- IP Rating
- IP67
- Classification / Approval
- EAC; RoHS
- HS Code
- 9026.20
Compatibility & Fitment
MBS 3200 is the vibration/shock-rated body for mobile hydraulics; AMP SuperSeal connector.
