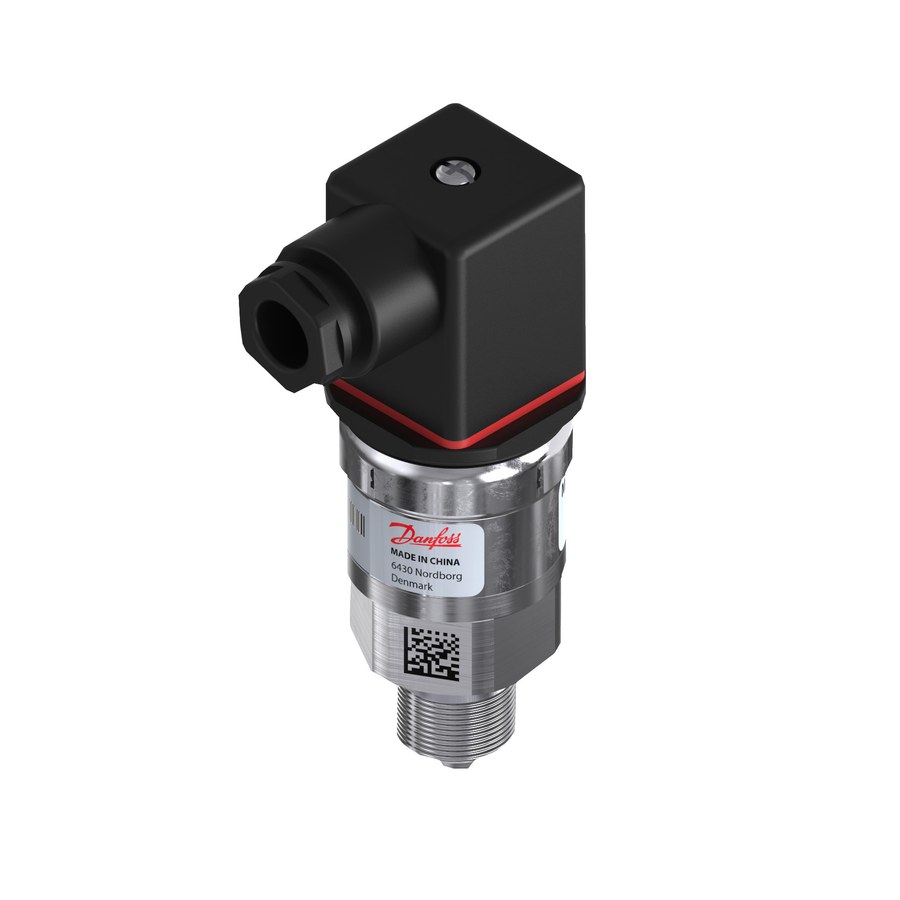

Danfoss AKS 32 Pressure Transmitter -1 to 5 bar 0-10 V G 3/8
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss AKS 32 pressure transmitter for refrigeration and air-conditioning. Measuring range -1 to 5 bar (-14.5 to 72.5 psi), 0-10 V voltage output, digitally compensated ceramic/silicon sensor with AISI 316L stainless steel wetted parts. Pressure connection G 3/8 (male, EN 837); electrical connection angular connector Pg 9 (EN 175301-803-A). Sealed-gauge reference; accuracy +/-0.3% typical. Approvals: ATEX Ex ec IIA T4 Gc, CE, UL Recognized (C UL US), GOST. EAN 5702422093992.
Technical Specifications
- Type
- AKS 32
- Range
- -1 to 5 bar (-14.5 to 72.5 psi)
- Output
- 0-10 V (voltage)
- Supply
- 15-32 V DC
- Wetted parts
- AISI 316L stainless steel
- Pressure connection
- G 3/8 (male, EN 837)
- Electrical connection
- Angular connector Pg 9, EN 175301-803-A
- Reference
- Sealed gauge
- Enclosure
- IP65
- Media temp
- -40 to 85°C
- Approvals
- ATEX Ex ec IIA T4 Gc, CE, UL Recognized (C UL US), GOST
- EAN
- 5702422093992
- Part number
- 060G2038
- Net weight
- 0.168 Kilogram
- Product group
- Sensors
- + output
- Pin 3
- + supply
- Pin 1
- - common
- Pin 2
- Accuracy, max. [±FS%]
- 0.8 %
- Accuracy, typical [±FS%]
- 0.3 %
- Adj. zero point and span
- No
- Ambient temperature range [°C] [max]
- 85 °C
- Ambient temperature range [°C] [min]
- -40 °C
- Ambient temperature range [°F] [max]
- 185 °F
- Ambient temperature range [°F] [min]
- -40 °F
- Approval
- ATEX
- Approval comments
- ATEX Ex ec IIA T4 Gc
- Approval standard
- 6967179
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- Compensated temp. range [°C] [max]
- 40 °C
- Compensated temp. range [°C] [min]
- -30 °C
- Compensated temp. range [°F] [max]
- 104 °F
- Compensated temp. range [°F] [min]
- -22 °F
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical conn. Male/Female
- Male and Female
- Electrical connection size
- Pg 9
- Electrical connection standard
- EN 175301-803-A
- Enclosure rating IP
- IP65
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(c)
- Flush diaphragm
- No
- High Clipping Level
- 11.5
- In scope of WEEE
- Yes
- International Article Number
- 5702422093992
- Intrinsically safe
- No
- Low Clipping level
- 0
- Medium temperature range [°C] [max]
- 85 °C
- Medium temperature range [°C] [min]
- -40 °C
- Medium temperature range [°F] [max]
- 185 °F
- Medium temperature range [°F] [min]
- -40 °F
- Non-linearity BFSL [±FS%]
- 0.2 %
- Output signal
- Voltage
- Output signal [V] [max]
- 10 V
- Output signal [V] [min]
- 0 V
- Overload pressure max. [bar]
- 33 bar
- Pressure connection size
- 3/8
- Pressure connection standard
- EN 837
- Pressure connection type
- G
- Pressure Male/Female
- Male
- Pressure range [bar] [max]
- 5 bar
- Pressure range [bar] [min]
- -1 bar
- Pressure range [psi] [max]
- 72.5 psi
- Pressure range [psi] [min]
- -14.5 psi
- Pressure reference
- Sealed gauge
- Pulse-snubber
- No
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Response time max. [ms]
- 4 ms
- Specification key
- AKS 32-8735-A1AB06-0
- Supply voltage [V] DC [max]
- 32 V
- Supply voltage [V] DC [min]
- 15 V
- UL mark
- Yes
Standards & Compliance
- Material
- AISI 316L stainless steel wetted parts
- Thread Standard
- EN 837
- Pressure Rating
- -1 to 5 bar
- Temperature Range
- -40°C to +85°C (medium/ambient)
- IP Rating
- IP65
- Classification / Approval
- EAC; RoHS
- HS Code
- 9026.20
Compatibility & Fitment
0-10 V voltage-output variant with G 3/8 (EN 837) process connection and Pg 9 angular plug.
More from Danfoss
Danfoss
Danfoss AKS 32 Pressure Transmitter 0 to 34.5 bar (0-500 psi) 2 m cable
060G2031
Danfoss
Danfoss AKS 32 Pressure Transmitter 0 to 34.5 bar (0-500 psi) 5 m cable
060G2033
Danfoss
Danfoss AKS 33 Pressure Transmitter -1 to 9 bar
060G2044
Danfoss
Danfoss AKS 33 Pressure Transmitter 0 to 25 bar (060G2045)
Danfoss
Danfoss AKS 33 Pressure Transmitter -1 to 5 bar
060G2047
Danfoss
Danfoss AKS 33 Pressure Transmitter -1 to 6 bar
060G2048
Danfoss
Danfoss AKS 33 Pressure Transmitter -1 to 12 bar
060G2049
Danfoss
Danfoss AKS 33 Pressure Transmitter -1 to 34 bar
060G2051
Technical guides
- Cross-Referencing Danfoss Refrigeration Components by IMPA and OEM Code
- Danfoss Product Code Decoder — 003Z, 013G, 017B, 023U, 027L, 032F, 060G, 060H, 065B, 065Z, 068Z, 084H, 132F, 148B Series (Complete Reference)
- Danfoss Maneurop MTZ Reciprocating Compressors — Model Range, Voltage Codes and Replacement Guide
Catalogue entry last verified: 2026-09-03. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 060G2038?
- 060G2038 can be ordered from cballast.com as a Danfoss catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Danfoss product?
- The manufacturer part number is 060G2038.
- What is the HS code for 060G2038?
- The customs tariff (HS) code for 060G2038 is 9026.20.
- Who manufactures 060G2038?
- 060G2038 is a Danfoss product in the Sensors & Instrumentation range.
- Is a datasheet available for 060G2038?
- Yes — the 060G2038 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 060G2038?
- The minimum order quantity is 1.
- Is 060G2038 available?
- Yes — 060G2038 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
