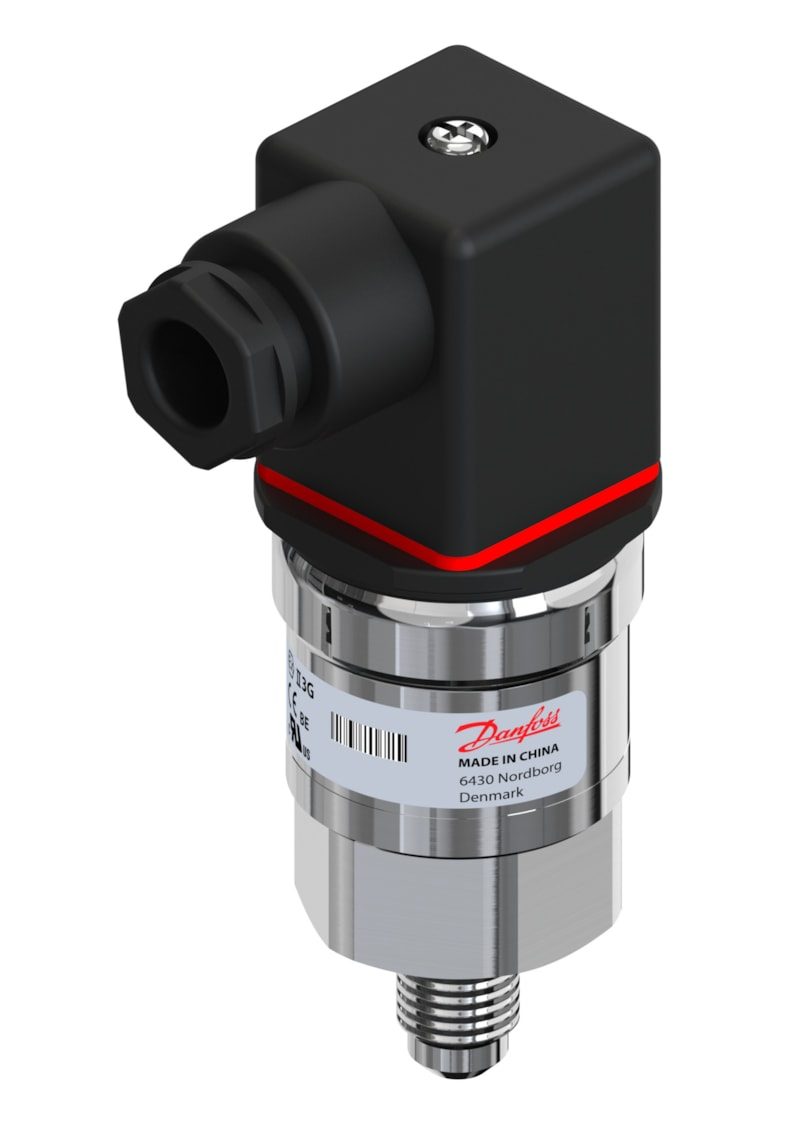

Danfoss AKS 33 Pressure Transmitter 0 to 25 bar (060G2045)
Danfoss · Sensors & Instrumentation · Pressure Transmitters
Danfoss AKS 33 pressure transmitter for refrigeration. Measuring range 0 to 25 bar (0 to 362.5 psi), 4-20 mA current output (two-wire), AISI 316L stainless steel wetted parts. Flare 7/16-20 UNF (1/4 in) pressure connection; electrical connection angular connector Pg 9 (EN 175301-803-A). Sealed-gauge reference. Approvals: ATEX Ex ec IIA T4 Gc, CE, UL Recognized (C UL US), GOST. EAN 5702422069904. P/N 060G2045.
Specifications
- Part number
- 060G2045
- HS code
- 9026.20
- Material
- AISI 316L stainless steel wetted parts
- Pressure rating
- 0 to 25 bar
- Temperature range
- -40°C to +85°C (medium/ambient)
- IP rating
- IP65
- Thread standard
- SAE J513 flare
Compatibility
AKS 33 is the 4-20 mA current-output counterpart of AKS 32; flare fitting suits refrigeration service ports.
Standards
- IEC 61326
- IEC 61298-2
- IEC 60770
- EN 61326-1
