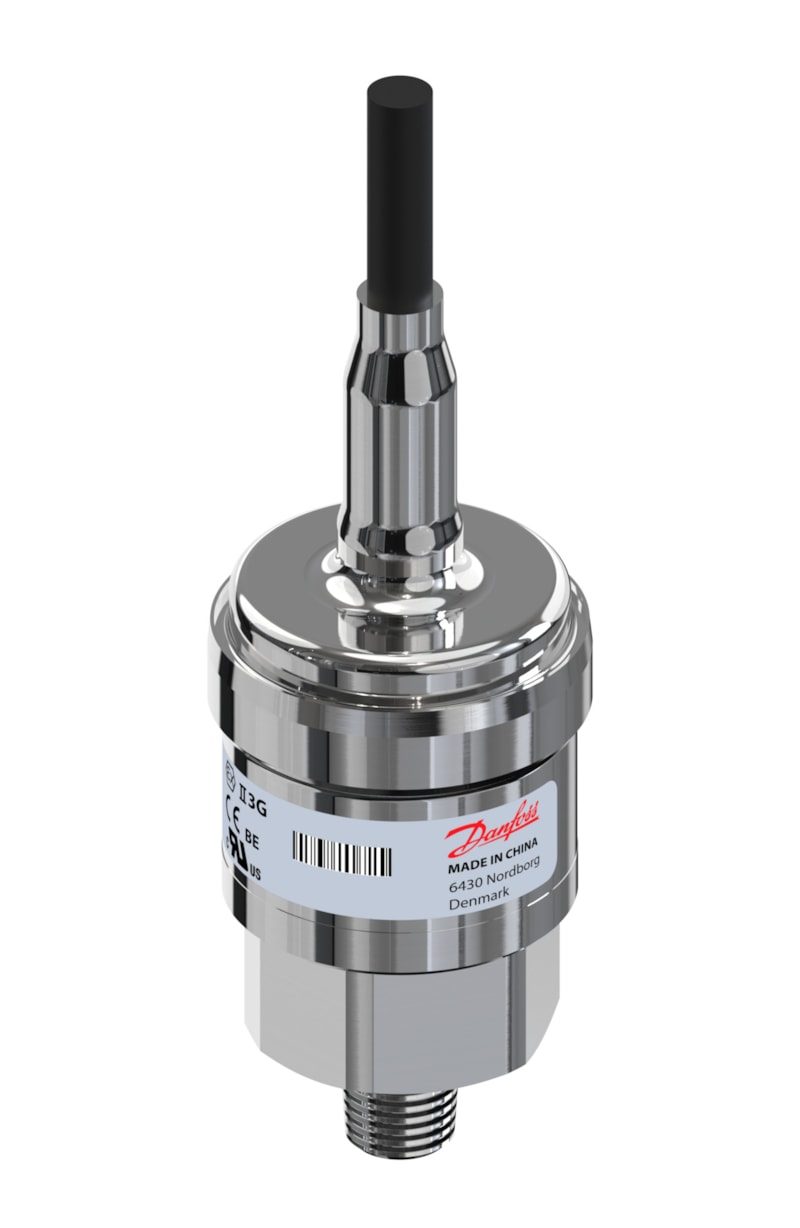

Danfoss AKS 32 Pressure Transmitter 0 to 34.5 bar (0-500 psi) 2 m cable

Danfoss AKS 32 pressure transmitter for refrigeration and air-conditioning. Measuring range 0 to 34.5 bar (0 to 500 psi), ratiometric voltage output 1-5 V, digitally compensated ceramic/silicon sensor with AISI 316L stainless steel wetted parts. Pressure connection 1/8-27 NPT (male); electrical connection 2 m screened cable. Sealed-gauge reference; accuracy +/-0.3% typical. Approvals: ATEX Ex ec IIA T4 Gc, CE, UL Recognized (C UL US), GOST. EAN 5702422067887.

Type

AKS 32

Range

0 to 34.5 bar (0 to 500 psi)

Output

1-5 V (ratiometric)

Supply

9-32 V DC

Wetted parts

AISI 316L stainless steel

Pressure connection

1/8-27 NPT (male)

Electrical connection

Screened cable, 2 m

Reference

Sealed gauge

Enclosure

IP67

Media temp

-40 to 85°C

Approvals

ATEX Ex ec IIA T4 Gc, CE, UL Recognized (C UL US), GOST

EAN

5702422067887

Part number

060G2031

Net weight

0.216 Kilogram

Product group

Sensors

+ output

White

+ supply

Red

- common

Black

Accuracy, max. [±FS%]

0.8 %

Accuracy, typical [±FS%]

0.3 %

Adj. zero point and span

No

Ambient temperature range [°C] [max]

85 °C

Ambient temperature range [°C] [min]

-40 °C

Ambient temperature range [°F] [max]

185 °F

Ambient temperature range [°F] [min]

-40 °F

Approval

ATEX

Approval comments

ATEX Ex ec IIA T4 Gc

Approval standard

6967179

Cable length [in]

79 in

Cable length [m]

2 m

CE mark

Yes

China RoHS compliance

Out of scope

Compensated temp. range [°C] [max]

80 °C

Compensated temp. range [°C] [min]

0 °C

Compensated temp. range [°F] [max]

176 °F

Compensated temp. range [°F] [min]

32 °F

EEE category

5 small equipment (any external dimension < 50 cm)

Electrical conn. comments

Screened

Enclosure rating IP

IP67

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Flush diaphragm

No

High Clipping Level

5.6

In scope of WEEE

Yes

International Article Number

5702422067887

Intrinsically safe

No

Low Clipping level

0.1

Medium temperature range [°C] [max]

85 °C

Medium temperature range [°C] [min]

-40 °C

Medium temperature range [°F] [max]

185 °F

Medium temperature range [°F] [min]

-40 °F

Non-linearity BFSL [±FS%]

0.2 %

Output signal

Voltage

Output signal [V] [max]

5 V

Output signal [V] [min]

1 V

Overload pressure max. [psi]

800 psi

Pressure connection size

1/8-27

Pressure connection standard

ANSI/ASME B1.20.1

Pressure connection type

NPT

Pressure Male/Female

Male

Pressure range [bar] [max]

34.5 bar

Pressure range [bar] [min]

0 bar

Pressure range [psi] [max]

500 psi

Pressure range [psi] [min]

0 psi

Pressure reference

Sealed gauge

Pulse-snubber

No

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Response time max. [ms]

4 ms

Specification key

AKS 32-6633-A3AC02-0

Supply voltage [V] DC [max]

32 V

Supply voltage [V] DC [min]

9 V

UL mark

Yes

Material

AISI 316L stainless steel wetted parts

Thread Standard

ANSI/ASME B1.20.1

Pressure Rating

0 to 34.5 bar

Temperature Range

-40°C to +85°C (medium/ambient)

IP Rating

IP67

Classification / Approval

EAC; RoHS

HS Code

9026.20
