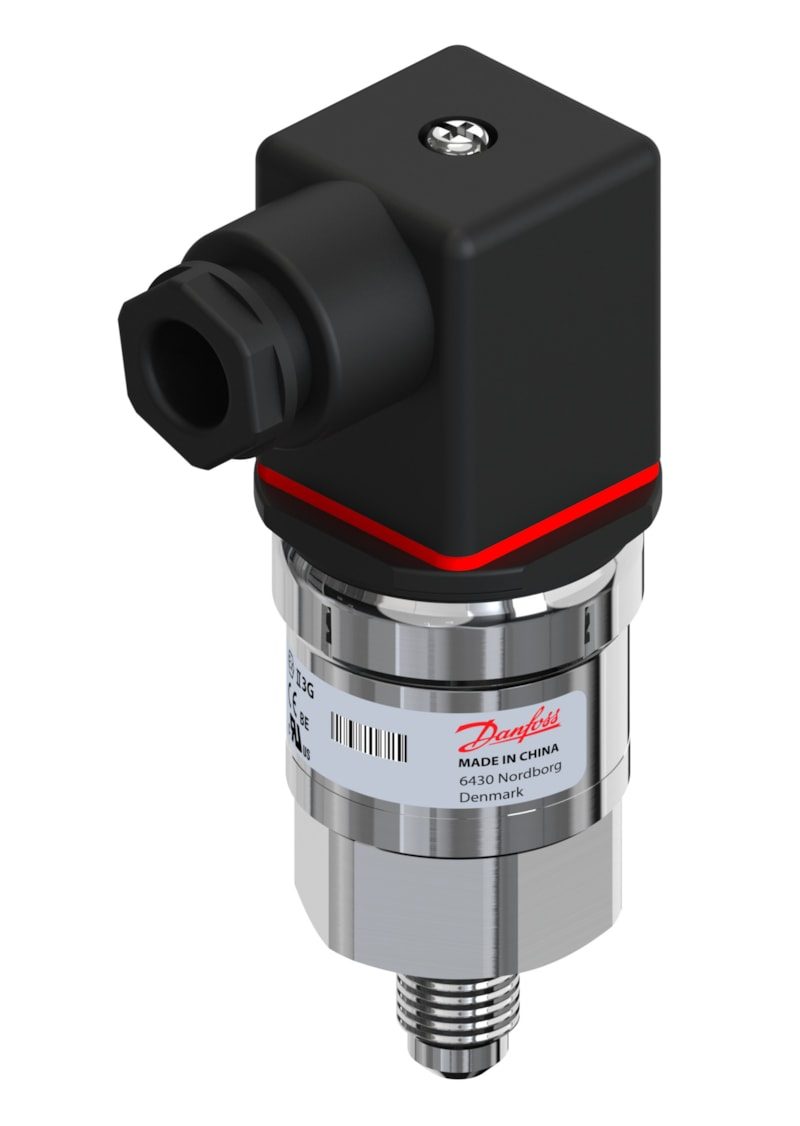

Danfoss AKS 33 Pressure Transmitter -1 to 9 bar
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss AKS 33 pressure transmitter for refrigeration. Measuring range -1 to 9 bar (-14.5 to 130.5 psi), 4-20 mA current output (two-wire), AISI 316L stainless steel wetted parts. Flare 7/16-20 UNF (1/4 in) pressure connection; electrical connection angular connector Pg 9 (EN 175301-803-A). Sealed-gauge reference. Approvals: ATEX Ex ec IIA T4 Gc, CE, UL Recognized (C UL US), GOST. EAN 5702422070016.
Technical Specifications
- Type
- AKS 33
- Range
- -1 to 9 bar (-14.5 to 130.5 psi)
- Output
- 4-20 mA (2-wire)
- Supply
- 9-32 V DC
- Wetted parts
- AISI 316L stainless steel
- Pressure connection
- 7/16-20 UNF flare 1/4 in
- Electrical connection
- Angular connector Pg 9, EN 175301-803-A
- Reference
- Sealed gauge
- Enclosure
- IP65
- Media temp
- -40 to 85°C
- Approvals
- ATEX Ex ec IIA T4 Gc, CE, UL Recognized (C UL US), GOST
- EAN
- 5702422070016
- Part number
- 060G2044
- Net weight
- 0.152 Kilogram
- Product group
- Sensors
- + supply
- Pin 1
- - common
- Pin 2
- Accuracy, max. [±FS%]
- 0.8 %
- Accuracy, typical [±FS%]
- 0.3 %
- Ambient temperature range [°C] [max]
- 85 °C
- Ambient temperature range [°C] [min]
- -40 °C
- Ambient temperature range [°F] [max]
- 185 °F
- Ambient temperature range [°F] [min]
- -40 °F
- Approval
- ATEX
- Approval comments
- ATEX Ex ec IIA T4 Gc
- Approval standard
- 6967179
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- Compensated temp. range [°C] [max]
- 40 °C
- Compensated temp. range [°C] [min]
- -30 °C
- Compensated temp. range [°F] [max]
- 104 °F
- Compensated temp. range [°F] [min]
- -22 °F
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical conn. Male/Female
- Male and Female
- Electrical connection size
- Pg 9
- Electrical connection standard
- EN 175301-803-A
- Enclosure rating IP
- IP65
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(c)
- Flush diaphragm
- No
- High Clipping Level
- 22.4
- In scope of WEEE
- Yes
- International Article Number
- 5702422070016
- Intrinsically safe
- No
- Low Clipping level
- 3.6
- Medium temperature range [°C] [max]
- 85 °C
- Medium temperature range [°C] [min]
- -40 °C
- Medium temperature range [°F] [max]
- 185 °F
- Medium temperature range [°F] [min]
- -40 °F
- Non-linearity BFSL [±FS%]
- 0.2 %
- Output signal
- Current
- Output signal [mA] [max]
- 20 mA
- Output signal [mA] [min]
- 4 mA
- Overload pressure max. [bar]
- 33 bar
- Overload pressure max. [psi]
- 479 psi
- Pressure connection notes
- Flare 1/4 in
- Pressure connection size
- 7/16-20
- Pressure connection standard
- ASME B1.1
- Pressure connection type
- UNF
- Pressure Male/Female
- Male
- Pressure range [bar] [max]
- 9 bar
- Pressure range [bar] [min]
- -1 bar
- Pressure range [psi] [max]
- 130.5 psi
- Pressure range [psi] [min]
- -14.5 psi
- Pressure reference
- Sealed gauge
- Pulse-snubber
- No
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Response time max. [ms]
- 4 ms
- Specification key
- AKS 33-D631-A1BC08-0
- Supply voltage [V] DC [max]
- 32 V
- Supply voltage [V] DC [min]
- 9 V
- UL mark
- Yes
Standards & Compliance
- Material
- AISI 316L stainless steel wetted parts
- Thread Standard
- SAE J513 flare
- Pressure Rating
- -1 to 9 bar
- Temperature Range
- -40°C to +85°C (medium/ambient)
- IP Rating
- IP65
- Classification / Approval
- EAC; RoHS
- HS Code
- 9026.20
Compatibility & Fitment
AKS 33 is the 4-20 mA current-output counterpart of AKS 32; flare fitting suits refrigeration service ports.
