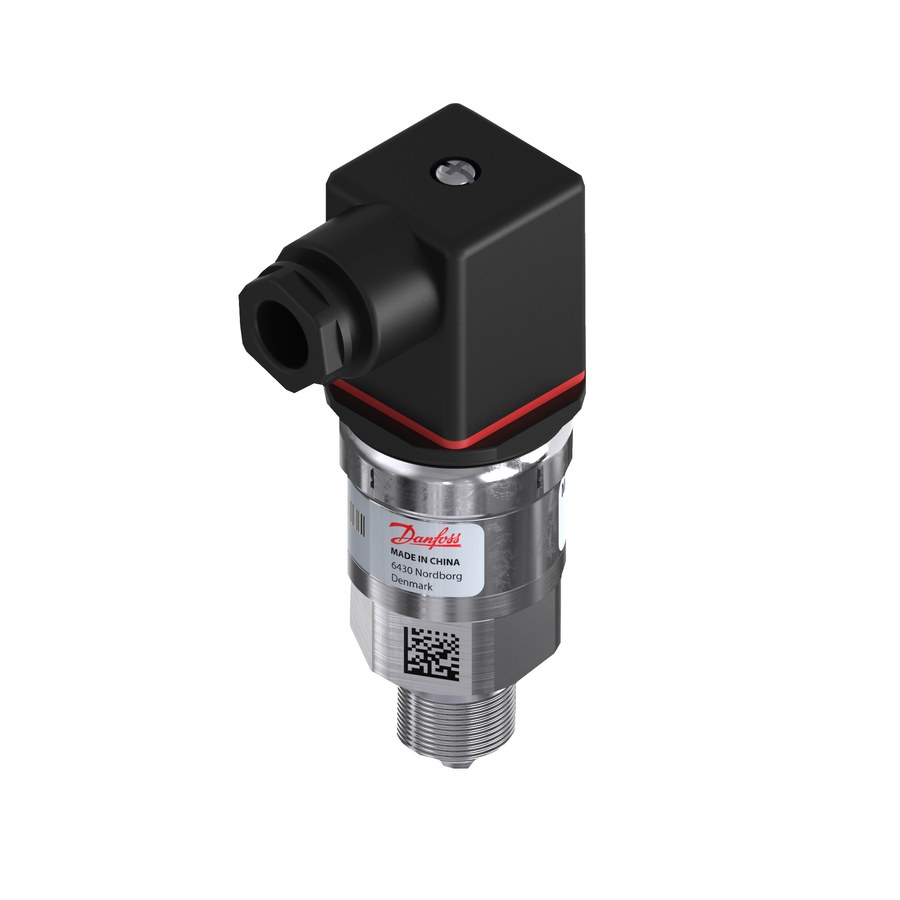

Danfoss AKS 32 Pressure Transmitter -1 to 9 bar 0-10 V G 3/8 (060G2036)
Danfoss · Sensors & Instrumentation · Pressure Transmitters
Danfoss AKS 32 pressure transmitter for refrigeration and air-conditioning. Measuring range -1 to 9 bar (-14.5 to 130.5 psi), 0-10 V voltage output, digitally compensated ceramic/silicon sensor with AISI 316L stainless steel wetted parts. Pressure connection G 3/8 (male, EN 837); electrical connection angular connector Pg 9 (EN 175301-803-A). Sealed-gauge reference; accuracy +/-0.3% typical. Approvals: ATEX Ex ec IIA T4 Gc, CE, UL Recognized (C UL US), GOST. EAN 5702422081760. P/N 060G2036.
Specifications
- Part number
- 060G2036
- HS code
- 9026.20
- Material
- AISI 316L stainless steel wetted parts
- Pressure rating
- -1 to 9 bar
- Temperature range
- -40°C to +85°C (medium/ambient)
- IP rating
- IP65
- Thread standard
- EN 837
Compatibility
0-10 V voltage-output variant with G 3/8 (EN 837) process connection and Pg 9 angular plug.
Standards
- IEC 61326
- IEC 61298-2
- IEC 60770
- EN 61326-1
