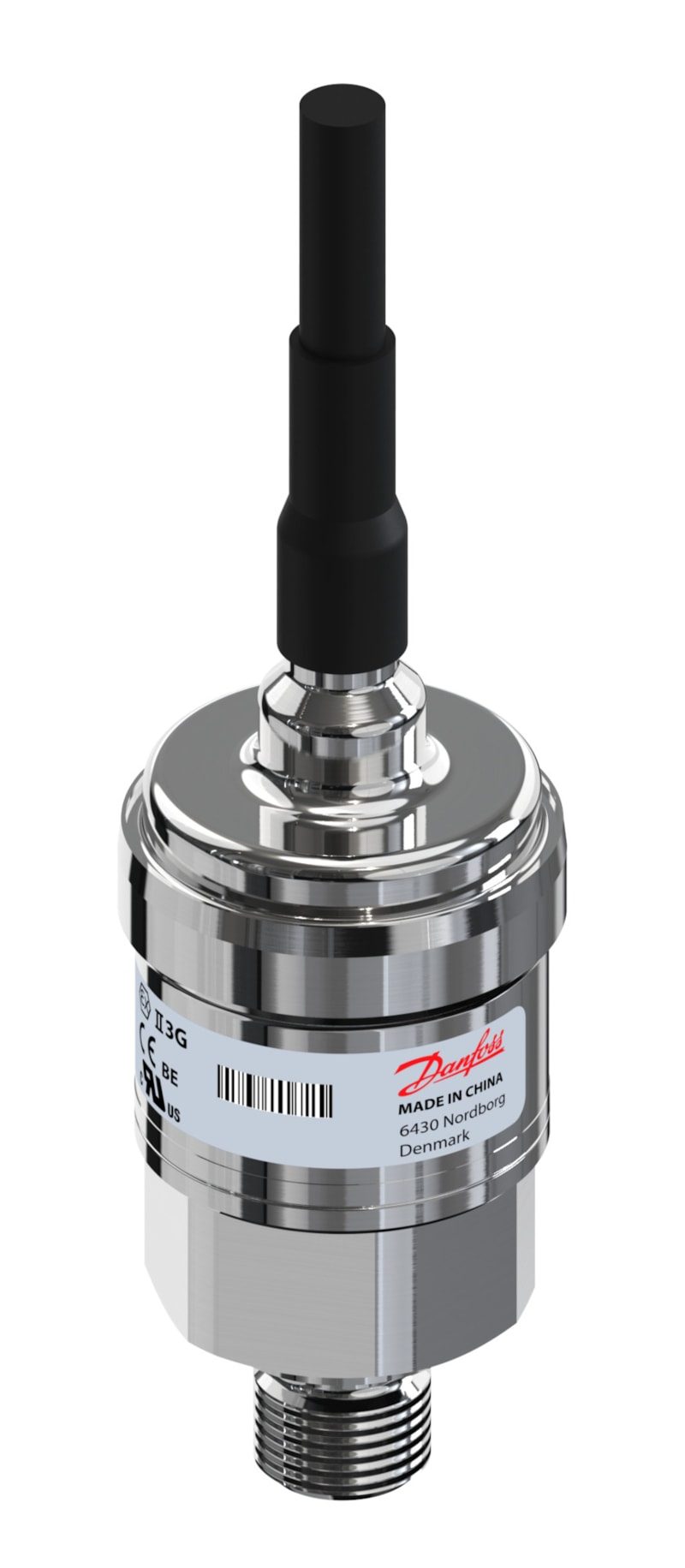

Danfoss MBS 3350 Pressure Transmitter 0 to 6 bar

Danfoss MBS 3350 pressure transmitter with integral cable for washdown and marine environments. Range 0 to 6 bar (0 to 87 psi), 4-20 mA output, 316L stainless steel wetted parts. G 1/4 Form E connection; screened 2 m cable (IP67). EAN 5702428882644.

Type

MBS 3350 (cable version)

Range

0 to 6 bar (0 to 87 psi)

Output

4-20 mA (2-wire)

Supply

9-32 V DC

Wetted parts

AISI 316L stainless steel

Pressure connection

G 1/4 (DIN 3852-E, Form E)

Electrical connection

Screened cable, 2 m

Enclosure

IP67

Media temp

-40 to 85°C

EAN

5702428882644

Part number

060G6330

Code number

060G6330

Product group

Sensors

Ambient temperature range

-30 °C to 100 °C

Approval

C UL US UL Recognized; CE

UL mark

Yes

CE mark

Yes

REACH candidate-list substances

Lead (CAS no. 7439-92-1)

Net weight

0.307 kg

Accuracy, max.

1.00 %

Accuracy, typical

0.5 %

Adj. zero point and span

No

Cable length

79.00 in, 2.000 m

Compensated temp. range

0 °C to 100 °C

EEE category

5 small equipment (any external dimension < 50 cm)

Electrical conn. comments

screened ship

Enclosure rating IP

IP67

Flush diaphragm

No

High Clipping Level

22.40

In scope of WEEE

Yes

Intrinsically safe

No

Low Clipping level

3.60

Negative / common

Black

Non-linearity BFSL

0.20 %

Output signal

Current, 4 mA to 20 mA

Overload pressure max.

36.0 bar

Pressure connection HEX

27.0 mm

Pressure connection size

1/4

Pressure connection standard

DIN 3852-E; ISO 1179-2 (Form E)

Pressure connection type

G

Material

AISI 316L stainless steel wetted parts

Thread Standard

DIN 3852-E / ISO 1179-2 (Form E)

Pressure Rating

0 to 6 bar

Temperature Range

-40°C to +85°C (medium/ambient)

IP Rating

IP67

Classification / Approval

EAC; RoHS

HS Code

9026.20
