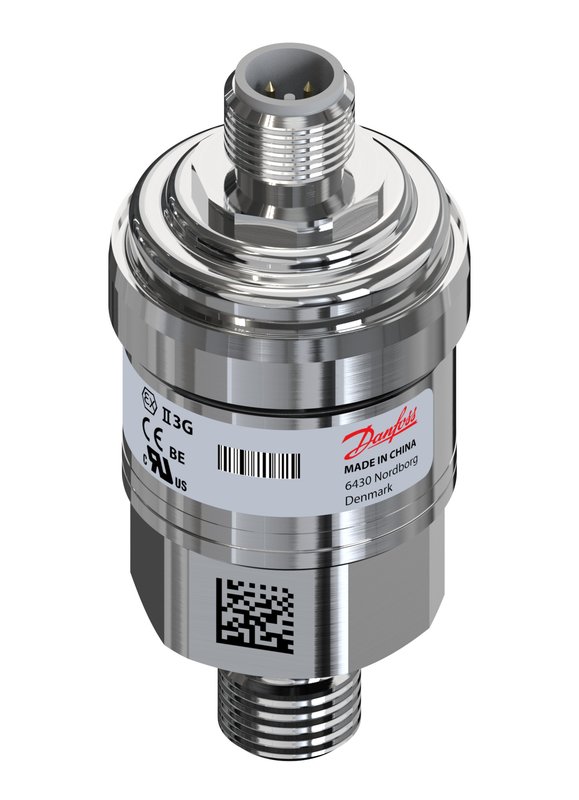

Danfoss MBS 3050 Pressure Transmitter 0 to 400 bar

Danfoss MBS 3050 pressure transmitter with pulse snubber. Range 0 to 400 bar (0 to 5800 psi), 4-20 mA output, 316L stainless steel wetted parts. G 1/4 Form E connection; M12 x 1 4-pin plug (IP67). EAN 5702423115259.

Type

MBS 3050 (with pressure snubber)

Range

0 to 400 bar (0 to 5800 psi)

Output

4-20 mA (2-wire)

Supply

9-32 V DC

Wetted parts

AISI 316L stainless steel

Pressure connection

G 1/4 (DIN 3852-E, Form E)

Electrical connection

M12 x 1, 4-pin, IEC 61076-2-101

Enclosure

IP67

Media temp

-40 to 85°C

EAN

5702423115259

Part number

060G1441

Code number

060G1441

Product group

Sensors

Ambient temperature range

-25 °C to 85 °C

Approval

C UL US UL Recognized; CE

UL mark

Yes

CE mark

Yes

REACH candidate-list substances

Lead (CAS no. 7439-92-1)

Net weight

0.142 kg

Accuracy, max.

1.00 %

Accuracy, typical

0.5 %

Adj. zero point and span

No

Compensated temp. range

0 °C to 80 °C

EEE category

5 small equipment (any external dimension < 50 cm)

Electrical conn. Male/Female

Male

Electrical connection size

4 pin

Electrical connection standard

IEC 61076-2-101

Enclosure rating IP

IP67

Flush diaphragm

No

High Clipping Level

22.40

In scope of WEEE

Yes

Intrinsically safe

No

Low Clipping level

3.60

Negative / common

Pin 4

Non-linearity BFSL

0.50 %

Output signal

Current, 4 mA to 20 mA

Overload pressure max.

600.0 bar

Pressure connection HEX

27.0 mm

Pressure connection size

1/4

Pressure connection standard

DIN 3852-E; ISO 1179-2 (Form E)

Material

AISI 316L stainless steel wetted parts

Thread Standard

DIN 3852-E / ISO 1179-2 (Form E)

Pressure Rating

0 to 400 bar

Temperature Range

-40°C to +85°C (medium/ambient)

IP Rating

IP67

Classification / Approval

EAC; RoHS

HS Code

9026.20
