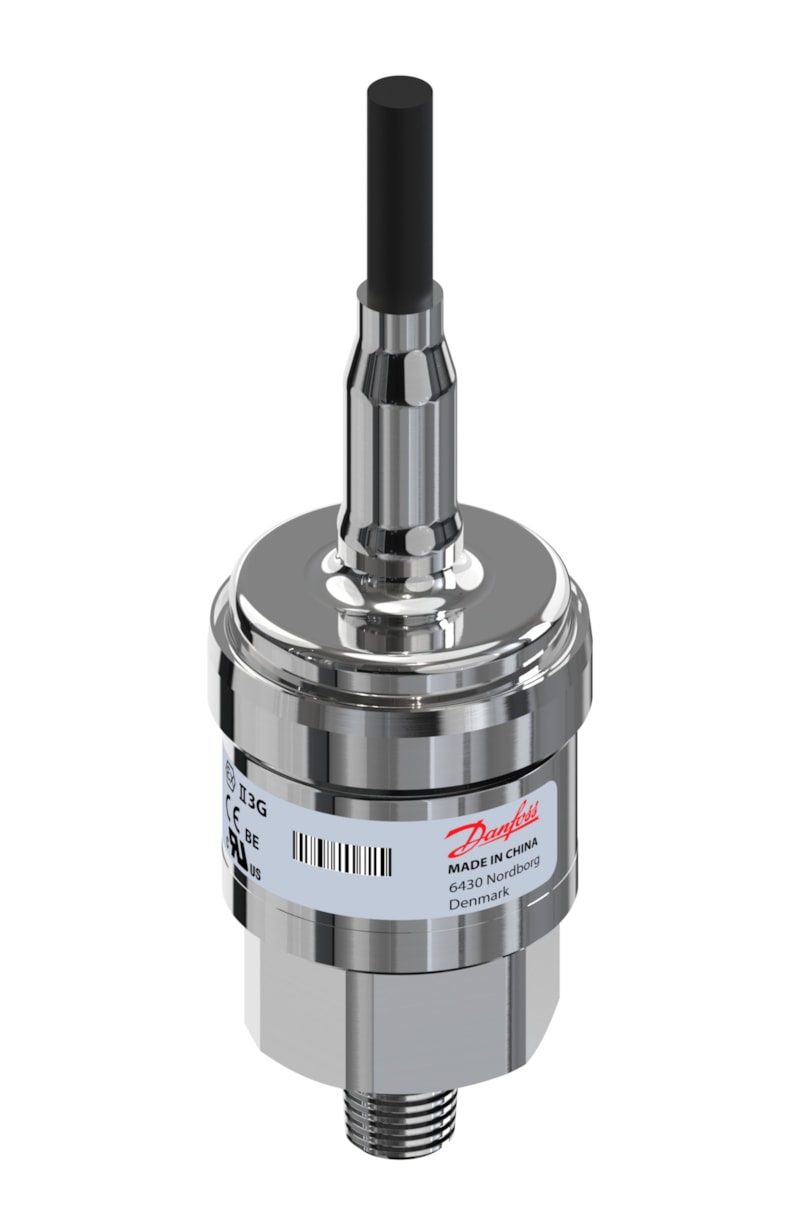

Danfoss AKS 32 Pressure Transmitter 0 to 13.8 bar (0-200 psi)

Danfoss AKS 32 pressure transmitter for refrigeration and air-conditioning. Measuring range 0 to 13.8 bar (0 to 200 psi), ratiometric voltage output 1-5 V DC, digitally compensated ceramic/silicon sensor with 316L stainless steel wetted parts. Pressure connection 1/8-27 NPT; electrical connection screened 2 m cable. EAN 5702422067825.

Type

AKS 32

Range

0 to 13.8 bar (0 to 200 psi)

Output

1-5 V DC (ratiometric)

Supply

5 V DC ±0.25%

Wetted parts

AISI 316L stainless steel

Pressure connection

1/8-27 NPT (male)

Electrical connection

Screened cable, 2 m

Enclosure

IP65

Media temp

-40 to 85°C

EAN

5702422067825

Part number

060G2030

Code number

060G2030

Product group

Sensors

Ambient temperature range

-40 °C to 85 °C

Approval

ATEX; C UL US UL Recognized; CE; GOST POCC

Approval standard

6967179; E227388; E31024

UL mark

Yes

CE mark

Yes

REACH candidate-list substances

Lead (CAS no. 7439-92-1)

Net weight

0.216 kg

Accuracy, max.

0.80 %

Accuracy, typical

0.3 %

Adj. zero point and span

No

Cable length

79.00 in, 2.000 m

Compensated temp. range

-30 °C to 40 °C

EEE category

5 small equipment (any external dimension < 50 cm)

Electrical conn. comments

Screened

Enclosure rating IP

IP67

Flush diaphragm

No

High Clipping Level

5.60

In scope of WEEE

Yes

Intrinsically safe

No

Low Clipping level

0.10

Negative / common

Black

Non-linearity BFSL

0.20 %

Output signal

Voltage, 1.0000 V to 5.0000 V

Overload pressure max.

400 psi

Pressure connection size

1/8-27

Pressure connection standard

ANSI/ASME B1.20.1

Pressure connection type

NPT

Material

AISI 316L stainless steel wetted parts

Thread Standard

ANSI/ASME B1.20.1

Pressure Rating

0 to 13.8 bar

Temperature Range

-40°C to +85°C (medium/ambient)

IP Rating

IP67

Classification / Approval

EAC; RoHS

HS Code

9026.20
