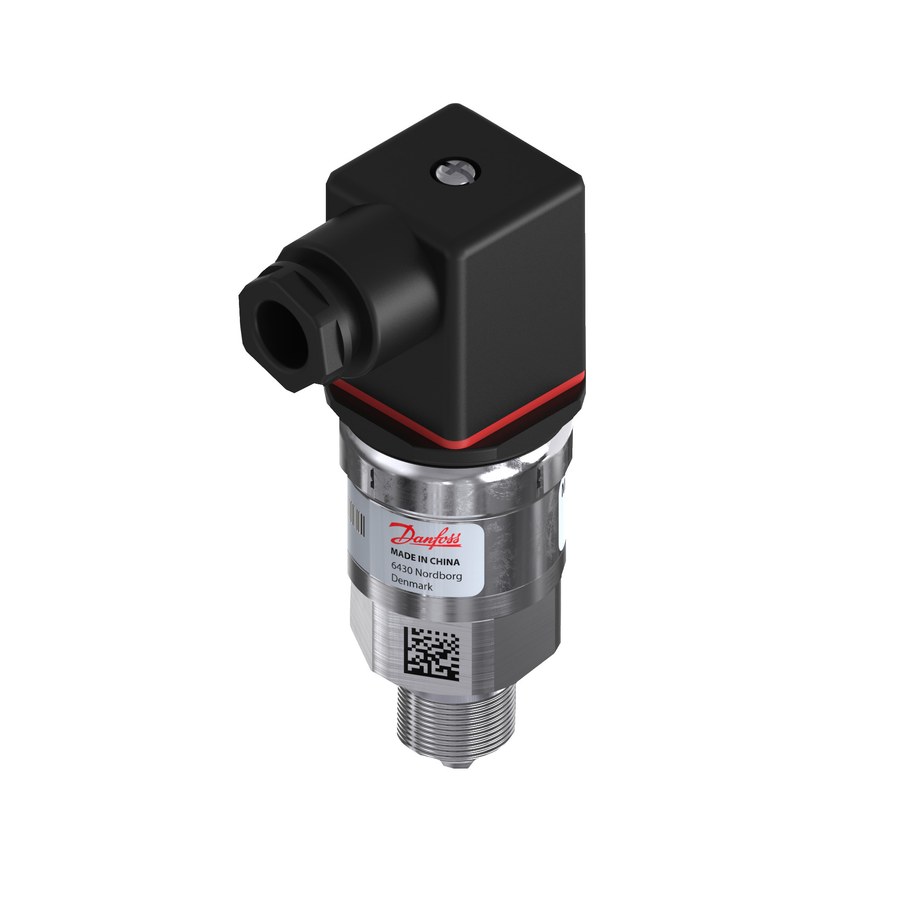

Danfoss AKS 32 Pressure Transmitter -1 to 34 bar (060G2007)
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss AKS 32 pressure transmitter for refrigeration and air-conditioning. Measuring range -1 to 34 bar (-14.5 to 493 psi), ratiometric voltage output 1-5 V DC, digitally compensated ceramic/silicon sensor with 316L stainless steel wetted parts. Pressure connection G 3/8 (EN 837); electrical connection angular connector Pg 9. EAN 5702422067733.
Technical Specifications
- Type
- AKS 32
- Range
- -1 to 34 bar (-14.5 to 493 psi)
- Output
- 1-5 V DC (ratiometric)
- Supply
- 5 V DC ±0.25%
- Wetted parts
- AISI 316L stainless steel
- Pressure connection
- G 3/8 (male, EN 837)
- Electrical connection
- Angular connector Pg 9, EN 175301-803-A
- Enclosure
- IP65
- Media temp
- -40 to 85°C
- EAN
- 5702422067733
- Part number
- 060G2007
- Code number
- 060G2007
- Product group
- Sensors
- Ambient temperature range
- -40 °C to 85 °C
- Approval
- ATEX; C UL US UL Recognized; CE; GOST POCC
- Approval standard
- 6967179; E227388; E31024
- UL mark
- Yes
- CE mark
- Yes
- REACH candidate-list substances
- Lead (CAS no. 7439-92-1)
- Net weight
- 0.168 kg
- Accuracy, max.
- 0.80 %
- Accuracy, typical
- 0.3 %
- Adj. zero point and span
- No
- Compensated temp. range
- 0 °C to 80 °C
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical conn. Male/Female
- Male and Female
- Electrical connection size
- Pg 9
- Electrical connection standard
- EN 175301-803-A
- Enclosure rating IP
- IP65
- Flush diaphragm
- No
- High Clipping Level
- 5.60
- In scope of WEEE
- Yes
- Intrinsically safe
- No
- Low Clipping level
- 0.10
- Negative / common
- Pin 2
- Non-linearity BFSL
- 0.20 %
- Output signal
- Voltage, 1.0000 V to 5.0000 V
- Overload pressure max.
- 55.0 bar
- Pressure connection size
- 3/8
- Pressure connection standard
- EN 837
Standards & Compliance
- Material
- AISI 316L stainless steel wetted parts
- Thread Standard
- EN 837
- Pressure Rating
- -1 to 34 bar
- Temperature Range
- -40°C to +85°C (medium/ambient)
- IP Rating
- IP65
- Classification / Approval
- EAC; RoHS
- HS Code
- 9026.20
Compatibility & Fitment
Voltage-output (1-5 V) G 3/8 variant of the -1 to 34 bar range (cf. NPT-cable 060G2003).
