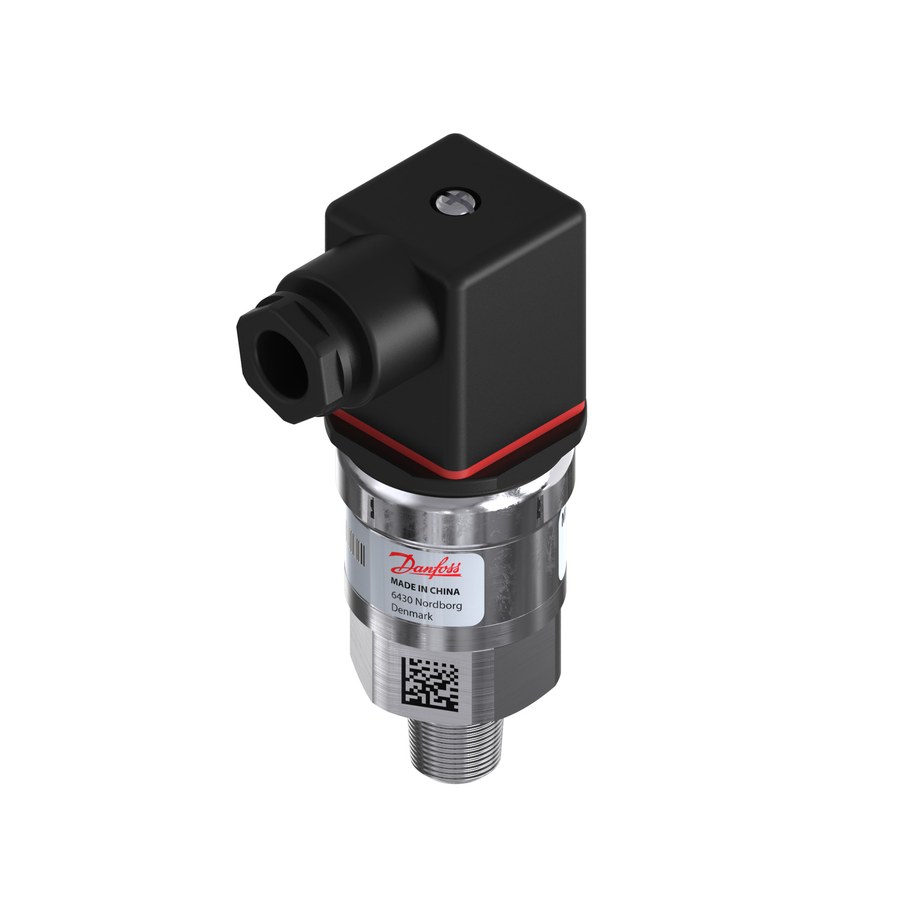

Danfoss AKS 32 Pressure Transmitter -1 to 12 bar (060G2001)

Danfoss AKS 32 pressure transmitter for refrigeration and air-conditioning. Measuring range -1 to 12 bar (-14.5 to 174 psi), ratiometric voltage output 1-5 V DC, digitally compensated ceramic/silicon sensor with 316L stainless steel wetted parts. Pressure connection 1/4-18 NPT; electrical connection angular connector Pg 9. EAN 5702422067849.

Type

AKS 32

Range

-1 to 12 bar (-14.5 to 174 psi)

Output

1-5 V DC (ratiometric)

Supply

5 V DC ±0.25%

Wetted parts

AISI 316L stainless steel

Pressure connection

1/4-18 NPT (male)

Electrical connection

Angular connector Pg 9, EN 175301-803-A

Enclosure

IP65

Media temp

-40 to 85°C

EAN

5702422067849

Part number

060G2001

Code number

060G2001

Product group

Sensors

Ambient temperature range

-40 °C to 85 °C

Approval

ATEX; C UL US UL Recognized; CE; GOST POCC

Approval standard

6967179; E227388; E31024

UL mark

Yes

CE mark

Yes

REACH candidate-list substances

Lead (CAS no. 7439-92-1)

Net weight

0.158 kg

Accuracy, max.

0.80 %

Accuracy, typical

0.3 %

Adj. zero point and span

No

Compensated temp. range

-30 °C to 40 °C

EEE category

5 small equipment (any external dimension < 50 cm)

Electrical conn. Male/Female

Male and Female

Electrical connection size

Pg 9

Electrical connection standard

EN 175301-803-A

Enclosure rating IP

IP65

Flush diaphragm

No

High Clipping Level

5.60

In scope of WEEE

Yes

Intrinsically safe

No

Low Clipping level

0.10

Negative / common

Pin 2

Non-linearity BFSL

0.20 %

Output signal

Voltage, 1.0000 V to 5.0000 V

Overload pressure max.

33.0 bar

Pressure connection size

1/4-18

Pressure connection standard

ANSI/ASME B1.20.1

Material

AISI 316L stainless steel wetted parts

Thread Standard

ANSI/ASME B1.20.1

Pressure Rating

-1 to 12 bar

Temperature Range

-40°C to +85°C (medium/ambient)

IP Rating

IP65

Classification / Approval

EAC; RoHS

HS Code

9026.20
