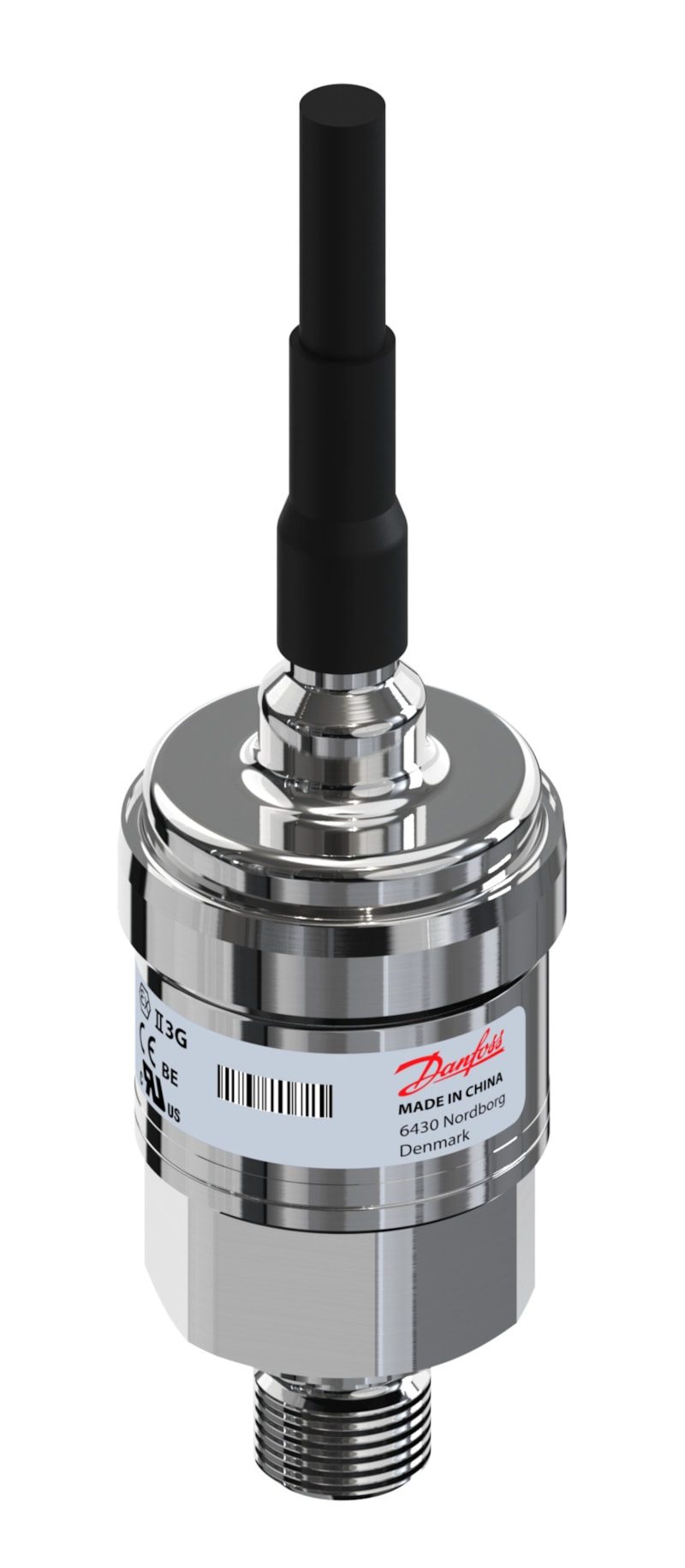

Danfoss MBS 3250 Pressure Transmitter 0–400 bar 4–20 mA

Danfoss MBS 3250 pressure transmitter, genuine OEM code 060G6152. Output 4–20 mA (2-wire) over a measuring range of 0–400 bar (0–5800 psi), supply voltage 9–32 V DC. Pressure connection G 1/4 male (DIN 3852-E / ISO 1179-2, Form E); electrical connection Cable, 0.5 m screened. Pressure reference sealed gauge. Accuracy ≤ ±0.5 % FS typical, ≤ ±1.0 % FS maximum. Wetted parts AISI 316L stainless steel; enclosure IP67. Approvals: ATEX Ex ec IIA T4 Gc, CE, UL Recognized (C UL US). EAN 5702423302949.

Brand

Danfoss

Part number

060G6152

Type

MBS 3250 pressure transmitter

Category

Sensors & Instrumentation — Pressure Transmitters

Measuring range

0–400 bar (0–5800 psi)

Reference

sealed gauge

Output signal

4–20 mA (2-wire)

Supply voltage

9–32 V DC

Accuracy

≤ ±0.5 % FS typical, ≤ ±1.0 % FS maximum

Pressure connection

G 1/4 male (DIN 3852-E / ISO 1179-2, Form E)

Electrical connection

Cable, 0.5 m screened

Wetted parts

AISI 316L stainless steel

Ambient temperature

-30 to +85 °C

Enclosure rating

IP67

EAN

5702423302949

Approvals

ATEX Ex ec IIA T4 Gc, CE, UL Recognized (C UL US)

HS code

9026.20

Net weight

0.17 Kilogram

Product group

Sensors

+ supply

Brown

- common

Black

Accuracy, max. [±FS%]

1 %

Accuracy, typical [±FS%]

0.5 %

Adj. zero point and span

No

Ambient temperature range [°C] [max]

85 °C

Ambient temperature range [°C] [min]

-30 °C

Ambient temperature range [°F] [max]

185 °F

Ambient temperature range [°F] [min]

-22 °F

Approval

ATEX

Approval comments

ATEX Ex ec IIA T4 Gc

Autofrettage Pressure

1600 bar

Cable length [in]

19.7 in

Cable length [m]

0.5 m

CE mark

Yes

China RoHS compliance

Out of scope

Compensated temp. range [°C] [max]

100 °C

Compensated temp. range [°C] [min]

0 °C

Compensated temp. range [°F] [max]

212 °F

Compensated temp. range [°F] [min]

32 °F

EEE category

5 small equipment (any external dimension < 50 cm)

Electrical conn. comments

Screened

Enclosure rating IP

IP67

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Flush diaphragm

No

High Clipping Level

22.4

In scope of WEEE

Yes

International Article Number

5702423302949

Intrinsically safe

No

Low Clipping level

3.6

Medium temperature range [°C] [max]

85 °C

Medium temperature range [°C] [min]

-20 °C

Medium temperature range [°F] [max]

257 °F

Medium temperature range [°F] [min]

-4 °F

Non-linearity BFSL [±FS%]

0.2 %

Output signal [mA] [max]

20 mA

Output signal [mA] [min]

4 mA

Overload pressure max. [bar]

1500 bar

Overload pressure max. [psi]

21756 psi

Pressure connection HEX [mm]

27 mm

Pressure connection size

1/4

Pressure connection standard

DIN 3852-E

Pressure connection type

G

Pressure Male/Female

Male

Pressure range [bar] [max]

400 bar

Pressure range [bar] [min]

0 bar

Pressure range [psi] [max]

5800 psi

Pressure range [psi] [min]

0 psi

Pressure reference

Sealed gauge

Pulse-snubber

Yes

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Response time max. [ms]

4 ms

Specification key

MBS 3250-3631-DKGB04-1

Supply voltage [V] DC [max]

32 V

Supply voltage [V] DC [min]

9 V

UL mark

Yes

Size / Series

G 1/4 male (DIN 3852-E / ISO 1179-2, Form E)

Material

AISI 316L stainless steel wetted parts

Thread Standard

G 1/4 male (DIN 3852-E / ISO 1179-2, Form E)

Pressure Rating

0–400 bar (0–5800 psi)

Temperature Range

-30 to +85 °C ambient

IP Rating

IP67

HS Code

9026.20
