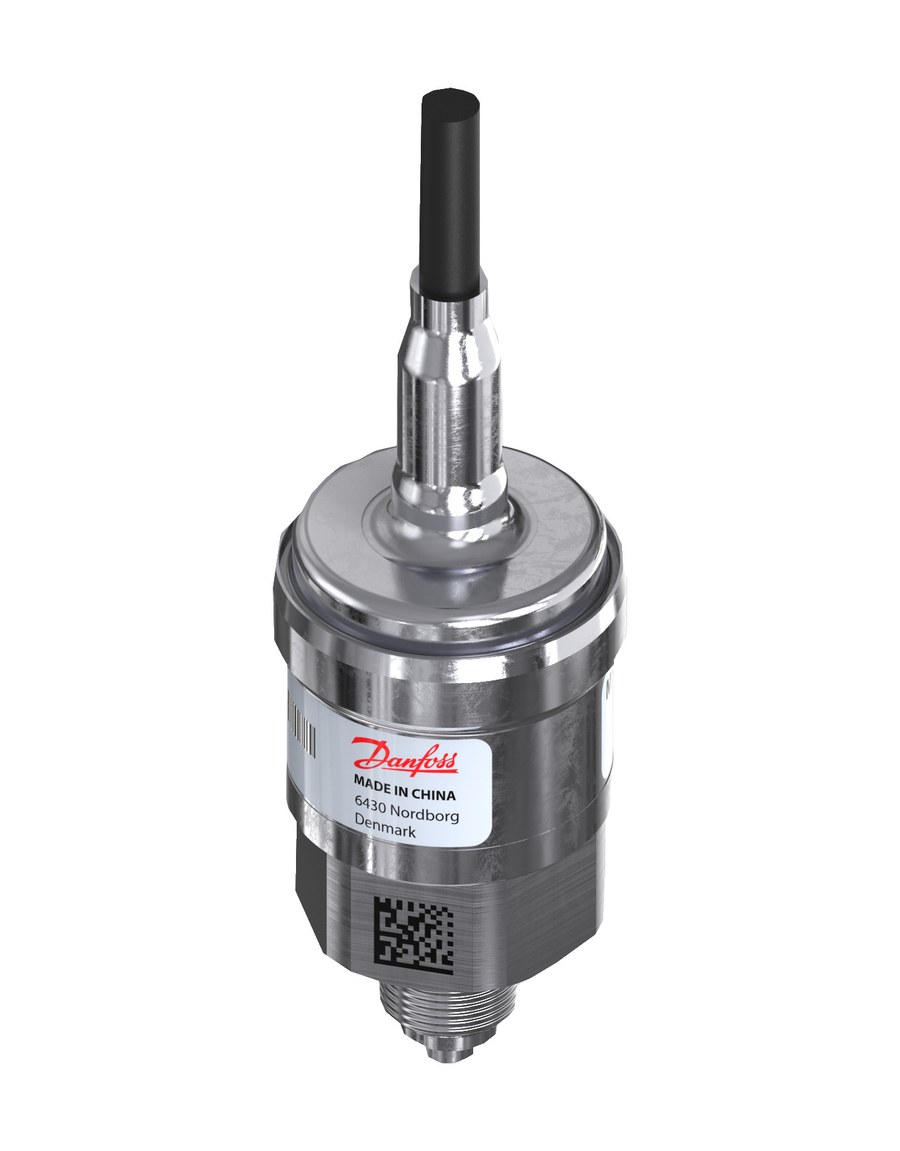

Danfoss MBS 3000 Pressure Transmitter 0-16 bar 4-20 mA G1/4 (060G1130)

Danfoss 060G1130 MBS 3000 0-16 bar. Danfoss OEM. Danfoss pressure sensors for industrial and marine service. Standard 4-20mA output.

Material

316L stainless steel wetted parts

Approval

CE, EAC, UL, ATEX II 1G Ex ia IIC T4 Ga (Ex models), IECEx

Standards

IECEx, IEC 61298-2, IEC 61326, IEC 60770

Approvals

CE

HS code

9031.80

Code number

060G1130

Product type

MBS 3000

Product group

Sensors

Medium temperature range

-40 °C to 85 °C

Ambient temperature range

-30 °C to 85 °C

UL mark

Yes

CE mark

Yes

REACH candidate-list substances

Lead (CAS no. 7439-92-1)

Net weight

0.227 kg

EAN

5702423084593

Accuracy, max.

1.00 %

Accuracy, typical

0.5 %

Adj. zero point and span

No

Cable length

79.00 in, 2.000 m

Compensated temp. range

0 °C to 80 °C

EEE category

5 small equipment (any external dimension < 50 cm)

Electrical conn. comments

Screened

Electrical connection

Cable

Enclosure rating IP

IP67

Flush diaphragm

No

High Clipping Level

22.40

Identical product

060G4084

In scope of WEEE

Yes

Intrinsically safe

No

Low Clipping level

3.60

Negative / common

Black

Non-linearity BFSL

0.50 %

Output signal

Current, 4 mA to 20 mA

Overload pressure max.

96.0 bar

Positive / supply

Brown

Pressure connection HEX

27.0 mm

Pressure connection size

1/4

Pressure connection standard

EN 837

Pressure connection type

G

Pressure Male/Female

Male

Classification-society approval

not listed in the manufacturer approval data for this code.

Material

316L stainless steel wetted parts

Classification / Approval

CE, EAC, UL, ATEX II 1G Ex ia IIC T4 Ga (Ex models), IECEx

HS Code

9031.80
