Danfoss

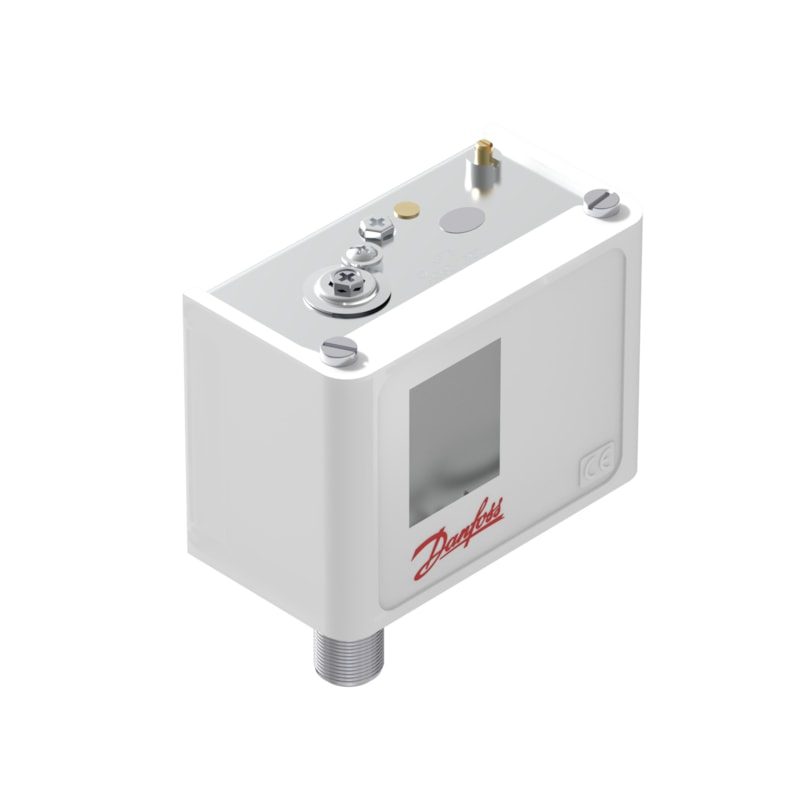

Danfoss 060-1106 KPI-35 HP switch
Part number060-121966Item numberDANFOSS-060-1106EAN / GTIN5702423146734HS code9031.80
CE, EAC, UL, ATEX II 1G Ex ia IIC T4 Ga (Ex models), IECEx, DNV, ABS, LR
Sensors & Instrumentation
Pressure Sensors
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss 060-121966 KPI-35 HP switch. Danfoss OEM. Danfoss pressure sensors for industrial and marine service. Standard 4-20mA output.
Technical Specifications
- Approval
- CE, EAC, UL, ATEX II 1G Ex ia IIC T4 Ga (Ex models), IECEx, DNV, ABS, LR
- Standards
- IECEx, IEC 61298-2
- Approvals
- DNV, ABS, LR, CE
- HS code
- 9031.80
- Code number
- 060-121966
- EAN
- 5702423146734
- Differential
- 0.50 bar to 2.00 bar
- Max. Working Pressure
- 18.0 bar
- Ambient temperature range
- -40 °C to 65 °C
- Net weight
- 0.313 Kilogram
- Contact function
- SPDT
- Contact rating
- AC15=4 A, 440 V / AC1=10 A, 440 V / AC3=6 A, 440 V / DC13=12 W, 220 V / LR=36 A, 240 V / LR=48 A, 120 V
- Electrical connection
- Rubber cable gland
- Electrical connection size
- 6-14 mm
- EN 60947 electrical properties
- Insulation: 400V / Pollution degree: 3 / Rated impulse voltage: 4 kV / Short circuit prot, fuse: 16A
- EN 60947 wiring properties
- Flex, ferrules: 0.5-1.5 mm2 / Flex, no ferrules: 0.7-2.5 mm2 / Solid/stranded: 0.75-2.5 mm2
- Enclosure rating IP
- IP30
- Enclosure rating Nema (~)
- 1
- EPD available
- Yes
- Identical product
- 060-122466
- Max. test pressure [bar] Pe
- 18.0 bar
- Pressure connection size
- 1/4
- Pressure connection standard
- ISO 228-1
- Pressure connection type
- G
- Pressure Male/Female
- Male
- Pressure sensing element
- Bellows
- Product accessories
- Switches accessories
- Product description
- Pressure Switch
- Product Type
- KPI35
- Proposition 65
- Cancer and Reproductive Harm
- Quantity per packing format
- 36 pc
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1) / Cadmium oxide (CAS no.1306-19-0)
- Regulation range
- 6 inHg - 116 psig
- Reset function
- Auto
- SCIP dossier no.
- 1b8fc5ed-65e2-48fc-8738-8cce613a9786
- SCIP dossier product name
- KP KPI
- Serviceable
- No
- UL approval file name
- E31024
- UL mark
- Yes
- Regulation range [bar] Pe
- -0.20 bar to 8.00 bar
Standards & Compliance
- Classification / Approval
- CE, EAC, UL, ATEX II 1G Ex ia IIC T4 Ga (Ex models), IECEx, DNV, ABS, LR
- HS Code
- 9031.80
Compatibility & Fitment
Standard 4-20mA output. Check pressure/temperature range and thread.
Not sure if it fits? Email sales@cballast.com with your equipment serial number or photos — we confirm fit before you order.
Product Documentation
Document preview: KP / KPI Pressure Switch Datasheet
