Product Description

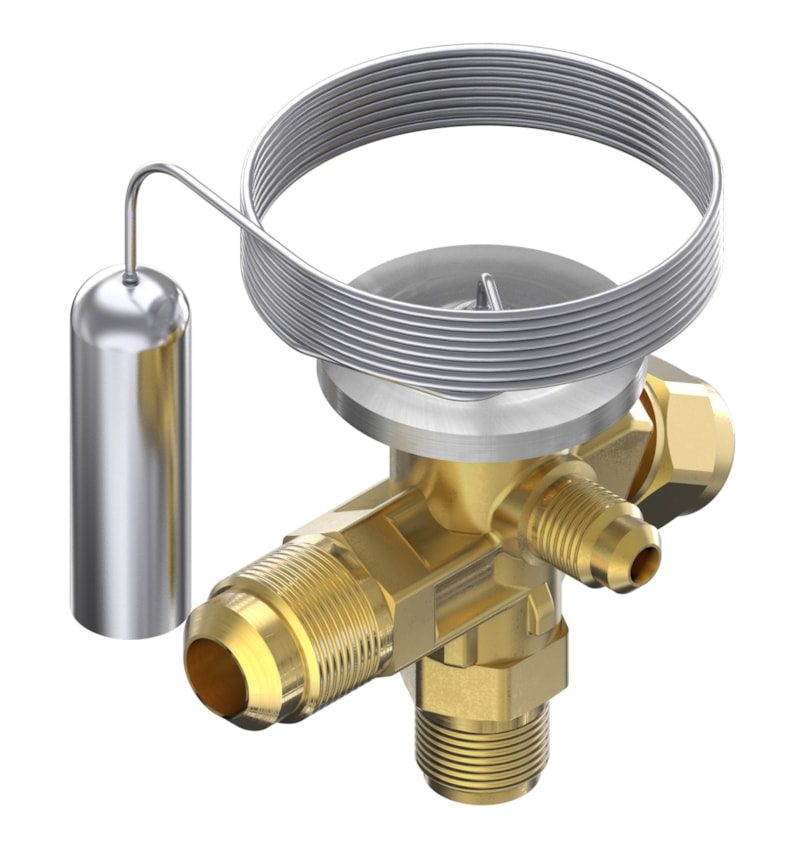

Danfoss 068Z3210 TES 2 R404A TXV. Danfoss OEM. Danfoss expansion valves for industrial and marine service. Refrigerant compatibility listed. Used in commercial refrigeration, provision-room cooling and reefer plant rooms across HFC, HFO and CO2 (R744) refrigerants.
Technical Specifications
- Approval
- CE, EAC, PED 2014/68/EU, EN 12178, EN 12284, UL
- Standards
- EN 12178, EN 12284
- Approvals
- CE, UL, EAC, PED
- HS code
- 8481.80
- MPN
- 068Z3210
- EAN
- 5702422118411
- Net weight
- 0.293 Kilogram
- Type
- TE 2
- Product group
- Expansion valves
- Body material
- Brass
- Capillary tube length [in]
- 59 in
- Capillary tube length [mm]
- 1500 mm
- China RoHS compliance
- Yes with exemptions
- China RoHS exemption clause
- 7.1
- Connection Code
- (3011:X:10; 3011:X:13)
- Connection material
- Brass
- Direction
- Angleway
- Equalization connection type
- Flare
- Equalization size [in]
- 1/4 in
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(a)
- Flow direction
- Bi-flow with orifice 01-05
- Flow direction indicator
- Embossed 1-way arrow
- Fluid Group
- 2
- Identical product
- 068Z3602
- Inlet connection type
- Flare
- Inlet size [in]
- 3/8 in
- Max. Working Pressure [bar]
- 34 bar
- Max. Working Pressure [psig]
- 500 psig
- Outlet connection type
- Flare
- Outlet size [in]
- 1/2 in
- Parts included
- Bulb strap
- PED category
- Art. 4, par. 3
- Pressure equalization
- Externally equalized
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Refrigerants
- R22/R407C
- Static Superheat (SS) [°C]
- 4 °C
- Static Superheat (SS) [°F]
- 7.2 °F
- Superheat setting
- Adjustable
- Temperature range [°C] [max]
- -25 °C
- Temperature range [°C] [min]
- -60 °C
- Temperature range [°F] [max]
- -15 °F
- Temperature range [°F] [min]
- -75 °F
Standards & Compliance
- Classification / Approval
- CE, EAC, PED 2014/68/EU, EN 12178, EN 12284, UL
- HS Code
- 8481.80
Compatibility & Fitment
Refrigerant compatibility listed. Verify with your system spec.
