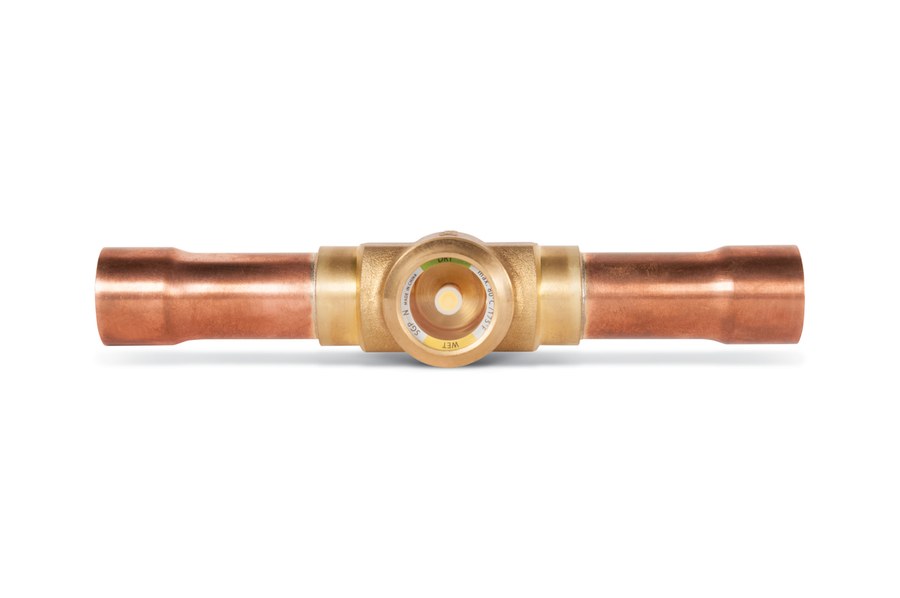

Danfoss SGN 22S sight glass 7/8 in solder
Part number014L0186Item numberDANFOSS-014L0186EAN / GTIN5702428818803HS code8418.69
CE, EAC, PED 2014/68/EU, EN 12178, EN 12284, UL
HVAC & Refrigeration
Sight Glasses
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss SGN 22s moisture-indicating sight glass, 7/8 in (22 mm) solder ODF connections. Brass body with copper connections, max working pressure 35 bar (500 psig), operating range -50 to +80 degC. The N-type indicator changes colour with refrigerant moisture content.
Technical Specifications
- Brand
- Danfoss
- Part number
- 014L0186
- Series
- SGN 22s
- Connection
- 7/8 in (22 mm) solder, ODF
- Body
- brass with copper connections
- Max working pressure
- 35 bar (500 psig)
- Temperature range
- -50 to +80 degC
- Moisture indicator
- N type (colour-change)
- Category
- Sight Glasses
- Approvals
- CE, EAC, PED 2014/68/EU, EN 12178, EN 12284
- Code number
- 014L0186
- Product group
- Sight glasses
- Connection material
- Copper
- Inlet connection type
- Solder, ODF
- Inlet size
- 22.00 mm
- Outlet connection type
- Solder, ODF
- Outlet size
- 22.00 mm
- Refrigerants
- R1233zd(E); R1234yf; R1234ze(E); R1270; R134a; R22; R32; R404A; R407A; R407C; R407F; R407H; R410A; R448A; R449A; R450A; R452A; R452B; R454B; R454C; R455A; R463A; R507A; R513A; R515B; R744
- Lubricants compatibility
- Oilfree applications
- Approval file name
- REF. LIQUID INDICATOR 76H4
- UL approval file name
- REF. LIQUID INDICATOR 76H4
- UL approved refrigerants
- R1233zd(E); R134a; R22; R404A; R407A; R407C; R407F; R407H; R410A; R448A; R449A; R450A; R452A; R463A; R507A; R513A; R515B; R744
- UL mark
- Yes
- REACH candidate-list substances
- Lead (CAS no. 7439-92-1); Cobalt dichloride (CAS no. 7646-79-9)
- Net weight
- 0.297 kg
- EAN
- 5702428818803
- EPD available
- Yes
- Green
- max moist con@25 °C: R1234ze(E): 26 ppm; R1270: 16 ppm; R134a: 30 ppm; R22: 30 ppm; R32: 64 ppm; R404A: 20 ppm; R407A: 29 ppm; R407C: 30 ppm; R407F: 30 ppm; R410A: 66 ppm; R448A: 28 ppm; R449A: 29 ppm; R450A: 23 ppm; R452A: 20 ppm; R454B: 29 ppm; R507A: 15 ppm; R513A: 22 ppm
- Green
- max moist con@43 °C: R1234ze(E): 28 ppm; R1270: 29 ppm; R134a: 45 ppm; R22: 50 ppm; R32: 116 ppm; R404A: 25 ppm; R407A: 48 ppm; R407C: 60 ppm; R407F: 60 ppm; R410A: 135 ppm; R448A: 70 ppm; R449A: 53 ppm; R450A: 46 ppm; R452A: 30 ppm; R454B: 58 ppm; R507A: 30 ppm; R513A: 22 ppm
- Identical product
- 014L0200
- Ignition source assessment
- Yes
- Oil free refrigerants
- R1234ze(E); R134a; R513A; R515B
- Other RoHS documentation
- Saudi Arabia RoHS
- Yellow
- min moist con@25 °C: R1234ze(E): 132 ppm; R1270: 62 ppm; R134a: 100 ppm; R22: 120 ppm; R32: 289 ppm; R404A: 70 ppm; R407A: 115 ppm; R407C: 140 ppm; R407F: 168 ppm; R410A: 266 ppm; R448A: 110 ppm; R449A: 105 ppm; R450A: 148 ppm; R452A: 79 ppm; R454B: 161 ppm; R507A: 60 ppm; R513A: 75 ppm
- Yellow
- min moist con@43 °C: R1234ze(E): 165 ppm; R1270: 115 ppm; R134a: 170 ppm; R22: 200 ppm; R32: 459 ppm; R404A: 100 ppm; R407A: 192 ppm; R407C: 225 ppm; R407F: 240 ppm; R410A: 540 ppm; R448A: 227 ppm; R449A: 200 ppm; R450A: 245 ppm; R452A: 143 ppm; R454B: 250 ppm; R507A: 110 ppm; R513A: 123 ppm
- EU RoHS compliance
- Yes with exemptions
Standards & Compliance
- Classification / Approval
- CE, EAC, PED 2014/68/EU, EN 12178, EN 12284, UL
- HS Code
- 8418.69
Compatibility & Fitment
Refrigerant compatibility listed. Verify with your system spec.
Not sure if it fits? Email sales@cballast.com with your equipment serial number or photos — we confirm fit before you order.
