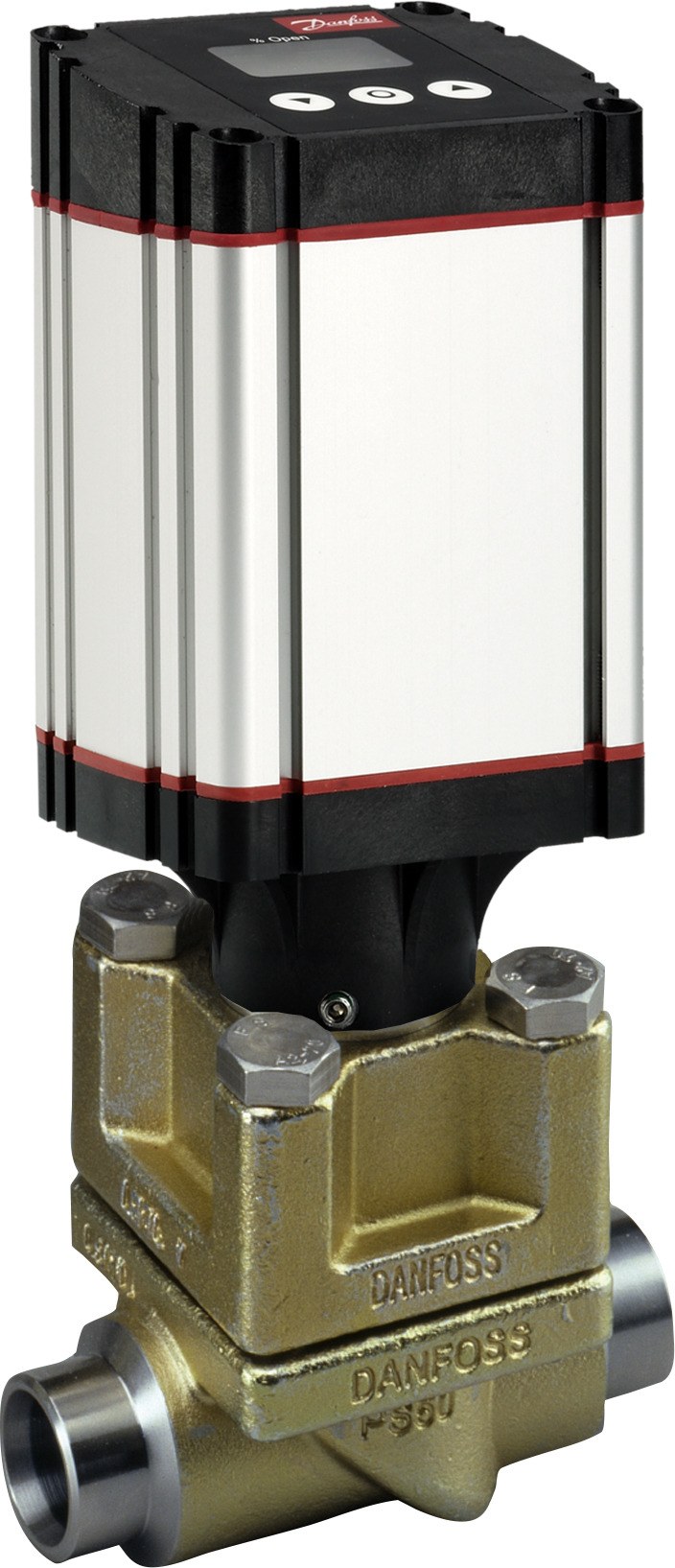

Danfoss 027H5094 ICM 20-A motor valve
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss 027H1030 ICM 20-A motor valve. Danfoss OEM. Danfoss expansion valves for industrial and marine service. Refrigerant compatibility listed. Used in commercial refrigeration, provision-room cooling and reefer plant rooms across HFC, HFO and CO2 (R744) refrigerants.
Technical Specifications
- Approval
- CE, EAC, PED 2014/68/EU, EN 12178, EN 12284, UL
- Standards
- EN 12178, EN 12284
- Approvals
- CE, UL, EAC, PED
- HS code
- 8481.80
- Code number
- 027H1030
- Brand
- ICV Flexline
- Product type
- ICM 20-A
- Product group
- Press. and temp. regul. valves
- Direction
- Straightway
- Valve operation
- Motor operated
- Body material
- Steel
- Connection material
- Steel
- Connection standard
- EN 10220
- Inlet connection size
- 20.00 mm
- Inlet connection type
- Butt weld
- Outlet connection size
- 20.0 mm
- Outlet connection type
- Butt weld
- Kv value
- 0.600 m³/h
- Cv value
- 0.700 gal/min
- Max. working pressure
- 52.0 bar
- MaxOPD
- 52.0 bar
- Temperature range
- -60 °C to 120 °C
- Refrigerants
- R1234yf; R1234ze(E); R125; R134a; R170; R22; R227ea; R236fa; R245fa; R290; R32; R401A; R402A; R404A; R407A; R407B; R407C; R407F; R407H; R409A; R410A; R417A; R421A; R422A; R422B; R422D; R438A; R442A; R444B; R447A; R447B; R448A; R449A; R449B; R450A; R452A; R452B; R454A; R454B; R454C; R455A; R463A; R502; R507A; R513A; R513B; R515A; R515B; R516A; R600; R600a; R601; R601a; R717; R744
- Lubricants compatibility
- Oilfree applications
- Fluid Group
- 1
- PED category
- Art. 4, par. 3
- UL approval file name
- REFRIGERANT VALVE 53R0
- UL mark
- Yes
- REACH candidate-list substances
- No
- Net weight
- 1.86 kg
- EAN
- 5702428237352
- Actuator system
- ICAD motor, magnet coupling
- Flow direction indicator
- Embossed 1-way arrow
- Manual operation option
- Via ICAD setting; Via Multifunction tool
- Oil free refrigerants
- R1234ze(E); R134a
- Open/close time
- 3 s
- Surface coating
- Zn (TLP)
- Top cover
- Actuator
- Valve version
- Standard version
- EU RoHS compliance
- Yes
Standards & Compliance
- Classification / Approval
- CE, EAC, PED 2014/68/EU, EN 12178, EN 12284, UL
- HS Code
- 8481.80
Compatibility & Fitment
Refrigerant compatibility listed. Verify with your system spec.
