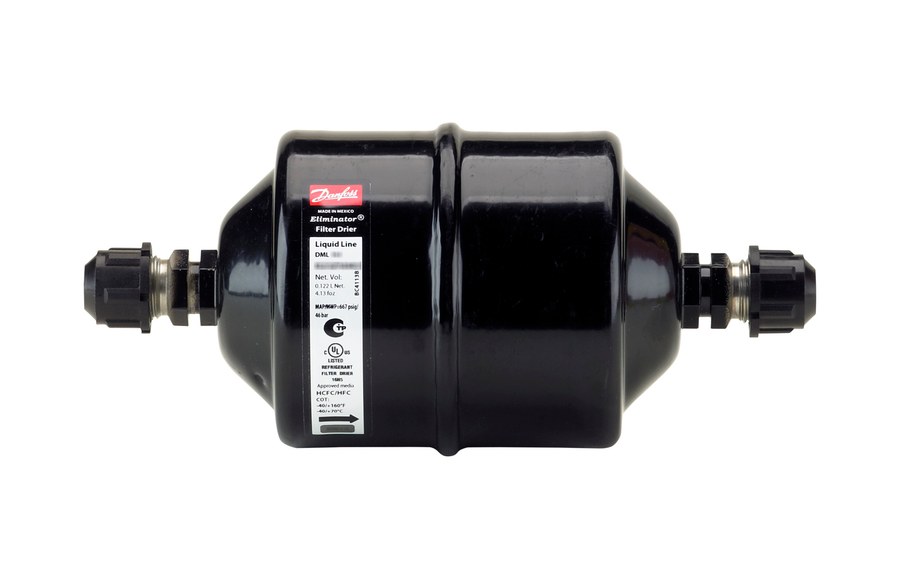

Danfoss DCL-083 filter drier
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss 023Z5042 DCL-083 filter drier. Danfoss OEM. Danfoss filters & driers for industrial and marine service. Refrigerant compatibility listed. Used in commercial refrigeration, provision-room cooling and reefer plant rooms across HFC, HFO and CO2 (R744) refrigerants.
Technical Specifications
- Approval
- CE, EAC, PED 2014/68/EU, EN 12178, EN 12284, UL
- Standards
- EN 12178, EN 12284
- Approvals
- CE, UL, EAC, PED
- HS code
- 8418.69
- Code number
- 023Z5042
- Brand
- ELIMINATOR
- Product type
- DML
- Product group
- Filter driers
- Type designation
- DML 162
- Body material
- Steel
- Connection material
- Steel
- Inlet 1 connection size
- 1/4 in
- Inlet connection size
- 6.00 mm
- Inlet connection type
- Flare
- Outlet 1 connection size
- 1/4 in
- Outlet connection size
- 6.0 mm
- Outlet connection type
- Flare
- Max. working pressure
- 46.0 bar
- Temperature range
- -40 °C to 70 °C
- Refrigerants
- R1233zd(E); R1234yf; R1234ze(E); R125; R134a; R22/R407C; R23; R32; R404A; R407A; R407F; R407H; R410A; R422B; R422D; R438A; R444B; R448A; R449A; R449B; R450A; R452A; R452B; R454A; R454B; R454C; R455A; R463A; R507A; R513A; R515B; R516A
- Lubricants compatibility
- Oilfree applications
- Fluid Group
- 2
- PED category
- Art. 4, par. 3
- UL approval file name
- SA6398
- UL approved refrigerants
- R125; R134a; R22; R23; R404A; R407A; R407C; R407F; R410A; R422B; R422D; R438A; R448A; R449A; R449B; R450A; R452A; R507A; R513A
- UL mark
- Yes
- REACH candidate-list substances
- No
- Net weight
- 0.656 kg
- EAN
- 5702428155717
- Acid capacity
- 1.20 g, 0.042 oz
- Activated alumina
- 0 %
- Braket
- No
- Core
- Solid core
- Core Size code
- 16 cu.in.
- Core type
- Solid core
- Drying Cap[Drops of Water]24°C
- R134a: 559; R290: --; R32: 470; R404A: 582; R407C: 543; R410A: 506; R507: 610
- Drying Cap[Drops of Water]52°C
- R134a: 512; R290: --; R32: 433; R404A: 551; R407C: 500; R410A: 450; R507: 548
- Filter application
- High Moisture Capacity
- Flow capacity [kW]
- R134a: 6.3; R290: --; R32: 9.6; R404A: 4.4; R407C: 6.4; R410A: 6.5; R507: 4.3
- Flow direction indicator
- Label printed 1-way arrow
Standards & Compliance
- Classification / Approval
- CE, EAC, PED 2014/68/EU, EN 12178, EN 12284, UL
- HS Code
- 8418.69
Compatibility & Fitment
Refrigerant compatibility listed. Verify with your system spec.
Product Documentation
