Product Description

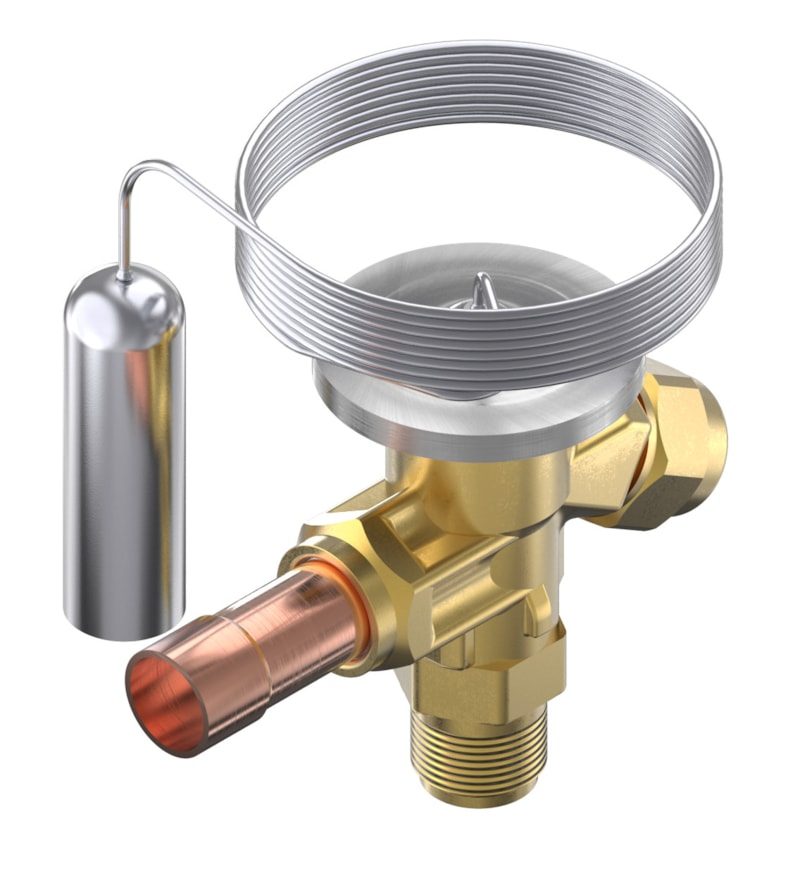

Danfoss 068Z3502 TEZ 2 R407C TXV. Danfoss OEM. Danfoss expansion valves for industrial and marine service. Refrigerant compatibility listed. Used in commercial refrigeration, provision-room cooling and reefer plant rooms across HFC, HFO and CO2 (R744) refrigerants.
Technical Specifications
- Approval
- CE, EAC, PED 2014/68/EU, EN 12178, EN 12284, UL
- Standards
- EN 12178, EN 12284
- Approvals
- CE, UL, EAC, PED
- HS code
- 8481.80
- Code number
- 068Z3502
- Product type
- T 2
- Product group
- Expansion valves
- Direction
- Angleway
- Body material
- Brass
- Connection material
- Brass; Copper
- Inlet connection type
- Flare
- Inlet size
- 3/8 in
- Outlet connection type
- Solder
- Outlet size
- 12.00 mm
- Max. working pressure
- 34.0 bar
- Temperature range
- -40 °C to 10 °C
- Refrigerants
- R407C
- Fluid Group
- 2
- PED category
- Art. 4, par. 3
- REACH candidate-list substances
- Lead (CAS no. 7439-92-1)
- Net weight
- 0.272 kg
- EAN
- 5702428052849
- Capillary tube length
- 1500 mm
- Flow direction
- Single-flow
- Flow direction indicator
- Embossed 1-way arrow
- Parts included
- Bulb strap
- Pressure equalization
- Internally equalized
- Rated cap. cond. Range N [IMP]
- OS=10.8 °F; tcond=100 °F; tevap=40 °F; tliq=98 °F
- Static Superheat (SS)
- 4.00 °C
- Superheat setting
- Adjustable
- EU RoHS compliance
- Yes with exemptions
Standards & Compliance
- Classification / Approval
- CE, EAC, PED 2014/68/EU, EN 12178, EN 12284, UL
- HS Code
- 8481.80
Compatibility & Fitment
Refrigerant compatibility listed. Verify with your system spec.
