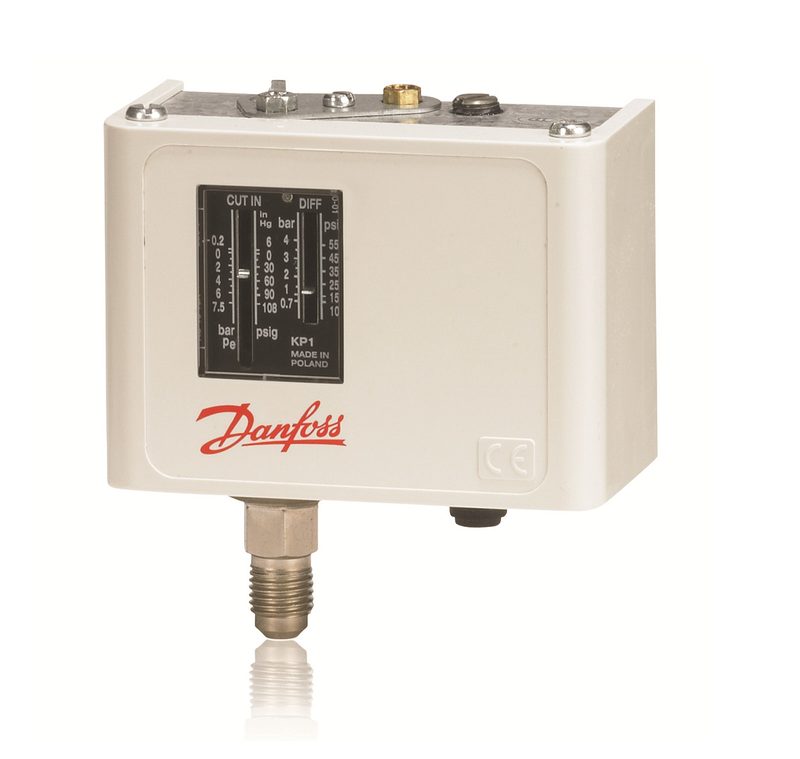

Danfoss 060-120066 KP1 pressure switch
Part number060-110191Item numberDANFOSS-060-120066EAN / GTIN5702424497736HS code9031.80
CE, EAC, UL, ATEX II 1G Ex ia IIC T4 Ga (Ex models), IECEx, DNV, LR
Sensors & Instrumentation
Pressure Sensors
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss 060-110191 KP1 pressure switch. Danfoss OEM. Danfoss pressure sensors for industrial and marine service. Standard 4-20mA output.
Technical Specifications
- Approval
- CE, EAC, UL, ATEX II 1G Ex ia IIC T4 Ga (Ex models), IECEx, DNV, LR
- Standards
- IECEx, IEC 61298-2
- Approvals
- DNV, LR, CE
- HS code
- 9031.80
- Code number
- 060-110191
- Product type
- KP1
- Product group
- Switches and thermostats
- Max. test pressure
- 290.0 psig
- Max. test pressure Pe
- 20.0 bar
- Max. working pressure
- 17.0 bar
- Ambient temperature range
- -25 °C to 65 °C
- Refrigerants
- R113; R1233zd(E); R1234yf; R1234yz; R1234ze(E); R124; R134a; R22; R404A; R407A; R407C; R407F; R407H; R422B; R422D; R438A; R448A; R449A; R449B; R450A; R452A; R454C; R455A; R507A; R513A; R515B
- Lubricants compatibility
- Oilfree applications
- Fluid Group
- 1
- PED category
- IV
- UL approval file name
- E31024; MH27572
- UL approved refrigerants
- R113; R124; R134a; R22; R404A; R407A; R407C; R407F; R407H; R422B; R422D; R438A; R448A; R449A; R449B; R450A; R452A; R507A; R513A; R515B
- UL mark
- Yes
- CE mark
- Yes
- REACH candidate-list substances
- Lead (CAS no. 7439-92-1); Cadmium oxide (CAS no.1306-19-0)
- Net weight
- 0.3 kg
- EAN
- 5702424497736
- Amb. Temp. Note
- 80 °C/176 °F for max 120 min
- Application note
- Not applicable for liquid line
- Contact function
- SPDT
- Contact rating
- AC15=10 A, 400 V; AC1=16 A, 400 V; AC3=16 A, 400 V; DC13=12 W, 220 V; LR=112 A, 400 V
- Differential
- 0.70 bar to 4.00 bar
- Electrical connection
- Rubber cable gland
- Electrical connection size
- 6-14 mm
- EN 60947 electrical properties
- Insulation: 400V; Pollution degree: 3; Rated impulse voltage: 4 kV; Short circuit prot, fuse: 16A
- EN 60947 wiring properties
- Flex, ferrules: 0.5-1.5 mm2; Flex, no ferrules: 0.7-2.5 mm2; Solid/stranded: 0.75-2.5 mm2
- Enclosure rating IP
- IP44
- Enclosure rating Nema (~)
- 2
- Oil free refrigerants
- R134a; R513A; R515B
- Other RoHS documentation
- Saudi Arabia RoHS
- Pressure connection size
- 1/4
- Pressure connection standard
- DIN 8906
- Pressure connection type
- Flare
- Pressure Male/Female
- Male
- Pressure sensing element
- Bellows
Standards & Compliance
- Classification / Approval
- CE, EAC, UL, ATEX II 1G Ex ia IIC T4 Ga (Ex models), IECEx, DNV, LR
- HS Code
- 9031.80
Compatibility & Fitment
Standard 4-20mA output. Check pressure/temperature range and thread.
