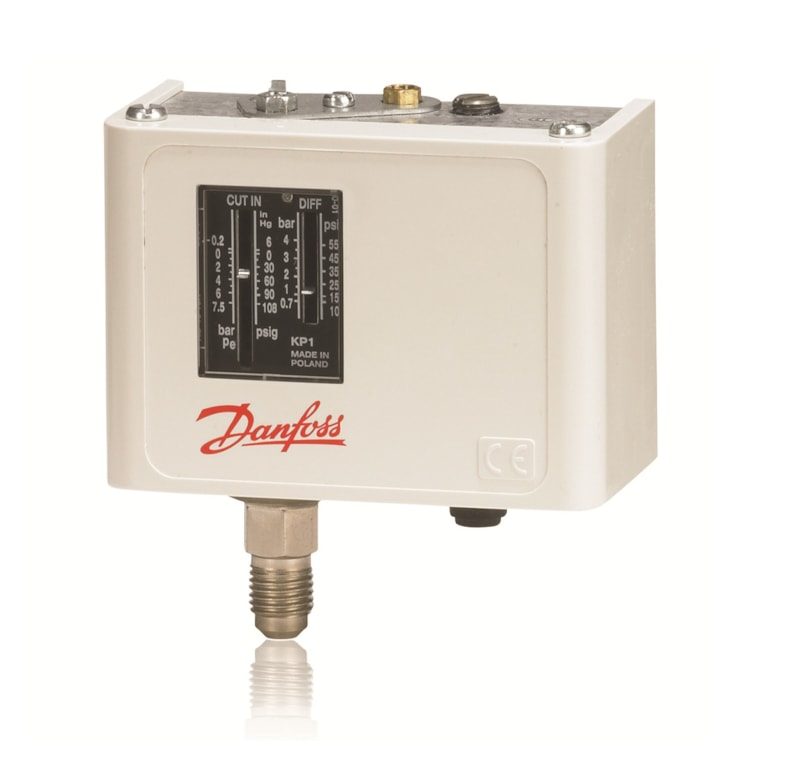

Danfoss KPI-35 LP switch
Part number060-110366Item numberDANFOSS-060-110366EAN / GTIN5702422017486HS code9031.80
CE, EAC, UL, ATEX II 1G Ex ia IIC T4 Ga (Ex models), IECEx, DNV, ABS, LR
Sensors & Instrumentation
Pressure Sensors
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss 060-110366 KPI-35 LP switch. Danfoss OEM. Danfoss pressure sensors for industrial and marine service. Compatible replacement for KPI-35 series.
Technical Specifications
- Approval
- CE, EAC, UL, ATEX II 1G Ex ia IIC T4 Ga (Ex models), IECEx, DNV, ABS, LR
- Standards
- IECEx, IEC 61298-2
- Approvals
- DNV, ABS, LR, CE
- HS code
- 9031.80
- Code number
- 060-110366
- EAN
- 5702422017486
- Net weight
- 0.291 Kilogram
- Amb. Temp. Note
- 80 °C/176 °F for max 120 min
- Application note
- Not applicable for liquid line
- CE mark
- Yes
- Contact function
- SPDT
- Contact rating
- AC15=10 A, 400 V; AC1=16 A, 400 V; AC3=16 A, 400 V; DC13=12 W, 220 V; LR=112 A, 400 V
- Differential [bar]
- 0.70 bar
- Electrical connection
- Rubber cable gland
- Electrical connection size
- 6-14 mm
- EN 60947 electrical properties
- Insulation: 400V; Pollution degree: 3; Rated impulse voltage: 4 kV; Short circuit prot, fuse: 16A
- EN 60947 wiring properties
- Flex, ferrules: 0.5-1.5 mm2; Flex, no ferrules: 0.7-2.5 mm2; Solid/stranded: 0.75-2.5 mm2
- Enclosure rating IP
- IP30
- Enclosure rating Nema (~)
- 1
- EU RoHS compliance
- Yes
- Fluid Group
- 1
- Lubricants compatibility
- Oilfree applications
- Max. test pressure [bar] Pe
- 20.0 bar
- Max. test pressure [psig]
- 290.0 psig
- Max. Working Pressure [bar]
- 17.0 bar
- Oil free refrigerants
- R134a; R513A; R515B
- Other RoHS documentation
- Saudi Arabia RoHS
- PED category
- IV
- Pressure connection size
- 1/4
- Pressure connection standard
- DIN 8906
- Pressure connection type
- Flare
- Pressure Male/Female
- Male
- Pressure sensing element
- Bellows
- Product accessories
- Switches accessories
- Product description
- Pressure Switch
- Product group
- Switches and thermostats
- Product line
- Air Conditioning and Commercial Refrigeration
- Product Type
- KP1
- Refrigerants
- R113; R1233zd(E); R1234yf; R1234yz; R1234ze(E); R124; R134a; R22; R404A; R407A; R407C; R407F; R407H; R422B; R422D; R438A; R448A; R449A; R449B; R450A; R452A; R454C; R455A; R507A; R513A; R515B
- Regulation range
- 27 inHg - 101 psig
- Reset function
- Manual Min
- Serviceable
- No
- UL approval file name
- E31024; MH27572
- UL approved refrigerants
- R113; R1234yf; R1234ze(E); R124; R134a; R22; R404A; R407A; R407C; R407F; R407H; R422B; R422D; R438A; R448A; R449A; R449B; R450A; R452A; R452B; R454A; R454C; R455A; R507A; R513A; R515B
- UL mark
- Yes
- Ambient temperature range [°C]
- -25 °C … 65 °C
- Regulation range [bar] Pe
- -0.90 bar … 7.00 bar
Standards & Compliance
- Classification / Approval
- CE, EAC, UL, ATEX II 1G Ex ia IIC T4 Ga (Ex models), IECEx, DNV, ABS, LR
- HS Code
- 9031.80
Compatibility & Fitment
Compatible replacement for KPI-35 series.
Not sure if it fits? Email sales@cballast.com with your equipment serial number or photos — we confirm fit before you order.
Product Documentation
Document preview: KP / KPI Pressure Switch Datasheet
