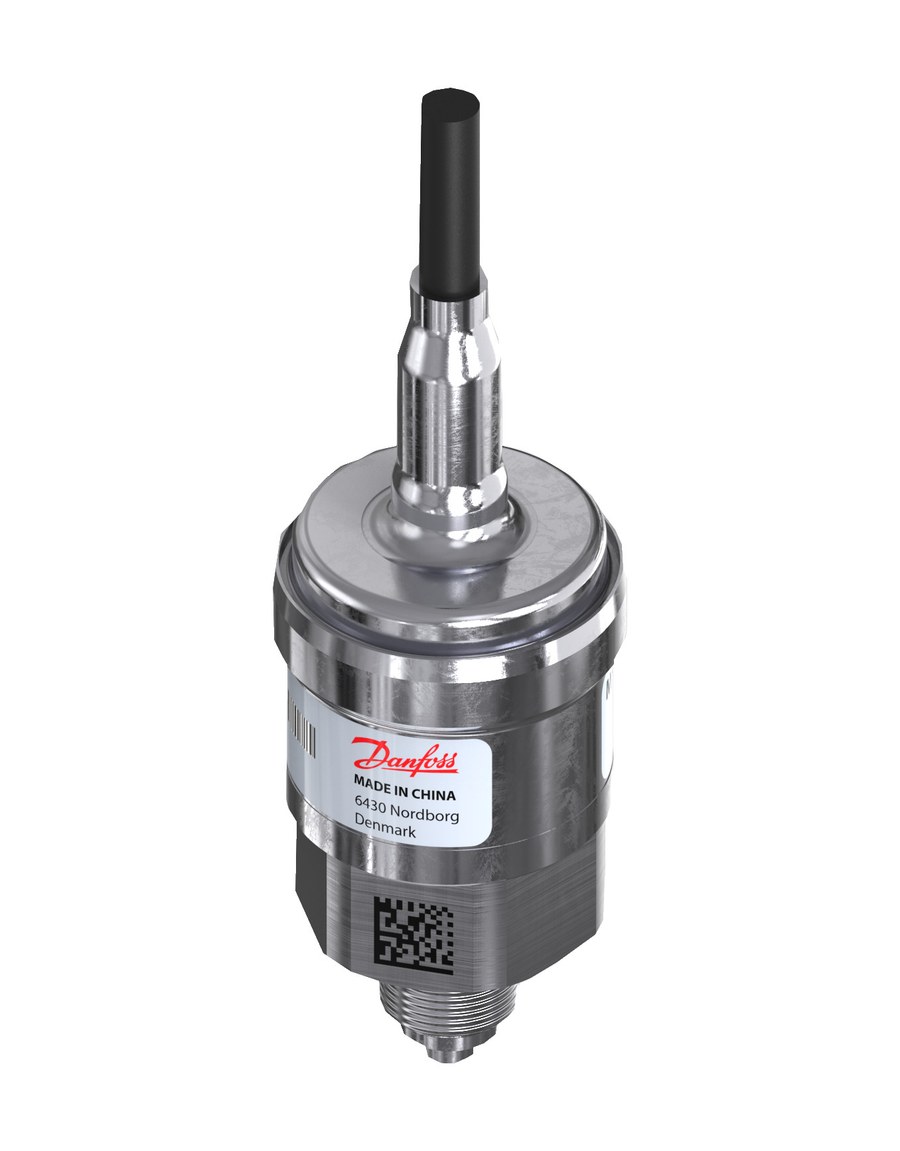

Danfoss MBS 3000 Pressure Transmitter 0-10 bar 4-20 mA G1/4 (060G1129)
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss 060G1129 MBS 3000 0-10 bar. Danfoss OEM. Danfoss pressure sensors for industrial and marine service. Standard 4-20mA output.
Technical Specifications
- Approval
- CE, EAC, UL, ATEX II 1G Ex ia IIC T4 Ga (Ex models), IECEx
- Standards
- IECEx, IEC 61298-2
- Approvals
- CE
- HS code
- 9031.80
- Code number
- 060G1129
- Product type
- MBS 3000
- Product group
- Sensors
- Medium temperature range
- -40 °C to 85 °C
- Ambient temperature range
- -30 °C to 85 °C
- UL mark
- Yes
- CE mark
- Yes
- REACH candidate-list substances
- Lead (CAS no. 7439-92-1)
- Net weight
- 0.225 kg
- EAN
- 5702423084241
- Accuracy, max.
- 1.00 %
- Accuracy, typical
- 0.5 %
- Adj. zero point and span
- No
- Cable length
- 79.00 in, 2.000 m
- Compensated temp. range
- 0 °C to 80 °C
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical conn. comments
- Screened
- Electrical connection
- Cable
- Enclosure rating IP
- IP67
- Flush diaphragm
- No
- High Clipping Level
- 22.40
- Identical product
- 060G4083
- In scope of WEEE
- Yes
- Intrinsically safe
- No
- Low Clipping level
- 3.60
- Negative / common
- Black
- Non-linearity BFSL
- 0.50 %
- Output signal
- Current, 4 mA to 20 mA
- Overload pressure max.
- 60.0 bar
- Positive / supply
- Brown
- Pressure connection HEX
- 27.0 mm
- Pressure connection size
- 1/4
- Pressure connection standard
- EN 837
- Pressure connection type
- G
- Pressure Male/Female
- Male
- Pressure range
- 0.00 bar to 10.00 bar
- Classification-society approval
- not listed in the manufacturer approval data for this code.
Standards & Compliance
- Classification / Approval
- CE, EAC, UL, ATEX II 1G Ex ia IIC T4 Ga (Ex models), IECEx
- HS Code
- 9031.80
Compatibility & Fitment
Standard 4-20mA output. Check pressure/temperature range and thread.
