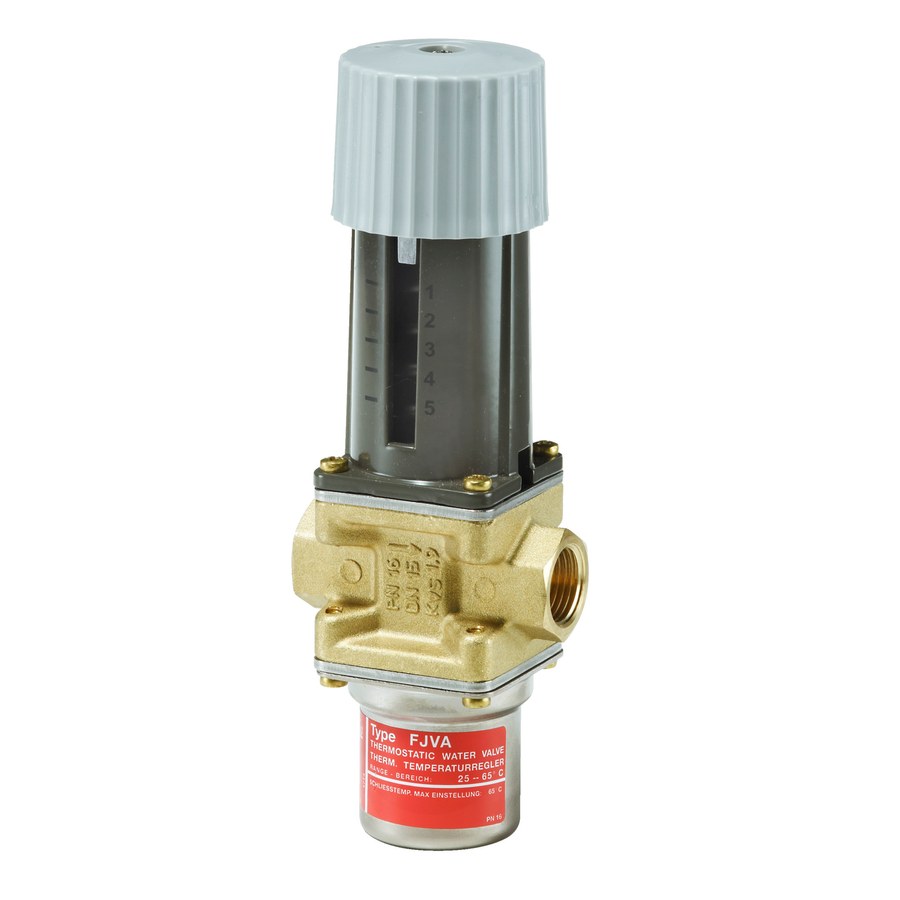

Danfoss FJVA 25 Thermostatically Operated Water Valve G 1 003N8216
Danfoss · HVAC & Refrigeration · Water Regulating Valves
Danfoss FJVA 25 thermostatically operated cooling-water valve, OEM P/N 003N8216. Self-acting valve that regulates the flow of condenser cooling water from the water temperature — the entire filled bellows element acts as the temperature sensor, so no separate capillary bulb is required. Opens on rising sensor temperature; fit in the cooling-water return line. Brass body, G (ISO 228-1) 1 in connection. Kv 5.5 m³/h; orifice 25 mm. Sensor temperature range 25 – 65 °C. Max working pressure 16 bar; media temperature -25 °C to 130 °C. Media: Fresh water, neutral brine. Confirm the setting range and code against the datasheet before ordering.
Specifications
- Part number
- 003N8216
- HS code
- 8481.80
- Material
- Valve housing hot-pressed brass; bellows and regulating parts stainless steel; adjustment spring steel
- Pressure rating
- 16 bar (232 psig) water side max working pressure
- Temperature range
- -25 °C to 130 °C
- Standard size
- FJVA 25
- Thread standard
- ISO 228-1
Compatibility
Fit in the cooling-water return line with the flow arrow in the direction of flow; the bellows senses the water temperature directly (no separate bulb). Opens on rising temperature. Confirm code, water connection and setting range before ordering.
Standards
Approvals
