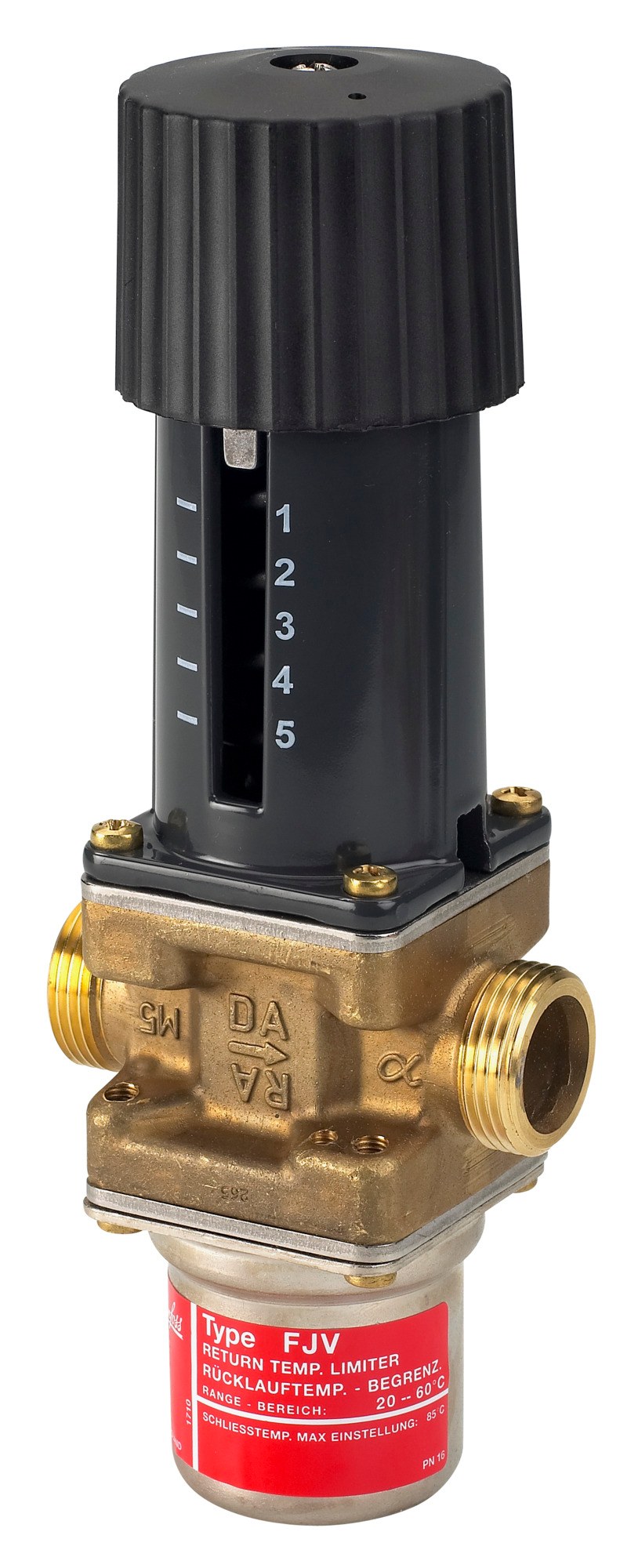

Danfoss FJV Self-Acting Temperature Limiter DN 20 PN 16
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss FJV self-acting temperature limiter, OEM P/N 003N8218. Direct-acting proportional temperature controller used to limit the temperature of circulation water in district heating and cooling circuits; the bellows element senses the medium temperature and throttles the valve. DN 20, PN 16, internal thread Rp 3/4 in (ISO 7/1). Kvs 3.4 m³/h; temperature setting range 50 – 90 °C, linear characteristic. Brass body (CuZn40Pb2, W.-Nr. 2.0402), NBR valve cone, Cr Ni steel valve seat (W.-Nr. 1.4301). Max differential pressure 10 bar; media temperature 2 – 130 °C. Approved to ETA VA 1.54/18952. Confirm the setting range and code against the datasheet before ordering.
Technical Specifications
- Brand
- Danfoss
- Part number
- 003N8218
- Model
- FJV self-acting temperature limiter
- Category
- HVAC & Refrigeration — Water Regulating Valves
- Version
- direct-acting proportional temperature limiter, internal thread
- Function
- temperature limiter; senses medium temperature via bellows element and throttles the valve to hold the set limit
- Nominal size
- DN 20
- Pressure class
- PN 16
- Connection
- internal thread Rp 3/4 in (ISO 7/1)
- Kvs
- 3.4 m³/h
- Temperature setting range
- 50 – 90 °C
- Flow characteristic
- linear
- Max differential pressure
- 10 bar
- Media temperature range
- 2 °C to 130 °C
- Ambient temperature range
- 0 °C to 70 °C
- Cavitation factor
- 0.4
- Body material
- brass CuZn40Pb2 (W.-Nr. 2.0402)
- Valve cone material
- NBR rubber
- Valve seat material
- Cr Ni steel (W.-Nr. 1.4301)
- Application
- district heating / cooling circulation water; glycolic water up to 30%
- Packing
- Single pack
- EAN
- 5702421100875
- Approvals
- ETA VA 1.54/18952, EAC, PED, EU RoHS, China RoHS
Standards & Compliance
- Size / Series
- DN 20
- Material
- Body brass CuZn40Pb2 (W.-Nr. 2.0402); valve cone NBR rubber; valve seat Cr Ni steel (W.-Nr. 1.4301)
- Thread Standard
- ISO 7/1 (Rp)
- Pressure Rating
- PN 16; max differential pressure 10 bar
- Temperature Range
- 2 °C to 130 °C (media)
- Classification / Approval
- ETA VA 1.54/18952, EAC, PED, EU + China RoHS
- HS Code
- 8481.80
Compatibility & Fitment
Fit in the water line with the flow arrow in the direction of flow. Self-acting (no external power). Set the temperature limit on the adjustment spindle. Confirm code and setting range before ordering.
