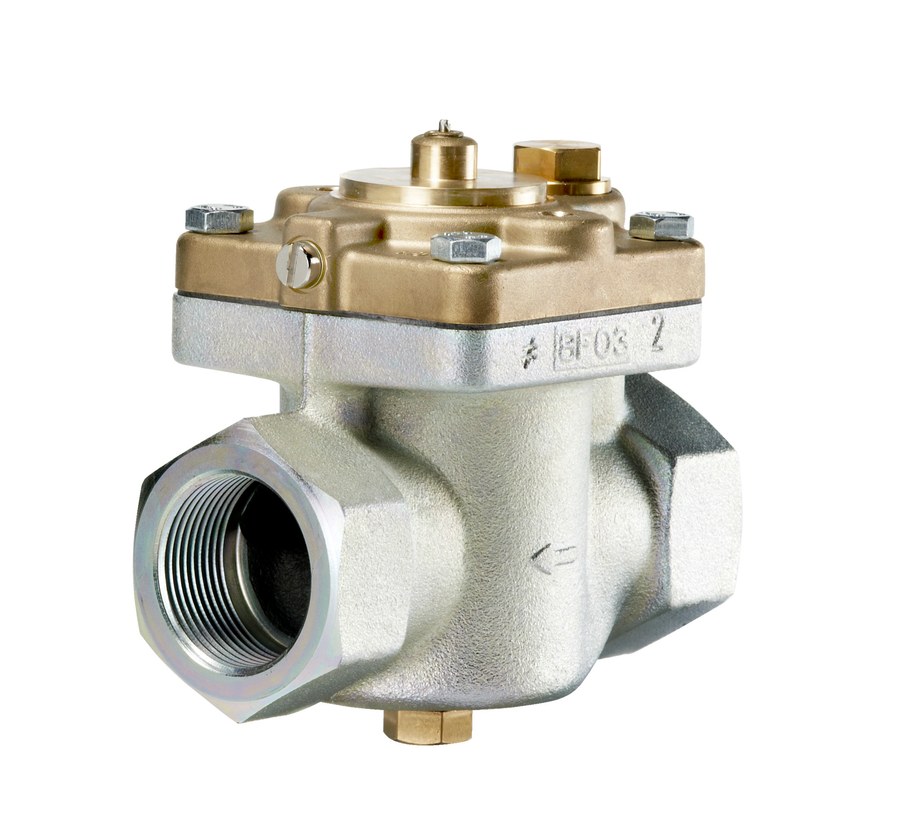

Danfoss WVH 1 1/2 in Valve Body for WVS / WVTS Water Regulating Valve
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss WVH 1 1/2 in cast-iron valve body, OEM P/N 016D5040, for the pilot-operated WVS/WVTS 40 water regulating valve. The WVH body is the throttling main valve of the Danfoss modular water-valve system: a WVS pressure pilot (opens on rising pressure) or a WVTS thermostatic pilot (opens on rising temperature) mounts on top to control condenser cooling-water flow. Orifice 40 mm; Kv 21 m³/h; port connection G (internal thread), ISO 228-1. Differential pressure range 0.5 – 4 bar; max working pressure 10 bar (145 psig); media temperature -25 °C to 90 °C; neutral media. Cast iron body. Supplied as single pack including valve body, flange bolts, flange gaskets and pilot-valve screws. Order the matching WVS or WVTS pilot separately.
Technical Specifications
- Brand
- Danfoss
- Part number
- 016D5040
- Type
- WVH valve body for WVS / WVTS water regulating valve
- Category
- HVAC & Refrigeration — Water Regulating Valves
- Nominal size
- WVS/WVTS 40 (1 1/2 in)
- Orifice size
- 40 mm
- Port connection
- G (internal thread), ISO 228-1
- Kv
- 21 m³/h
- Differential pressure range
- 0.5 – 4 bar
- Max working pressure
- 10 bar (145 psig)
- Test pressure
- 16 bar
- Media temperature range
- -25 °C to 90 °C (-13 °F to 194 °F)
- Body material
- Cast iron
- Media
- Neutral media (fresh water, neutral brine)
- Parts included
- Valve body, flange bolts, flange gaskets, screws for pilot valve
- Packing
- Single pack
- EAN
- 5702422023142
- Approvals
- EAC, PED, EU RoHS, China RoHS, LLC CDC TYSK
- Net weight
- 5.876 Kilogram
- Product group
- Water regulating valves
- Approval
- EAC
- China RoHS compliance
- Out of scope
- Connection Internal/External
- Internal
- Connection size [in]
- 1 1/2
- Connection standard
- ISO 228-1
- Connection type
- G
- Differential pressure [bar] [max]
- 4 bar
- Differential pressure [bar] [min]
- 0.5 bar
- Differential pressure [psi] [max]
- 58 psi
- Differential pressure [psi] [min]
- 7.2 psi
- EU RoHS compliance
- Out of scope
- Kv value [m³/h]
- 21 m³/h
- Max. test pressure [bar] Pe
- 16 bar
- Max. test pressure [psig]
- 232 psig
- Max. Working Pressure [bar]
- 10 bar
- Max. Working Pressure [psig]
- 145 psig
- Medium temperature range [°C] [max]
- 90 °C
- Medium temperature range [°C] [min]
- -25 °C
- Medium temperature range [°F] [max]
- 194 °F
- Medium temperature range [°F] [min]
- -13 °F
- Orifice size [mm]
- 40 mm
- Orifice size fraction [in]
- 1 1/2 in
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Used for product
- WVS 40
Standards & Compliance
- Size / Series
- WVS/WVTS 40
- Material
- Cast iron
- Thread Standard
- ISO 228-1
- Pressure Rating
- 10 bar (145 psig) max working pressure; 16 bar test pressure
- Temperature Range
- -25 °C to 90 °C
- Classification / Approval
- EAC, PED, EU + China RoHS, LLC CDC TYSK
- HS Code
- 8481.90
Compatibility & Fitment
Fit in the condenser cooling-water line with the flow arrow in the direction of flow. Mount a WVS pressure pilot or a WVTS thermostatic pilot on the body per the application. Body common to WVS/WVTS 40. Confirm code, connection and pilot type before ordering.
