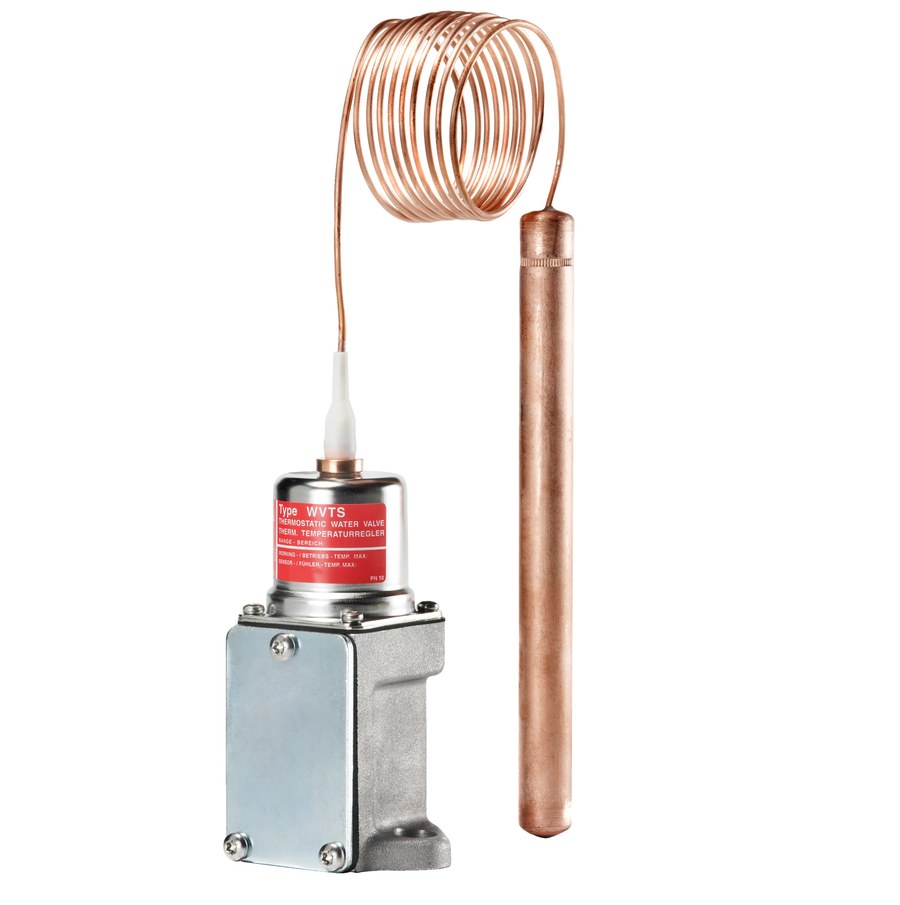

Danfoss WVTS Thermostatic Pilot 0 °C – 30 °C, 2 m Capillary, for Water Regulating Valve 016D1002
Danfoss · HVAC & Refrigeration · Water Regulating Valves
Danfoss WVTS thermostatic pilot, OEM P/N 016D1002, for the pilot-operated WVS/WVTS water regulating valve. The pilot mounts on the WVH valve body and opens the main valve on rising sensor temperature, modulating cooling-water flow to hold a temperature set point (self-acting, no external power). Temperature setting range 0 °C – 30 °C; charged sensor with 2000 mm capillary tube; maximum permissible sensor temperature 57 °C. Fits all valve sizes WVTS 32, 40, 50, 65, 80 and 100. Supplied as a control element with spring housing. Order the matching WVH valve body separately.
Specifications
- Part number
- 016D1002
- HS code
- 8481.90
- Material
- Charged temperature sensor with capillary; control element and spring housing
- Temperature range
- 0 °C – 30 °C setting range
- Standard size
- WVTS 32 – 100 (all sizes)
Compatibility
Mount on the matching WVH valve body (016D5032–5100). Place the sensor in the medium to be controlled. Opens on rising temperature — use for e.g. condenser water temperature control. Confirm setting range 0 °C – 30 °C and capillary length 2 m before ordering.
Approvals
