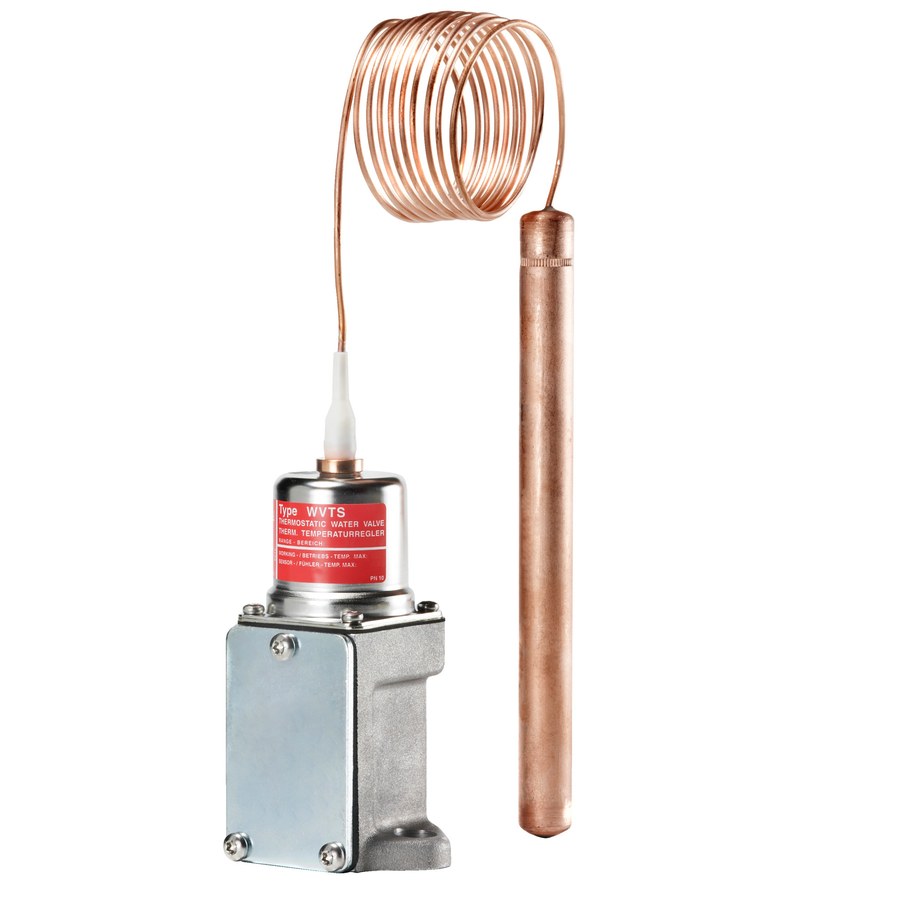

Danfoss WVTS Thermostatic Pilot 25 °C – 65 °C, 2 m Capillary, for Water Regulating Valve
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss WVTS thermostatic pilot, OEM P/N 016D1003, for the pilot-operated WVS/WVTS water regulating valve. The pilot mounts on the WVH valve body and opens the main valve on rising sensor temperature, modulating cooling-water flow to hold a temperature set point (self-acting, no external power). Temperature setting range 25 °C – 65 °C; charged sensor with 2000 mm capillary tube; maximum permissible sensor temperature 90 °C. Fits all valve sizes WVTS 32, 40, 50, 65, 80 and 100. Supplied as a control element with spring housing. Order the matching WVH valve body separately.
Technical Specifications
- Brand
- Danfoss
- Part number
- 016D1003
- Type
- WVTS thermostatic pilot for water regulating valve
- Category
- HVAC & Refrigeration — Water Regulating Valves
- Function
- opens the main valve on rising temperature (self-acting thermostatic pilot)
- Temperature setting range
- 25 °C – 65 °C
- Capillary tube length
- 2000 mm (2 m)
- Max. sensor temperature
- 90 °C
- Fits valve sizes
- WVTS 32, 40, 50, 65, 80, 100
- Parts included
- Control element, spring housing
- Media
- Water
- Packing
- Multi pack (8 pc)
- EAN
- 5702422012412
- Approvals
- EAC, PED (WVS / WVTS valve system)
- Note
- Sensor charge contains lead (REACH Candidate List, CAS 7439-92-1)
- Net weight
- 1.042 Kilogram
- Product group
- Water regulating valves
- Cap. tube length fraction [in]
- 78 47/64 in
- Capillary tube length [mm]
- 2000 mm
- China RoHS compliance
- Out of scope
- EU RoHS compliance
- Out of scope
- Max. sensor temperature [°C]
- 90 °C
- Max. sensor temperature [°F]
- 194 °F
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Temperature range [°C] [max]
- 65 °C
- Temperature range [°C] [min]
- 25 °C
- Temperature range [°F] [max]
- 149 °F
- Temperature range [°F] [min]
- 77 °F
- Used for product
- WVTS 100
Standards & Compliance
- Size / Series
- WVTS 32 – 100 (all sizes)
- Material
- Charged temperature sensor with capillary; control element and spring housing
- Temperature Range
- 25 °C – 65 °C setting range
- Classification / Approval
- EAC, PED (WVS / WVTS valve system)
- HS Code
- 8481.90
Compatibility & Fitment
Mount on the matching WVH valve body (016D5032–5100). Place the sensor in the medium to be controlled. Opens on rising temperature — use for e.g. condenser water temperature control. Confirm setting range 25 °C – 65 °C and capillary length 2 m before ordering.
Product Documentation
More from Danfoss
Danfoss
Danfoss WVTS Thermostatic Pilot 50 °C – 90 °C, 2 m Capillary, for Water Regulating Valve
016D1004
Danfoss
Danfoss WVTS Thermostatic Pilot 0 °C – 30 °C, 5 m Capillary, for Water Regulating Valve
016D1005
Danfoss
Danfoss WVTS Thermostatic Pilot 25 °C – 65 °C, 5 m Capillary, for Water Regulating Valve
016D1006
Danfoss
Danfoss WVTS Thermostatic Pilot 50 °C – 90 °C, 5 m Capillary, for Water Regulating Valve
016D1007
Danfoss
Danfoss AVTB (fast) DN 25 Self-Acting Temperature Controller 20 °C – 60 °C
003N8253
Danfoss
Danfoss AVTB DN 25 Self-Acting Temperature Controller 50 °C – 90 °C
003N8272
Danfoss
Danfoss Piston Kit for WVS 32 / WVTS 32 — Spare Part
016D0065
Danfoss

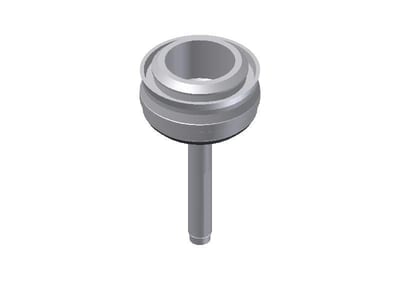

Danfoss Piston Kit for WVS 40 / WVTS 40 — Spare Part
