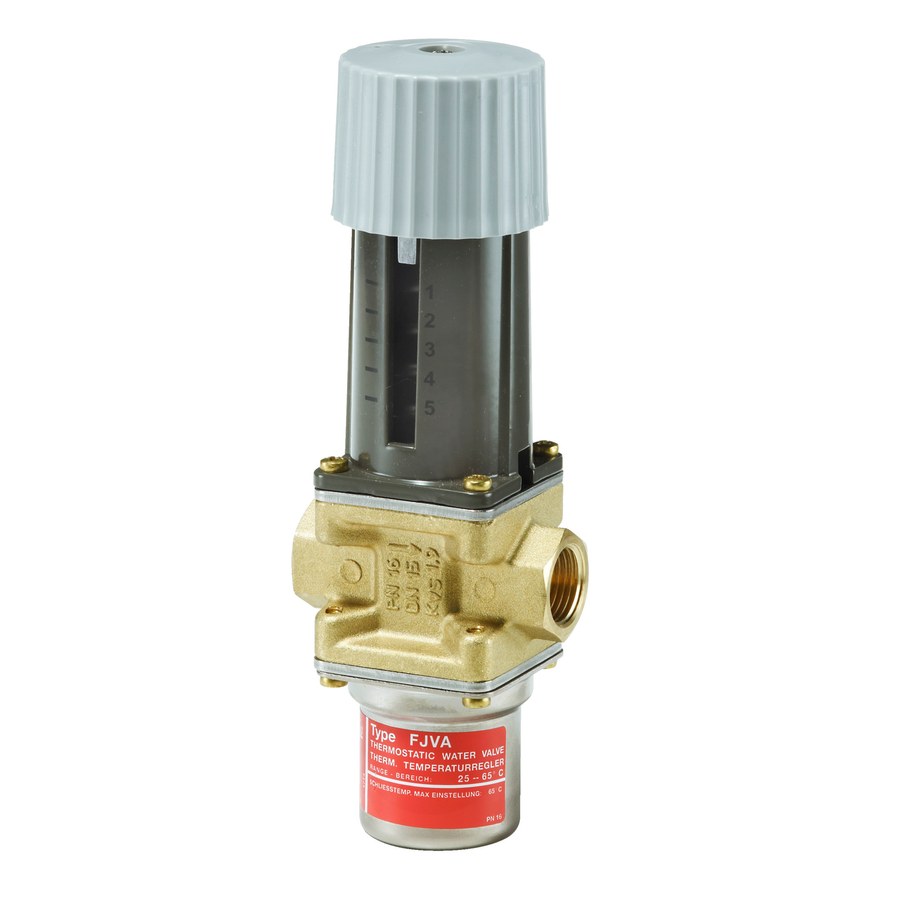

Danfoss FJVA 25 Thermostatically Operated Water Valve G 1 0–30 °C

Danfoss FJVA 25 thermostatically operated cooling-water valve, OEM P/N 003N8245. Self-acting valve that regulates the flow of condenser cooling water from the water temperature — the entire filled bellows element acts as the temperature sensor, so no separate capillary bulb is required. Opens on rising sensor temperature; fit in the cooling-water return line. Brass body, G (ISO 228-1) 1 in internal connection. Kv 5.5 m³/h; orifice 25 mm; bypass 2.5 mm. Low-range sensor temperature setting 0 – 30 °C. Max working pressure 16 bar; differential pressure 0 – 10 bar; media temperature –25 to 130 °C. Neutral media. Confirm the setting range and code against the datasheet before ordering.

Brand

Danfoss

Part number

003N8245

Model

FJVA 25 thermostatically operated water valve (low range)

Category

HVAC & Refrigeration — Water Regulating Valves

Version

self-acting condenser cooling-water valve, filled bellows sensor (no separate bulb), internal thread

Function

opens on rising sensor temperature; regulates condenser cooling-water flow

Nominal size

DN 25

Connection

internal thread G 1 in (ISO 228-1)

Orifice size

25 mm

Bypass diameter

2.5 mm

Kv

5.5 m³/h (Cv 6.4 gal/min)

Sensor temperature setting range

0 – 30 °C (32 – 86 °F)

Media temperature range

–25 to 130 °C (–13 to 266 °F)

Max working pressure

16 bar (232 psig)

Differential pressure range

0 – 10 bar (0 – 145 psi)

Body material

brass

Media

neutral media

Packing

Multi pack (10 pcs)

EAN

5702423023059

Approvals

EAC, PED, EU RoHS, China RoHS, LLC CDC TYSK

Size / Series

DN 25

Material

Brass body; filled bellows temperature element

Thread Standard

ISO 228-1 (G)

Pressure Rating

Max working pressure 16 bar; differential pressure 0 – 10 bar

Temperature Range

–25 to 130 °C (media); setting 0 – 30 °C

Classification / Approval

EAC, PED, EU + China RoHS, LLC CDC TYSK

HS Code

8481.80
