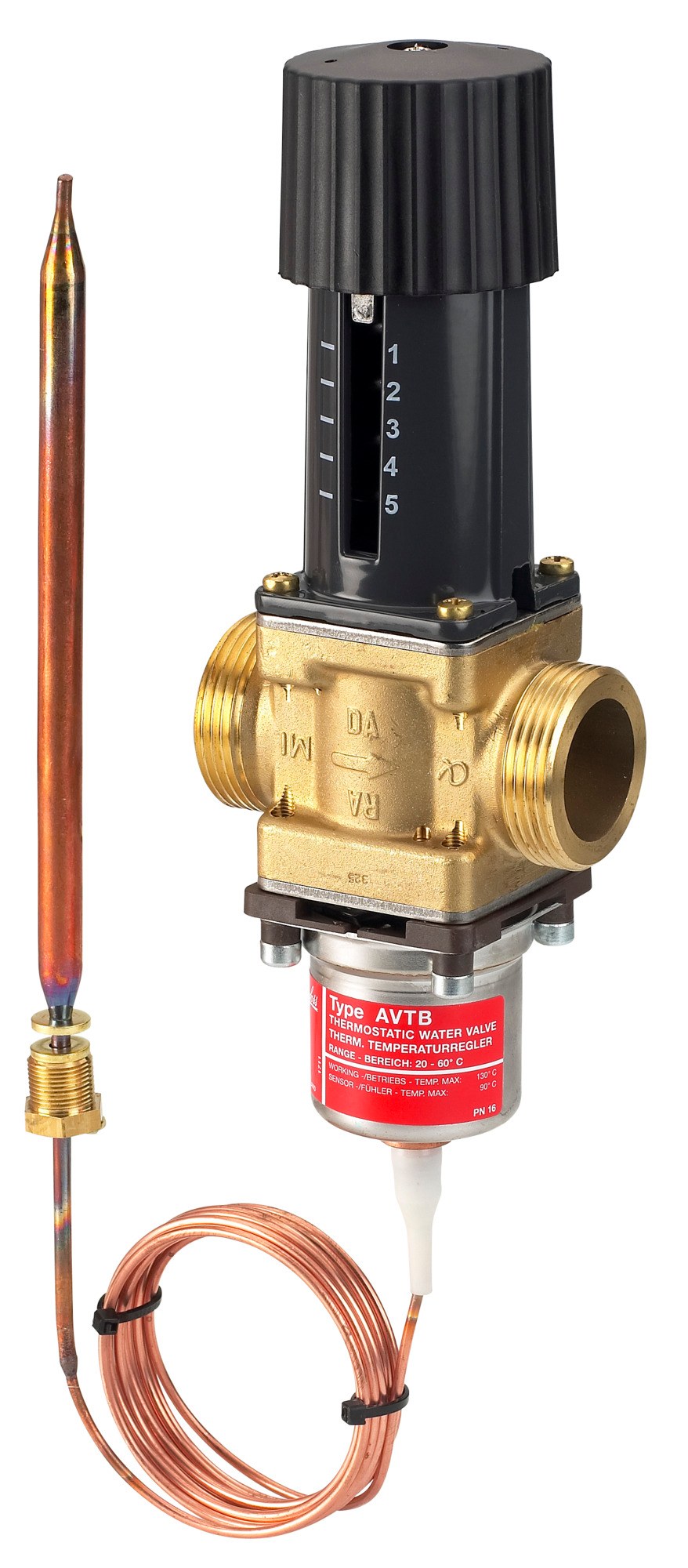

Danfoss AVTB (fast) Self-Acting Temperature Controller DN 20 20–60 °C 003N8230
Danfoss · HVAC & Refrigeration · Water Regulating Valves
Danfoss AVTB (fast) self-acting temperature controller, OEM P/N 003N8230. Proportional self-acting controller that regulates water temperature in district heating and cooling circuits; a remote 2 m capillary and charged sensor (Ø 9.5 mm × 180 mm) sense the medium temperature and throttle the valve, with a 3-second reaction time (fast version). DN 20, PN 16, internal thread Rp 3/4 in (ISO 7/1). Kvs 3.4 m³/h; temperature setting range 20 – 60 °C, linear characteristic. Brass body (CuZn40Pb2), NBR valve cone, Cr Ni steel valve seat, copper impulse tube and sensor. Max differential pressure 10 bar; media temperature 2 – 130 °C, max sensor temperature 90 °C. Approved to ETA VA 1.54/18952. Confirm the setting range and code against the datasheet before ordering.
Specifications
- Part number
- 003N8230
- HS code
- 8481.80
- Material
- Body brass CuZn40Pb2 (W.-Nr. 2.0402); valve cone NBR rubber; valve seat Cr Ni steel (W.-Nr. 1.4301); impulse tube/sensor copper (Mat.-Nr. 2.0090)
- Pressure rating
- PN 16; max differential pressure 10 bar
- Temperature range
- 2 °C to 130 °C (media); max sensor 90 °C
- Standard size
- DN 20
- Thread standard
- ISO 7/1 (Rp)
Compatibility
Mount the valve body in the water line (return version) and locate the sensor where it reads the controlled medium; the 2 m capillary connects the two. Self-acting (no external power). Set the temperature on the adjustment spindle. Confirm code and setting range before ordering.
Standards
Approvals
