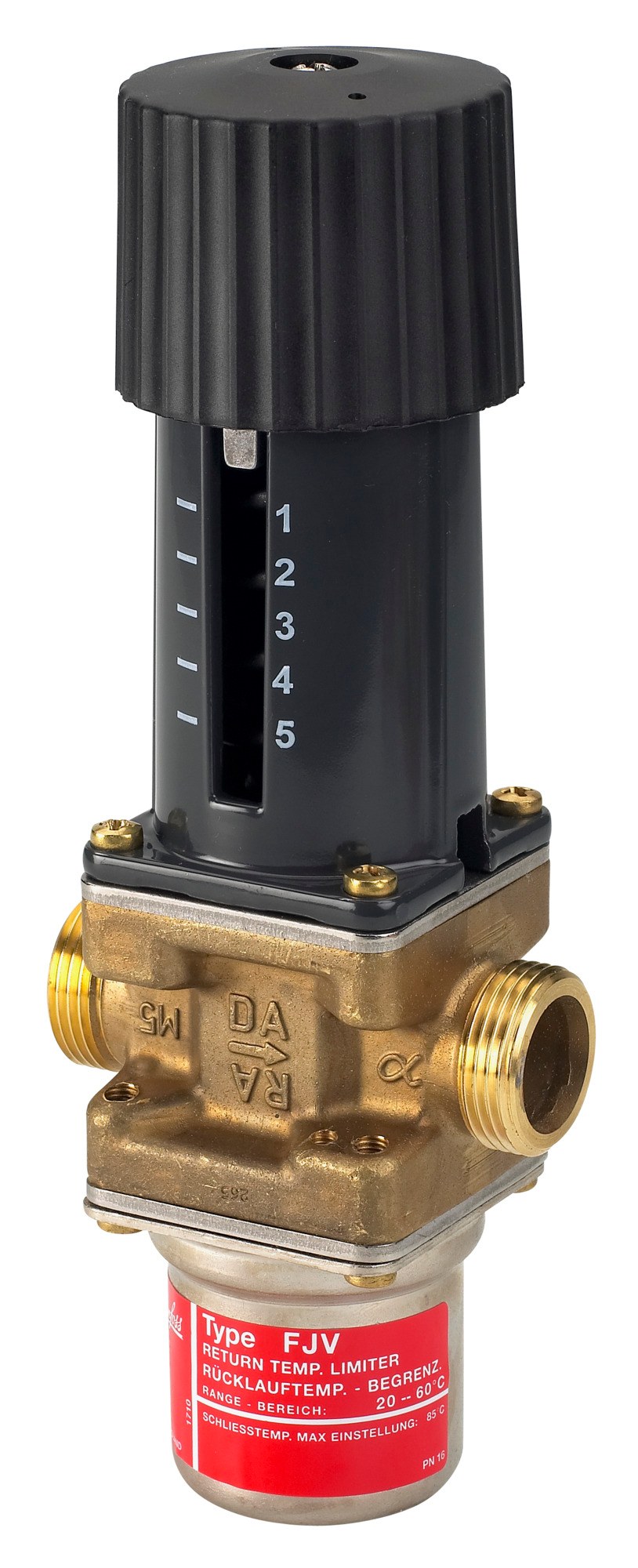

Danfoss FJV Self-Acting Temperature Limiter DN 15 PN 16

Danfoss FJV self-acting temperature limiter, OEM P/N 003N8217. Direct-acting proportional temperature controller used to limit the temperature of circulation water in district heating and cooling circuits; the bellows element senses the medium temperature and throttles the valve. DN 15, PN 16, internal thread Rp 1/2 in (ISO 7/1). Kvs 1.9 m³/h; temperature setting range 50 – 90 °C, linear characteristic. Brass body (CuZn40Pb2), NBR valve cone. Max differential pressure 10 bar; media temperature 2 – 130 °C. Approved to ETA VA 1.54/18952. Confirm the setting range and code against the datasheet before ordering.

Brand

Danfoss

Part number

003N8217

Model

FJV self-acting temperature limiter

Category

HVAC & Refrigeration — Water Regulating Valves

Version

direct-acting proportional temperature limiter, internal thread

Function

temperature limiter; senses medium temperature via bellows element and throttles the valve to hold the set limit

Nominal size

DN 15

Pressure class

PN 16

Connection

internal thread Rp 1/2 in (ISO 7/1)

Kvs

1.9 m³/h

Temperature setting range

50 – 90 °C

Flow characteristic

linear

Max differential pressure

10 bar

Media temperature range

2 °C to 130 °C

Ambient temperature range

0 °C to 70 °C

Body material

brass CuZn40Pb2 (W.-Nr. 2.0402)

Valve cone material

NBR rubber

Application

district heating / cooling circulation water

Packing

Single pack

EAN

5702421100868

Approvals

ETA VA 1.54/18952, EAC, PED, EU RoHS, China RoHS

Size / Series

DN 15

Material

Body brass CuZn40Pb2 (W.-Nr. 2.0402); valve cone NBR rubber

Thread Standard

ISO 7/1 (Rp)

Pressure Rating

PN 16; max differential pressure 10 bar

Temperature Range

2 °C to 130 °C (media)

Classification / Approval

ETA VA 1.54/18952, EAC, PED, EU + China RoHS

HS Code

8481.80
