WAGO
Power Supply; 24 VDC; fuse holder
Part number750-601EAN / GTIN4045454415297HS code8536.90
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
WAGO 750-601 Manufacturer description: Power Supply; 24 VDC; fuse holder. Power supply module, 24 V DC, with fuse holder.
Technical Specifications
- Manufacturer part number (MPN)
- 750-601
- EAN / GTIN
- 4045454415297
- HS code
- 8536.90
- Sales unit
- pcs
- Signal type
- Voltage
- Signal type (voltage)
- 24 VDC
- Supply voltage (system)
- 5 VDC; via data contacts
- Supply voltage (field)
- 24 VDC (-25 … +30 %); via power jumper contacts (power supply via CAGE CLAMP® connection; transmission (field-side supply voltage only) via spring contact
- Current carrying capacity (power jumper contacts)
- 6.3 A
- Number of outgoing power jumper contacts
- 3
- Fuse
- 5 x 20; T 6.3 A (not included)
- Indicators
- LED (A) red: defective fuse error; LED (B) green: power supply status
- Connectable conductor materials
- Copper
- Connection type
- Field supply
- Solid conductor
- 0.08 … 2.5 mm² / 28 … 14 AWG
- Fine-stranded conductor
- 0.08 … 2.5 mm² / 28 … 14 AWG
- Strip length
- 8 … 9 mm / 0.31 … 0.35 inches
- Connection technology
- field supply: 6 x CAGE CLAMP®
- Width
- 12 mm / 0.472 inches
- Height
- 100 mm / 3.937 inches
- Depth
- 69.8 mm / 2.748 inches
- Depth from upper-edge of DIN-rail
- 62.6 mm / 2.465 inches
- Mounting type
- DIN-35 rail
- Pluggable connector
- fixed
- Color
- light gray
- Housing material
- Polycarbonate; polyamide 6.6
- Fire load
- 1.136 MJ
- Weight
- 46.5 g
- Conformity marking
- CE
- Ambient temperature (operation)
- 0 … +55 °C
- Ambient temperature (storage)
- -40 … +85 °C
- Protection type
- IP20
- Pollution degree
- 2 per IEC 61131-2
- Operating altitude
- 0 … 2000 m / 0 … 6562 ft
- Mounting position
- Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom
- Relative humidity (without condensation)
- 95 %
- Vibration resistance
- 4g per IEC 60068-2-6
- Shock resistance
- 15g per IEC 60068-2-27
- EMC immunity to interference
- per EN 61000-6-2, marine applications
- EMC emission of interference
- per EN 61000-6-4, marine applications
- Exposure to pollutants
- per IEC 60068-2-42 and IEC 60068-2-43
- Permissible H2S contaminant concentration at a relative humidity 75 %
- 10 ppm
- Permissible SO2 contaminant concentration at a relative humidity 75 %
- 25 ppm
- Product Group
- 15 (I/O System)
- PU (SPU)
- 1 pcs
- Packaging type
- Box
- Country of origin
- DE
- Customs tariff number
- 85389091890
- UNSPSC
- 39,121,410
- eCl@ss 10.0
- 27-24-26-10
- eCl@ss 9.0
- 27-24-26-10
- ETIM 9.0
- EC001600
- ETIM 10.0
- EC001600
- ECCN
- NO US CLASSIFICATION
- CAS-No.
- 1303-86-2 | 1317-36-8 | 25550-51-0 | 7439-92-1
- REACH Candidate Strip Substance
- 4-Methyl-1,2-cyclohexanedicarboxylic anhydride | Diboron trioxide | Lead | Lead monoxide
- RoHS Compliance Status
- Compliant,With Exemption
- RoHS Exemption
- 6(c) | 7(a) | 7(c)-I | 7(c)-II
- SCIP notification number (Austria)
- 2867924b-70b7-4758-a590-f995d958ec6a
- SCIP notification number (Belgium)
- ae843cd9-d39a-4bbe-9894-c68457a9eb18
- SCIP notification number (Bulgaria)
- 61c61a79-8e0e-4929-af8c-4af4b8c8d75c
- SCIP notification number (Czech Republic)
- 9b5c752b-d91d-4798-b40e-8ed11b5f73cf
- SCIP notification number (Denmark)
- 67fa290f-4a2b-4e41-85dc-a74a69814714
- SCIP notification number (Finland)
- f703d88e-a5ec-4d15-894d-e643111621ff
- SCIP notification number (France)
- 86d221de-037f-47c8-be26-52afc5d1e379
- SCIP notification number (Germany)
- cf65bd97-f53e-4d45-84c8-c2c5ba75ff3b
- SCIP notification number (Hungary)
- 2837dc61-ff63-403a-ac95-75ce6542ff4e
- SCIP notification number (Italy)
- 48715baf-a476-42bc-9f1e-4b4b6ef4dd9c
- SCIP notification number (Netherlands)
- 24c0f9a0-9a85-4b06-b7c5-0009bbdcd098
- SCIP notification number (Poland)
- 16bc0647-06aa-40e8-802c-97f952cacac3
- SCIP notification number (Romania)
- 06246bf7-df3a-48b8-8716-56673a6a9fdd
- SCIP notification number (Sweden)
- 49a011c8-4aca-45fa-a47c-2d0352a23bcd
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4045454415297
- SAP 1000263304
- Code 8215665
Product Documentation
Document preview: Power Supply; 24 VDC; fuse holder (750-601) — Specification sheet
More from WAGO
WAGO

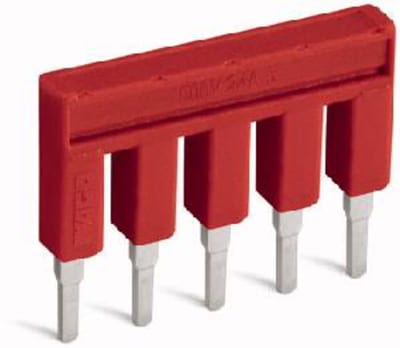

Cross-Connector 5-V 2002-405/000-005
WAGO
Relay socket; 4 changeover contacts
858-100
WAGO

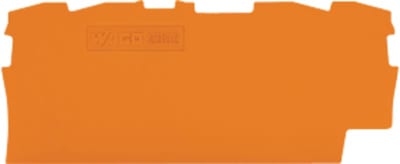

End and intermediate plate; 0.8 mm thick; orange (2002-1492)
WAGO

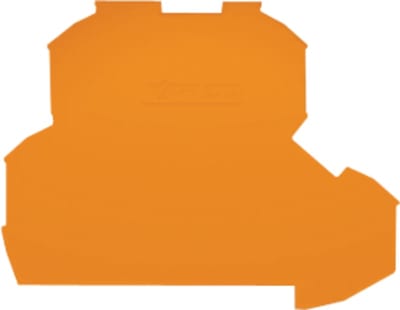

End and intermediate plate; 0.8 mm thick; orange (2002-2292)
WAGO

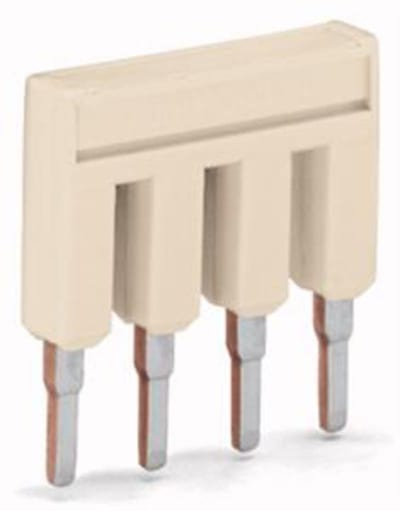

Jumper; 2-Way; insulated; light gray (2004-402)
WAGO

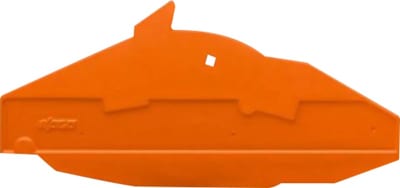

End and separator plate, for 2-Conductor longitudinal switching disconnect terminal block
282-360
WAGO

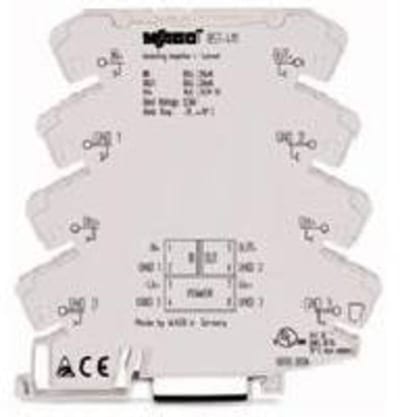

Isolation amplifier, Supply voltage: 24 VDC, 6 mm module width, 2,50 mm²
