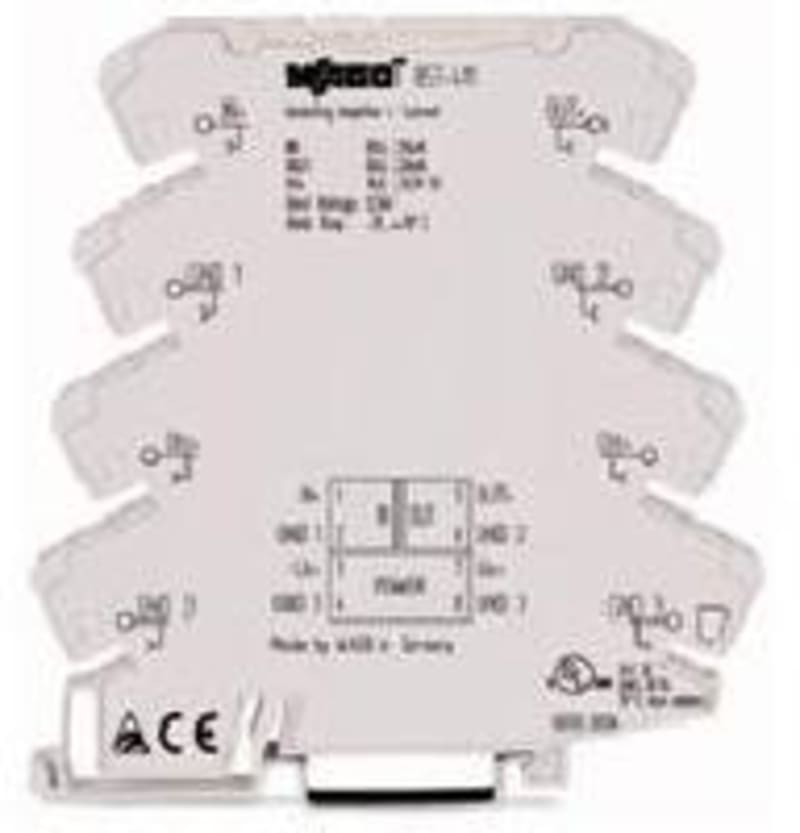

Isolation amplifier, Supply voltage: 24 VDC, 6 mm module width, 2,50 mm²
Part number857-411EAN / GTIN4045454471224HS code8543.70
Electrical Components
Terminal Blocks
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
WAGO 857-411 Manufacturer description: Isolation amplifier; Current input signal; Current output signal; Supply voltage: 24 VDC; 6 mm module width; 2.50 mm². Configurable signal converter.
Technical Specifications
- Manufacturer part number (MPN)
- 857-411
- EAN / GTIN
- 4045454471224
- Sales unit
- pcs
- Note
- The 3 (Us+), 7 (Us+), 4 (GND 3) and 8 (GND 3) connections are internally commoned.; Current carrying capacity between 3/4 and 7/8 connections: 1 A (max.)
- Rated Voltage
- 300 V
- Protection type
- IP20
- Connection technology
- Push-in CAGE CLAMP®
- Solid conductor
- 0.08 … 2.5 mm² / 28 … 14 AWG
- Fine-stranded conductor
- 0.34 … 2.5 mm² / 22 … 14 AWG
- Strip length
- 9 … 10 mm / 0.35 … 0.39 inches
- Width
- 6 mm / 0.236 inches
- Height
- 94 mm / 3.701 inches
- Depth from upper-edge of DIN-rail
- 97.8 mm / 3.85 inches
- Mounting type
- DIN-35 rail
- Insulation material (main housing)
- Polyamide (PA66)
- Flammability class per UL94
- V0
- Fire load
- 0.543 MJ
- Weight
- 36.1 g
- Ambient temperature (operation)
- -25 … +70 °C
- Ambient temperature (storage)
- -40 … +85 °C
- Processing temperature
- -25 … +50 °C
- Temperature range of connection cable
- ≥ (Tambient + 25 K)
- Relative humidity
- 5 … 95 % (no condensation permissible)
- Operating altitude (max.)
- 2000 m
- Conformity marking
- CE
- EMC immunity to interference
- EN 61000-6-2
- EMC emission of interference
- EN 61000-6-4
- Standards/specifications
- EN 61010-1 | UL 508
- Product Group
- 6 (INTERFACE ELECTRONIC)
- PU (SPU)
- 1 pcs
- Packaging type
- bag
- Country of origin
- DE
- Customs tariff number
- 85437090300
- UNSPSC
- 39,121,008
- eCl@ss 10.0
- 27-21-01-20
- eCl@ss 9.0
- 27-21-01-20
- ETIM 9.0
- EC002653
- ETIM 10.0
- EC002653
- ECCN
- NO US CLASSIFICATION
- CAS-No.
- 1303-86-2 | 1317-36-8 | 7439-92-1 | 75980-60-8
- REACH Candidate Strip Substance
- Diboron trioxide | Lead | Lead monoxide | Phosphine oxide, diphenyl(2,4,6-trimethylbenzoyl)-
- RoHS Compliance Status
- Compliant,With Exemption
- RoHS Exemption
- 7(c)-I
- SCIP notification number (Austria)
- e1a379a9-9a12-43c5-ba97-78cd431a5012
- SCIP notification number (Belgium)
- a3504f54-5762-4675-86e4-06b3a5cee394
- SCIP notification number (Bulgaria)
- 329d10ce-3573-4f6f-967f-f227f641d686
- SCIP notification number (Czech Republic)
- ccbda9d3-1048-44d4-b2ae-66419bd577c0
- SCIP notification number (Denmark)
- 2e5f76a3-2103-4880-b174-4de45b1ae8e4
- SCIP notification number (Finland)
- 32b6734a-1a59-449b-93fd-5bd651f6e1b1
- SCIP notification number (France)
- 162cb9fc-1c93-4dec-8237-9d60232fce19
- SCIP notification number (Germany)
- d027a0a8-794c-4140-8453-02e9ad261de5
- SCIP notification number (Hungary)
- e3e4fe82-951e-453c-8d9a-1e47f1e3b45c
- SCIP notification number (Italy)
- 69b859ca-7aa5-448e-9028-7034acee6015
- SCIP notification number (Netherlands)
- 4cbf5e0d-e6fb-4d36-8761-6888a0c18909
- SCIP notification number (Poland)
- 64e2711a-5664-4183-950a-3a8d9900da84
- SCIP notification number (Romania)
- 672a7a97-23dc-4e7b-9b3a-6261443cdd1a
- SCIP notification number (Sweden)
- da991a9a-9ad1-499b-aab2-d2200958a2cc
- MPN
- 857-411
- Rated operating frequency
- 100 Hz
- Rated supply voltage DC
- 16.8–31.2 V
- Number of input ranges 0 mA ... 20 mA
- 1
- Number of input ranges 4 mA ... 20 mA
- 1
- Number of output ranges 0 mA ... 20 mA
- 1
- Number of output ranges 4 mA ... 20 mA
- 1
- Number of channels
- 1
- Malfunction message output
- No
- Inherently safe according to EN 60947-5-6 NAMUR
- No
- Galvanic separation between inputs
- Yes
- Galvanic separation between input and output
- Yes
- Galvanic separation between output to output
- No
- Depth
- 94 mm
- Load
- 600–2000 Ohm
- Operating temperature
- -25–70 °C
- Temperature drift
- 0.01 %/K
- Type of electric connection
- Spring clamp connection
- Mounting method
- Snap mounting support rail
- Degree of protection (IP)
- IP20
Standards & Compliance
- HS Code
- 8543.70
Cross References
- EAN 4045454471224
- SAP 1000060511
- Code 8882025
Product Documentation
Document preview: Isolation amplifier, Supply voltage: 24 VDC, 6 mm module width, 2,50 mm² (857-411) — Specification sheet
