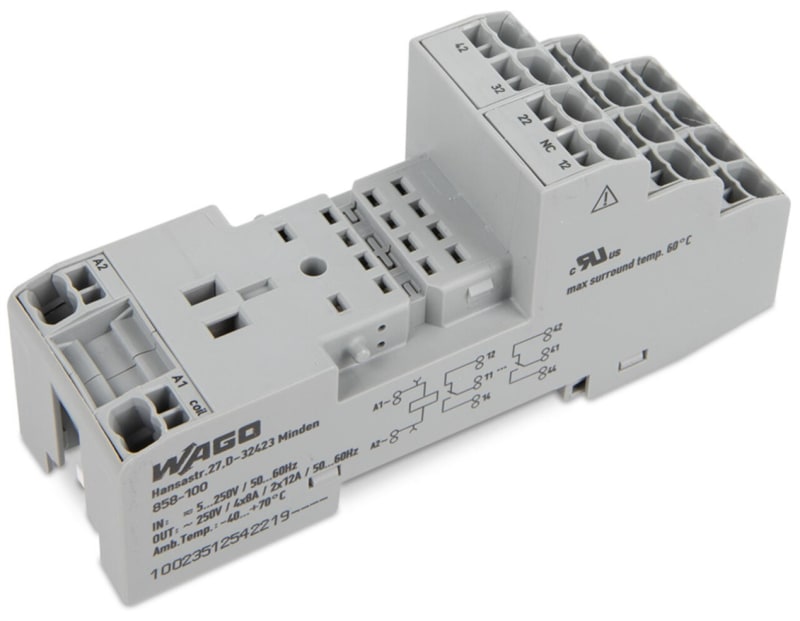

Relay socket; 4 changeover contacts
Pricing
Request a quote
We reply within 24 hours
Product Description
WAGO 858-100 Manufacturer description: Relay socket; 4 changeover contacts. Relay socket; 4 changeover contacts.
Technical Specifications
- Manufacturer part number (MPN)
- 858-100
- EAN / GTIN
- 4055143669078
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Note
- The specified technical data are maximum values. They may be limited by the accessories used.
- Rated Voltage
- 300 V
- Overvoltage category
- II
- Pollution degree
- 2
- Dielectric strength (control/load circuit) (AC, 1 min)
- 3 kVrms
- Dielectric strength (open contact) (AC, 1 min)
- 1 kVrms
- Insulation type (control/load circuit)
- Reinforced insulation (safe isolation)
- Insulation type (load/load circuit)
- Basic insulation
- Insulation type (between adjacent devices of the same type)
- Basic insulation
- Protection type
- IP20
- Connection technology
- Push-in CAGE CLAMP®
- Solid conductor
- 0.34 … 1.5 mm² / 22 … 16 AWG
- Fine-stranded conductor
- 0.34 … 1.5 mm² / 22 … 16 AWG
- Strip length
- 9 … 10 mm / 0.35 … 0.39 inches
- Width
- 31 mm / 1.22 inches
- Height
- 97 mm / 3.819 inches
- Depth from upper-edge of DIN-rail
- 39 mm / 1.535 inches
- Mounting type
- DIN-35 rail
- Fire load
- 1.012 MJ
- Weight
- 56.8 g
- Ambient temperature (operation at UN)
- -40 … +70 °C
- Ambient temperature (storage)
- -40 … +80 °C
- Processing temperature
- -25 … +50 °C
- Temperature range of connection cable
- ≥ (Tambient + 30 K)
- Relative humidity
- 5 … 95 % (no condensation permissible)
- Operating altitude (max.)
- 2000 m
- Standards/specifications
- EN 61010-2-201 | UR
- Product Group
- 6 (INTERFACE ELECTRONIC)
- PU (SPU)
- 10 pcs
- Packaging type
- box
- Country of origin
- CN
- Customs tariff number
- 85366990990
- UNSPSC
- 39,122,333
- eCl@ss 10.0
- 27-37-16-03
- eCl@ss 9.0
- 27-37-16-03
- ETIM 9.0
- EC001456
- ETIM 10.0
- EC001456
- ECCN
- NO US CLASSIFICATION
- RoHS Compliance Status
- Compliant,No Exemption
- MPN
- 858-100
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4055143669078
- SAP 1201001877
- Code 84345682
Product Documentation
