Cross-Connector 5-V 2002-405/000-005
Pricing
Request a quote
We reply within 24 hours
Product Description

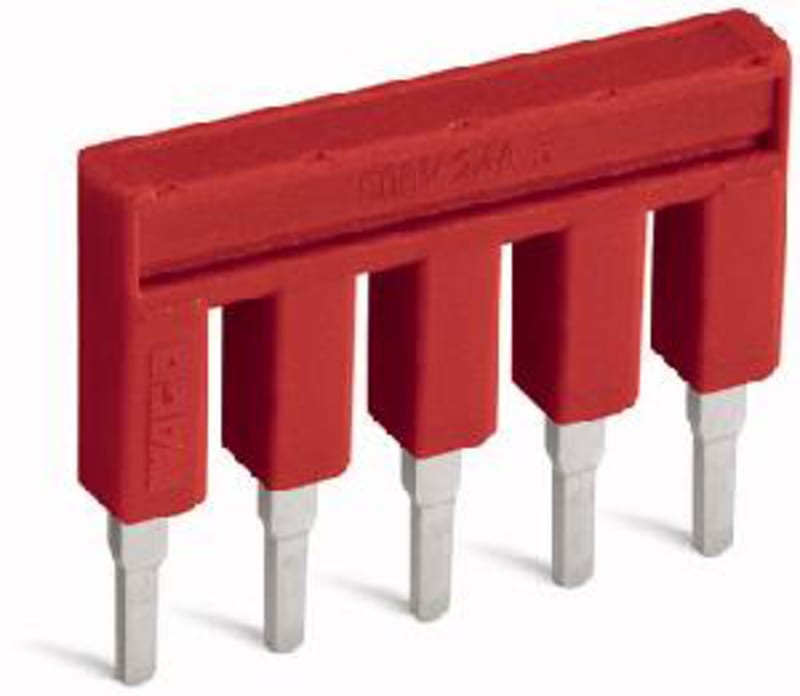

WAGO 2002-405/000-005 Insulated jumper link, 5-pole, 2,5mm², 25A, red.
Technical Specifications
- Manufacturer part number (MPN)
- 2002-405/000-005
- EAN / GTIN
- 4050821076025
- Sales unit
- pcs
- Package quantity
- 25 pcs
- Number of spacings
- 5 -fach
- Rated current
- 25 A
- Width
- 24.3 mm / 0.957 inches
- Height
- 4.1 mm / 0.161 inches
- Depth
- 19 mm / 0.748 inches
- Color
- light gray
- Fire load
- 0.016 MJ
- Product Group
- 22 (TOPJOB S)
- PU (SPU)
- 25 pcs
- Packaging type
- Bag
- Customs tariff number
- 85366990990
- UNSPSC
- 39,121,421
- eCl@ss 10.0
- 27-14-11-40
- eCl@ss 9.0
- 27-14-11-40
- ETIM 9.0
- EC000489
- ETIM 10.0
- EC000489
- ECCN
- NO US CLASSIFICATION
- RoHS Compliance Status
- Compliant,No Exemption
- Mounting method
- Pluggable
- Colour
- Red
- Model
- Transverse connector
- Insulated
- Yes
- Rated voltage
- 800 V
- Modular spacing
- 5.2 mm
- Number of bridged clamps
- 5
- With contact protection
- Yes
- Rated current In
- 25 A
- Explosion-tested version 'Ex e'
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.69
Cross References
- EAN 4050821076025
- SAP 1000340110
- Code 8373923
Product Documentation
