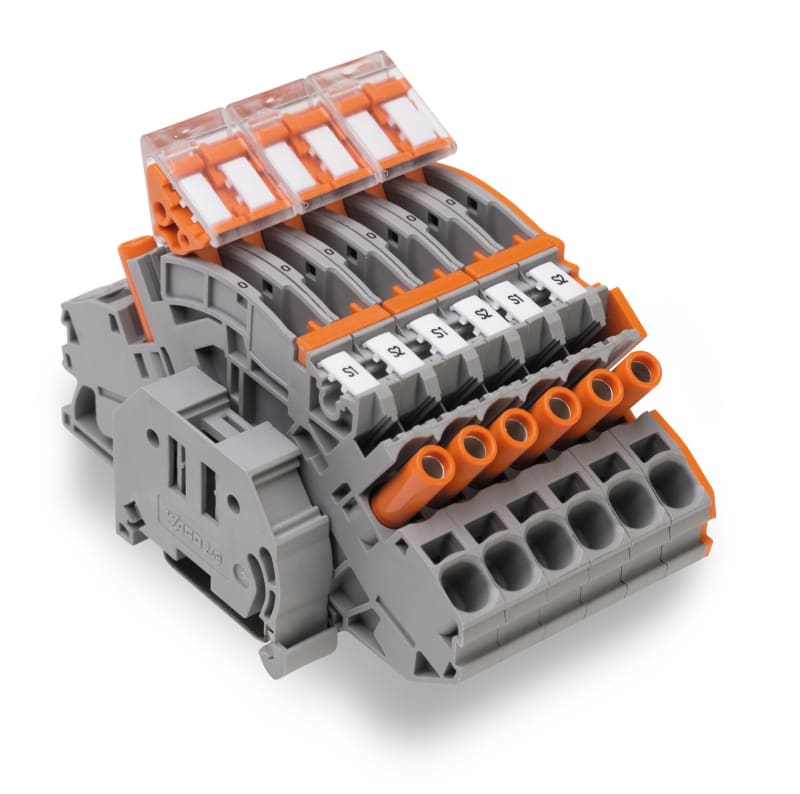

Compact terminal block; for current transformer circuit; 6,00 mm²; multicoloured
Pricing
Request a quote
We reply within 24 hours
Product Description
WAGO 2007-8875 Manufacturer description: Compact terminal block; for current transformer circuit; 6,00 mm²; multicoloured. Wago Terminal blocks for measuring transformers.
Technical Specifications
- Manufacturer part number (MPN)
- 2007-8875
- EAN / GTIN
- 4055143240628
- Sales unit
- pcs
- Number of levels
- 1
- Width
- 69.5 mm / 2.736 inches
- Height
- 99.6 mm / 3.921 inches
- Depth from upper-edge of DIN-rail
- 65.3 mm / 2.571 inches
- Module width
- 8 mm / 0.315 inches
- Mounting type
- DIN-35 rail
- Marking level
- Center/side marking
- Color
- multi-colored
- Material group
- I
- Insulation material (main housing)
- Polyamide (PA66)
- Flammability class per UL94
- V0
- Fire load
- 2.961 MJ
- Weight
- 196.3 g
- Test socket color
- orange
- Processing temperature
- -35 … +85 °C
- Continuous operating temperature
- -60 … +105 °C
- PU (SPU)
- 1 pcs
- Packaging type
- box
- Country of origin
- DE
- Customs tariff number
- 85369010000
- UNSPSC
- 39,121,410
- eCl@ss 10.0
- 27-14-11-47
- eCl@ss 9.0
- 27-14-11-47
- ETIM 9.0
- EC000276
- ETIM 10.0
- EC000276
- ECCN
- NO US CLASSIFICATION
- CAS-No.
- 7439-92-1
- REACH Candidate Strip Substance
- Lead
- RoHS Compliance Status
- Compliant,With Exemption
- RoHS Exemption
- 6(c)
- SCIP notification number (Austria)
- 07053267-9cc9-4e80-906b-02d5be984777
- SCIP notification number (Belgium)
- 685df096-f420-40b6-9f02-22ca2e2f68c5
- SCIP notification number (Bulgaria)
- 937ea640-7cef-460c-b21b-fe49b424eed0
- SCIP notification number (Czech Republic)
- 51ac0922-116a-4d07-bbaf-b9e41c419a7f
- SCIP notification number (Denmark)
- 4868a345-19b9-4cff-8eb6-7c0e558555e5
- SCIP notification number (Finland)
- abeb4353-af96-495f-90a7-c01747e86a10
- SCIP notification number (France)
- d9d45c9a-5682-4945-8c60-2d2312480da6
- SCIP notification number (Germany)
- a69750ee-6d53-4f74-a9b8-1c5cd9fd36fb
- SCIP notification number (Hungary)
- 2e0a58d0-c93f-4fb6-a60f-5e068332a48b
- SCIP notification number (Italy)
- 0c6a4315-bbcb-4f7e-b1e5-1ec21488e052
- SCIP notification number (Netherlands)
- 925aee0d-4f2e-498a-a3b2-d58c3de04c17
- SCIP notification number (Poland)
- c6f8d7e2-7ed2-4f73-a3e0-3c6f309da27f
- SCIP notification number (Romania)
- 19b7acdb-4cd4-4076-83fe-43da3ecdc81c
- SCIP notification number (Sweden)
- e5a18b15-4ef9-4f40-824e-ec7c83fee2e2
- MPN
- 2007-8875
- Core cross section
- 6 mm²
- With seal head
- No
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4055143240628
- SAP 1200073091
- Code 81921974
Product Documentation
