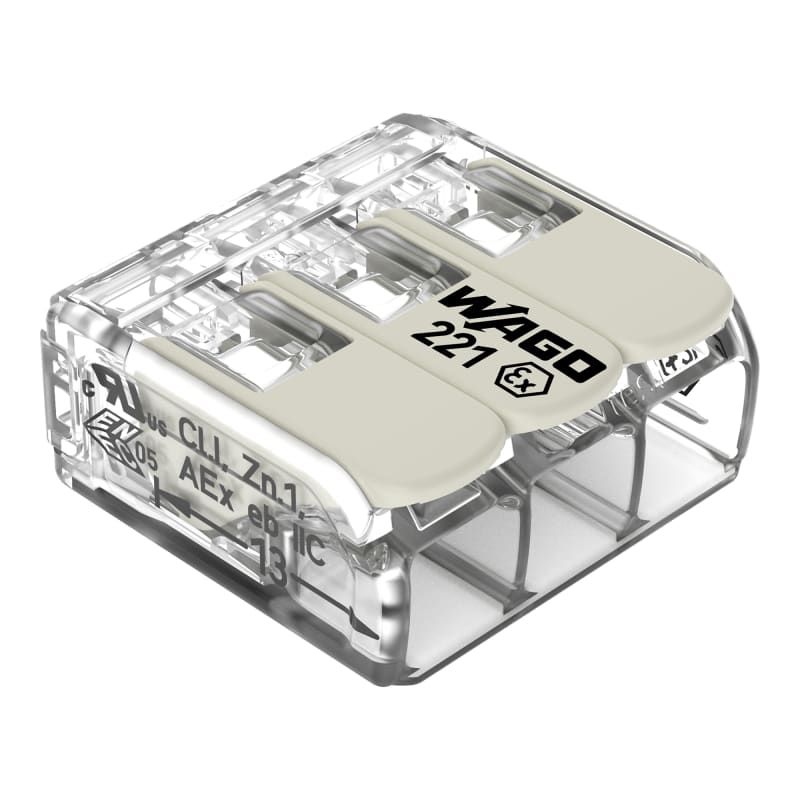

Splicing connector with levers, for all conductor types, max. 6 mm², 3-Conductor (221-683)
Pricing
Request a quote
We reply within 24 hours
Product Description
WAGO 221-683 Manufacturer description: Splicing connector with levers; for all conductor types; for Ex e applications; max. 6 mm²; 3-conductor; transparent housing; Operating temperature (max.): 105 °C; 6,00 mm²; transparent. WAGO 221 6mm2 EX.
Technical Specifications
- Manufacturer part number (MPN)
- 221-683
- EAN / GTIN
- 4055143860574
- Sales unit
- pcs
- Package quantity
- 300 pcs
- Clamping units
- 3
- Total number of potentials
- 1
- Width
- 22.9 mm / 0.902 inches
- Height
- 10.1 mm / 0.398 inches
- Depth
- 21.1 mm / 0.831 inches
- Color
- transparent
- Material group
- IIIa
- Insulation material (main housing)
- Polycarbonate (PC)
- Flammability class per UL94
- V2
- Fire load
- 0.065 MJ
- Actuator color
- light gray
- Weight
- 4.3 g
- Ambient temperature (storage)
- -40 … +60 °C
- Continuous operating temperature
- -55 … +105 °C
- PU (SPU)
- 300 (30) pcs
- Packaging type
- box
- Country of origin
- DE
- Customs tariff number
- 85369010000
- UNSPSC
- 39,121,409
- ETIM 9.0
- EC000446
- ETIM 10.0
- EC000446
- ECCN
- NO US CLASSIFICATION
- RoHS Compliance Status
- Compliant,No Exemption
- Conductor cross-section
- 6 mm²
- Nominal current
- 37 A
- Nominal voltage
- 440 V
- Colour
- Colourless
- Number of clamp positions
- 3
- Suitable for solid conductors
- Yes
- Conductor cross section solid (solid, stranded)
- 0.5–6 mm²
- AWG-range
- 10–20
- Nominal cross section
- 0.5–6 mm²
- Suitable for multi-wire conductors
- Yes
- Suitable for flexible conductors
- Yes
- Transparent
- Yes
- With operation lever
- Yes
- Min. AWG-size
- 20
- Max. AWG-size
- 10
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4055143860574
- SAP 1200574384
- Code 82933344
