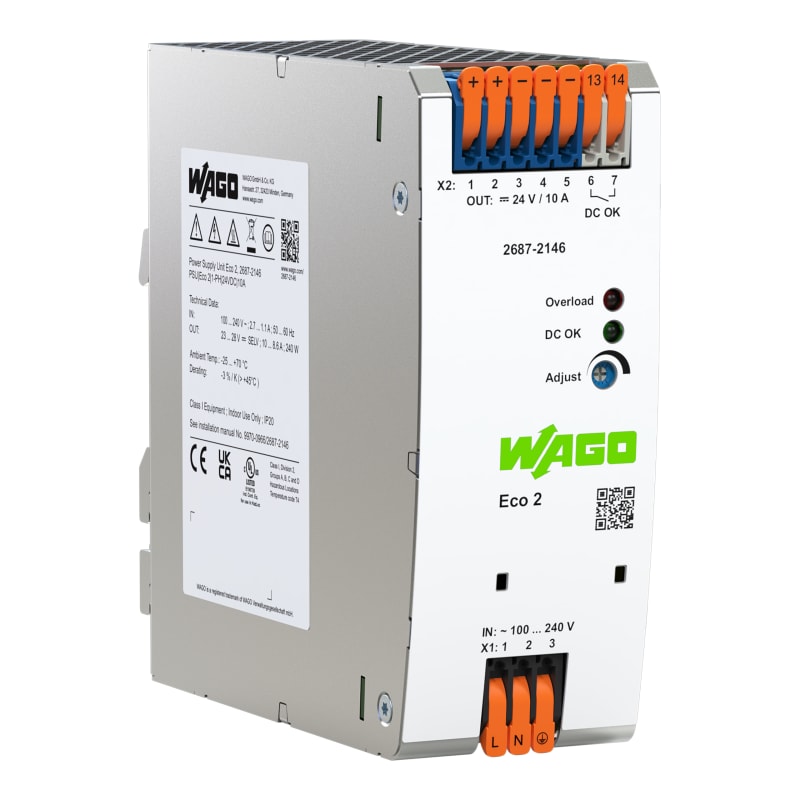

WAGO Eco 2 Single-Phase Power Supply 24 VDC 10 A with DC-OK Contact

WAGO 2687-2146 is a single-phase Eco 2 power supply delivering 24 VDC at 10 A with a DC-OK signalling contact. Rated to 3510 V primary-to-secondary isolation, IP20, protection class I and overvoltage category III, the 50 mm wide unit mounts on 35 mm DIN rail and operates from -25 to +70 C. Typical applications include control-cabinet 24 V supply for PLCs, sensors and field devices.

Manufacturer part number (MPN)

2687-2146

EAN / GTIN

4066966342451

Sales unit

pcs

Isolation voltage (pri.-sec., AC)

3,510 V

Isolation voltage (pri.-PE, AC)

2,200 V

Isolation voltage (sec.-PE)

0.5 kVDC

Isolation voltage (sec.-signal)

0.5 kVDC

Protection class

I

Protection type

IP20; per EN 60529

Overvoltage category

III (≤ 2000 m a.s.l.); II (> 2000 m a.s.l.)

Pollution degree

2

Short-circuit-protected

Yes

Open-circuit-proof

Yes

Parallel operation

Yes

Series operation

Yes

MTBF

> 2.000.000 h (per IEC 61709)

Width

50 mm / 1.97 inches

Height

130 mm / 5.118 inches

Depth from upper-edge of DIN-rail

130 mm / 5.118 inches

Mounting type

DIN-35 rail

Weight

800 g

Ambient temperature (operation)

-25 … +70 °C (Device starts at -40 °C (type-tested))

Ambient temperature (storage)

-40 … +85 °C

Relative humidity

5 … 96 % (no condensation permissible)

Derating

-3 %/K (> 45 °C)

Climatic category

3K3 (per EN 60721)

Operating altitude (max.)

5000 m

Conformity marking

CE

Standards/specifications

EN 61010-1 | EN 61010-2-201 | EN 61204-3 | UL 61010-1 | UL 61010-2-201 | UL 121201 (HazLoc)

PU (SPU)

1 pcs

Packaging type

Box

Country of origin

CN

Customs tariff number

85044083900

UNSPSC

39,121,004

ETIM 9.0

EC002540

ETIM 10.0

EC002540

ECCN

NO US CLASSIFICATION

RoHS Compliance Status

Compliant,No Exemption

Rated current

10 A

MPN

2687-2146

Voltage type (supply voltage)

AC

1st secondary output voltage

23–28 V

Max. output current 1

10 A

Secondary voltage adjustable

Yes

Nominal value output voltage 1

24 V

Nominal value output current 1

10 A

Short-circuit-proof

Yes

Rated supply voltage AC 50 Hz

100–240 V

Rated supply voltage AC 60 Hz

100–240 V

Output voltage stabilized

Yes

Power output

240 W

Stabilized

Yes

Type of electric connection

Spring clamp connection

Suitable for rail mounting

Yes

Wall mounting possible

No

Suitable for distribution board

No

Width in number of modular spacings

2

Direct mounting possible

No

Depth

130 mm

Suitable for safety functions

No

Degree of protection (IP)

IP20

Suitable for wall mounting

No

HS Code

8504.40
