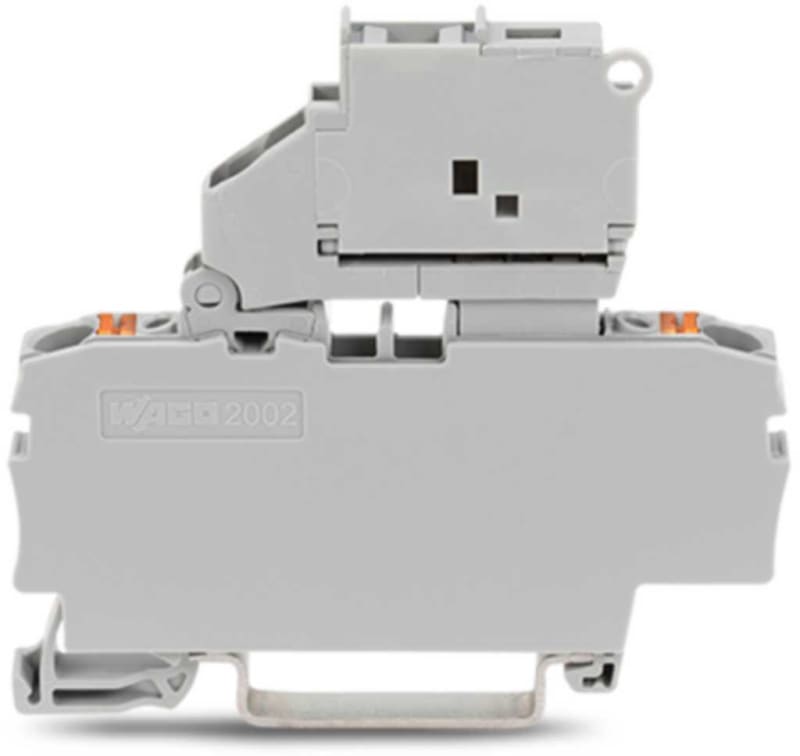

2-Conductor fuse terminal block, for 5 x 20 mm miniature metric fuse, 2.5 mm²
Pricing
Request a quote
We reply within 24 hours
Product Description
WAGO 2202-1611 Manufacturer description: 2-conductor fuse terminal block; with pivoting fuse holder; and end plate; for 5 x 20 mm miniature metric fuse; with push-button; without blown fuse indication; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; Push-in CAGE CLAMP®; 2,50 mm²; gray. 2-conductor fuse terminal;with swivelling fuse holder;and end plate;grey.
Technical Specifications
- Manufacturer part number (MPN)
- 2202-1611
- EAN / GTIN
- 4055143907910
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 50 pcs
- Clamping units
- 2
- Total number of potentials
- 1
- Number of levels
- 1
- Number of jumper slots
- 2
- Width
- 6.2 mm / 0.244 inches
- Height
- 66.1 mm / 2.602 inches
- Depth from upper-edge of DIN-rail
- 57.6 mm / 2.268 inches
- Mounting type
- DIN-35 rail
- Marking level
- Center/side marking
- Color
- gray
- Material group
- I
- Insulation material (main housing)
- Polyamide (PA66)
- Flammability class per UL94
- V0
- Fire load
- 0.256 MJ
- Actuator color
- orange
- Weight
- 13.5 g
- Processing temperature
- -35 … +85 °C
- Continuous operating temperature
- -60 … +105 °C
- PU (SPU)
- 50 pcs
- Packaging type
- box
- Country of origin
- DE
- Customs tariff number
- 85369095000
- UNSPSC
- 39,121,410
- ETIM 9.0
- EC000899
- ETIM 10.0
- EC000899
- ECCN
- NO US CLASSIFICATION
- RoHS Compliance Status
- Compliant,No Exemption
- Conductor cross-section
- 2.5 mm²
- MPN
- 2202-1611
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4055143907910
- SAP 1200854253
- Code 84068906
Product Documentation
