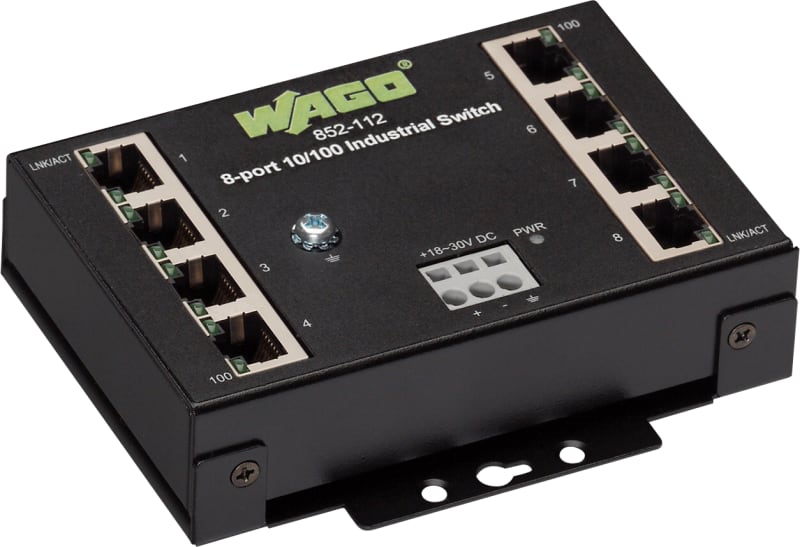

Industrial-ECO-Switch; 8-Port 100BASE-TX; black
Pricing
Request a quote
We reply within 24 hours
Product Description
WAGO 852-112 Manufacturer description: Industrial-ECO-Switch; 8-port 100Base-TX; black. 8-Port Ethernet Switch.
Technical Specifications
- Manufacturer part number (MPN)
- 852-112
- EAN / GTIN
- 4045454847586
- HS code
- 8536.90
- Sales unit
- pcs
- Switching mode
- Store-and-forward; non-blocking
- Number of 100 Mbps ports
- 8
- Communication standards
- IEEE 802.3 10BASE-T | IEEE 802.3u 100BASE-TX | IEEE 802.3x Flow Control
- MAC table (size)
- 2000 addresses
- Jumbo frame size
- 1536. Byte
- Supply voltage
- 18 … 30 VDC; 24 VDC (UL)
- Power consumption (max.)
- 3 W
- Current consumption (max.)
- 200 mA
- ESD (contact/air discharge)
- 4 KV / 8 KV
- Transmission rate
- Copper cable: 10/100 Mbit/s
- Transmission medium (communication/fieldbus)
- Copper cable: Cat. 5 or higher, 100 m maximum cable length
- Topology
- Star
- Indicators
- Device: LED (PWR) green: Power supply; per port: LED (100
- LNK/ACT) green
- Status 100 Mbps, LNK/ACT ports 1 … 8
- Connection technology
- communication/fieldbus: Copper cable: 8 x RJ-45
- Connection technology
- supply: 1 x Built-in PCB terminal block: 739-103
- Width
- 109.2 mm / 4.299 inches
- Height
- 73.8 mm / 2.906 inches
- Depth
- 24 mm / 0.945 inches
- Depth from upper-edge of DIN-rail
- 32 mm / 1.26 inches
- Mounting type
- Wall mounting (horizontal or vertical) | DIN-35 rail
- Color
- black
- Housing material
- Sheet steel
- Weight
- 415 g
- Ambient temperature (operation)
- -40 … +70 °C (UL max. +60 °C)
- Ambient temperature (storage)
- -40 … +80 °C
- Protection type
- IP30
- Pollution degree
- 2 per UL 61010
- Relative humidity (without condensation)
- 95 %
- Vibration resistance
- Per IEC 60068-2-6
- Shock resistance
- per IEC 60068-2-27
- EMC immunity to interference
- per EN 61000-6-2
- EMC emission of interference
- per EN 61000-6-4
- Product Group
- 27 (special components I/O)
- PU (SPU)
- 1 pcs
- Packaging type
- box
- Country of origin
- TW
- Customs tariff number
- 85176200000
- UNSPSC
- 43,222,612
- eCl@ss 10.0
- 19-17-01-30
- eCl@ss 9.0
- 19-17-01-06
- ETIM 9.0
- EC000734
- ETIM 10.0
- EC000734
- ECCN
- NO US CLASSIFICATION
- RoHS Compliance Status
- Compliant,No Exemption
- MPN
- 852-112
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4045454847586
- SAP 1000046797
- Code 8529571
Product Documentation
More from WAGO
WAGO

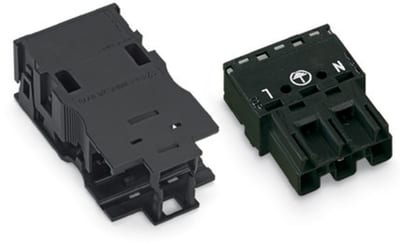

Plug (770-213/035-000)
WAGO

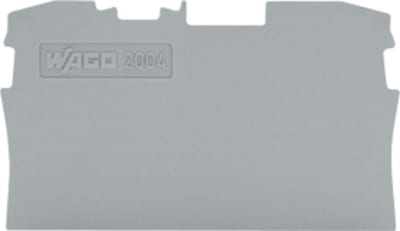

End and intermediate plate; 1 mm thick; gray (2004-1291)
WAGO

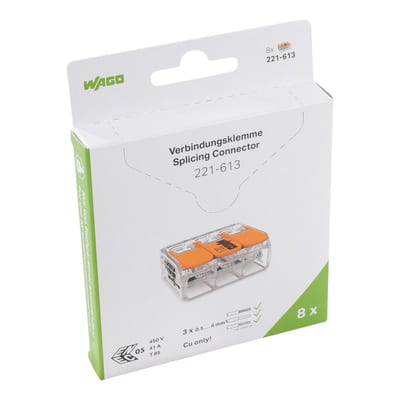

Wago Terminal block Blister (221-613/995-008)
WAGO
Flat cable; Eca; 5G 2.5 mm²; PVC; 3L + N + PE; 0.6/1 kV; 2,50 mm²; green
897-251
WAGO

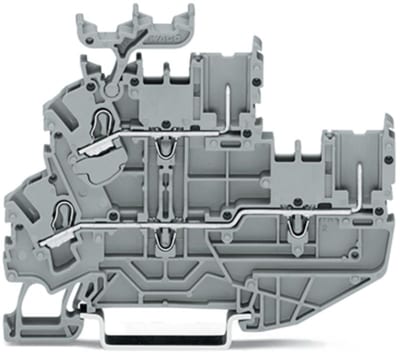

1-CONDUCTOR/1-PIN double deck receptacle terminal block, 2.5 mm², for DIN-rail 35 x 15 and 35 x 7.5
2022-2231
WAGO
3-Conductor through terminal block, 2.5 mm², for DIN-rail 35 x 15 and 35 x 7.5 (2002-1302)
WAGO
Plug; 4-Pole; Cod. B; gray
770-254
WAGO

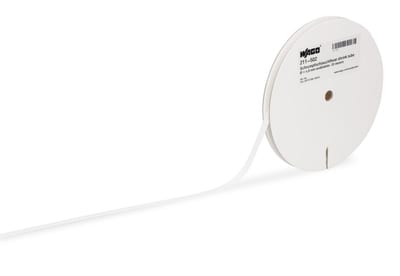

Shrink tube; for Smart Printer; Unshrunk diameter: 3.2 mm; white
