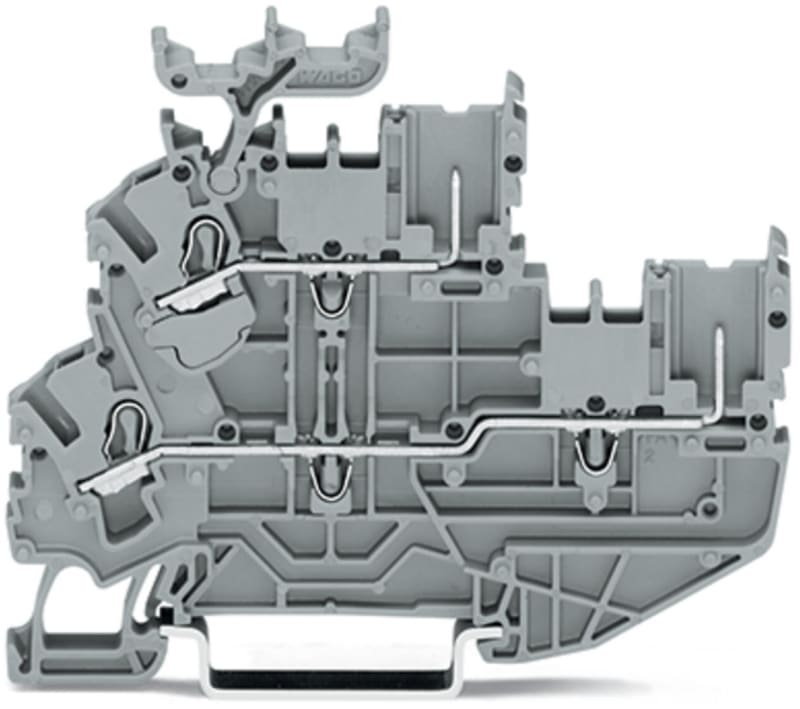

1-CONDUCTOR/1-PIN double deck receptacle terminal block, 2.5 mm², for DIN-rail 35 x 15 and 35 x 7.5
Pricing
Request a quote
We reply within 24 hours
Product Description
WAGO 2022-2231 Manufacturer description: 1-conductor/1-pin double deck receptacle terminal block; Through/through terminal block; 2.5 mm²; L/L; with marker carrier; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 2,50 mm²; gray. 1-conductor/1-pin toetasjes spor-DIN-rail terminal; Through-/through DIN-rail terminal; 2,5 mm².
Technical Specifications
- Manufacturer part number (MPN)
- 2022-2231
- EAN / GTIN
- 4055143089005
- Sales unit
- pcs
- Package quantity
- 50 pcs
- Clamping units
- 2
- Female plug slots
- 2
- Total number of potentials
- 2
- Number of levels
- 2
- Number of jumper slots
- 4
- Width
- 5.2 mm / 0.205 inches
- Height
- 80.1 mm / 3.154 inches
- Depth from upper-edge of DIN-rail
- 61.4 mm / 2.417 inches
- Potential marking
- L/L
- Design
- horizontal type
- Mounting type
- DIN-35 rail
- Marking level
- Side marking
- Color
- gray
- Material group
- I
- Insulation material (main housing)
- Polyamide (PA66)
- Flammability class per UL94
- V0
- Fire load
- 0.232 MJ
- Weight
- 12 g
- Processing temperature
- -35 … +85 °C
- Continuous operating temperature
- -60 … +105 °C
- Product Group
- 18 (X-COM-System)
- PU (SPU)
- 50 pcs
- Packaging type
- Box
- Country of origin
- CN
- Customs tariff number
- 85366990990
- UNSPSC
- 39,121,410
- eCl@ss 10.0
- 27-14-11-20
- eCl@ss 9.0
- 27-14-11-20
- ETIM 9.0
- EC000897
- ETIM 10.0
- EC000897
- ECCN
- NO US CLASSIFICATION
- RoHS Compliance Status
- Compliant,No Exemption
- Conductor cross-section
- 2.5 mm²
- MPN
- 2022-2231
- Suitable for conductor material
- Copper
- Connectable conductor cross section solid-core
- 0.25–4 mm²
- Connectable conductor cross section multi-wired
- 0.25–4 mm²
- Rated current In
- 24 A
- Rated voltage
- 690 V
- Type of electrical connection 1
- Insulation piercing connection
- Type of electrical connection 2
- Plug-in connection
- Number of clamp positions per level
- 2
- Mounting method
- DIN rail (top hat rail) 35 mm
- Material insulation body
- Thermoplastic
- Operating temperature
- -60–105 °C
- Depth
- 61.4 mm
- Explosion-tested version 'Ex e'
- No
- Closing plate required
- Yes
- Colour
- Grey
- Internally connected stages
- No
Standards & Compliance
- HS Code
- 8536.69
Cross References
- EAN 4055143089005
- SAP 1201001869
- Code 84345681
Product Documentation
More from WAGO
WAGO
3-Conductor through terminal block, 2.5 mm², for DIN-rail 35 x 15 and 35 x 7.5 (2002-1302)
WAGO
Plug; 4-Pole; Cod. B; gray
770-254
WAGO
Shrink tube; for Smart Printer; Unshrunk diameter: 3.2 mm; white
211-501
WAGO

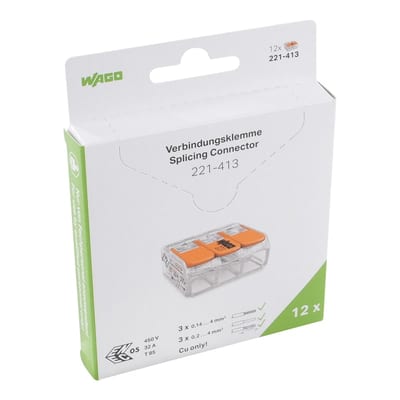

Wago Terminal block Blister (221-413/995-012)
